Home » Shop » hot sale » Century ECM27SQU 5.6″ Diameter Variable Speed Pool Pump Motor – ECM27SQU

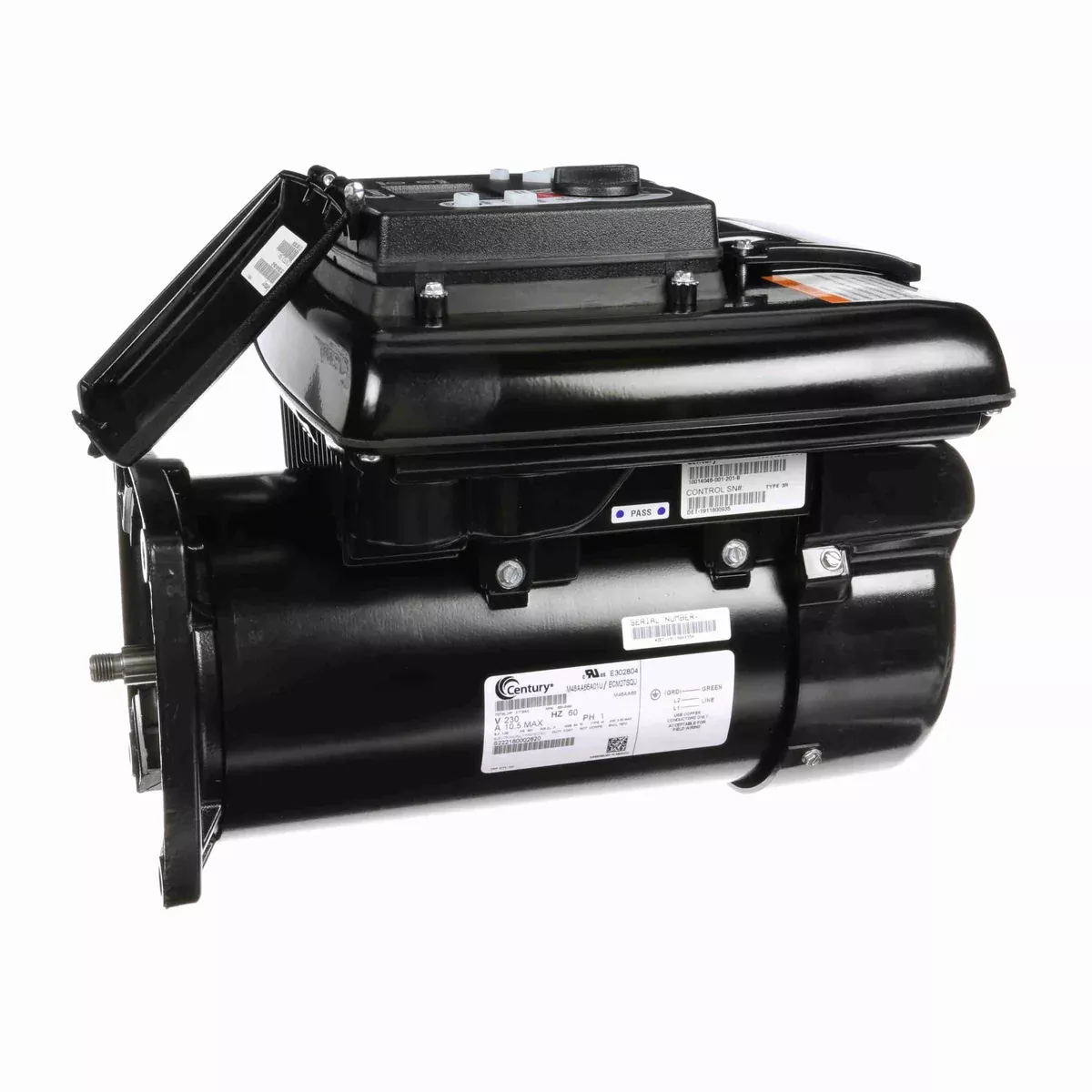

Century ECM27SQU 5.6″ Diameter Variable Speed Pool Pump Motor – ECM27SQU

Original price was: $360.68.Current price is: $206.38.

Sale!
SKU: ECM27SQU Category:
Share
  • WE’RE SORRY, THIS ITEM HAS BEEN DISCONTINUED AND IS NOT IN STOCK. PLEASE SEARCH FOR AVSS3 AS A COMPARABLE US MOTORS SUBSTITUTE.
  • Electronically Commutated Motor (ECM)
  • Integrated User Interface
  • Digital Inputs for Third Party Automation
  • Duty Cycle: Continuous
  • Enclosure Material: Rolled Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 48Y
  • HP: 2.7
  • Volts: 230
  • RPM: 600-3450
  • Amps: 10.5
  • Phase: 1
  • Service Factor: 1.0
  • Hz: 60
  • Thermal Protection: Automatic
  • Insulation Class: F
  • Manufacturer Model : ECM27SQU
  • Maximum Ambient Temperature: 50° C
  • Bearings: Ball
  • Rotation: CCW Pump End
  • Motor Diameter: 5.6″
  • Motor Shell Length: 9-1/8″
  • Mounting Orientation: Horizontal
  • Overall Length: 14.13″
  • Product Type: Permanent Magnet Motor
  • Rotation: CCW Shaft End
  • Service Factor: 1.0
  • Shaft Diameter: 5/8″
  • Shaft Length: 0.906
  • Freeze Protection
  • Ship Weight: 41 lbs.
