- Product Type: PSC (Permanent Split Capacitor)
- HP: 3/4
- RPM: 1075
- Volts: 208-230/460
- Amps: 5/2.5
- Hz: 60
- Phase: 1
- Frame: 48Y
- Enclosure Type: OAO (Open Air Over)
- Mounting: Cradle
- Motor Diameter: 5-5/8″
- Shaft Diameter: 1/2″
- Shaft Length: 5-1/2″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 60° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: 17.5MFD @ 370VAC (Included)
- FB1076V1 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48U91A01, Dayton 4MA35, Dayton 4M001
- Ship Weight: 27 lbs.

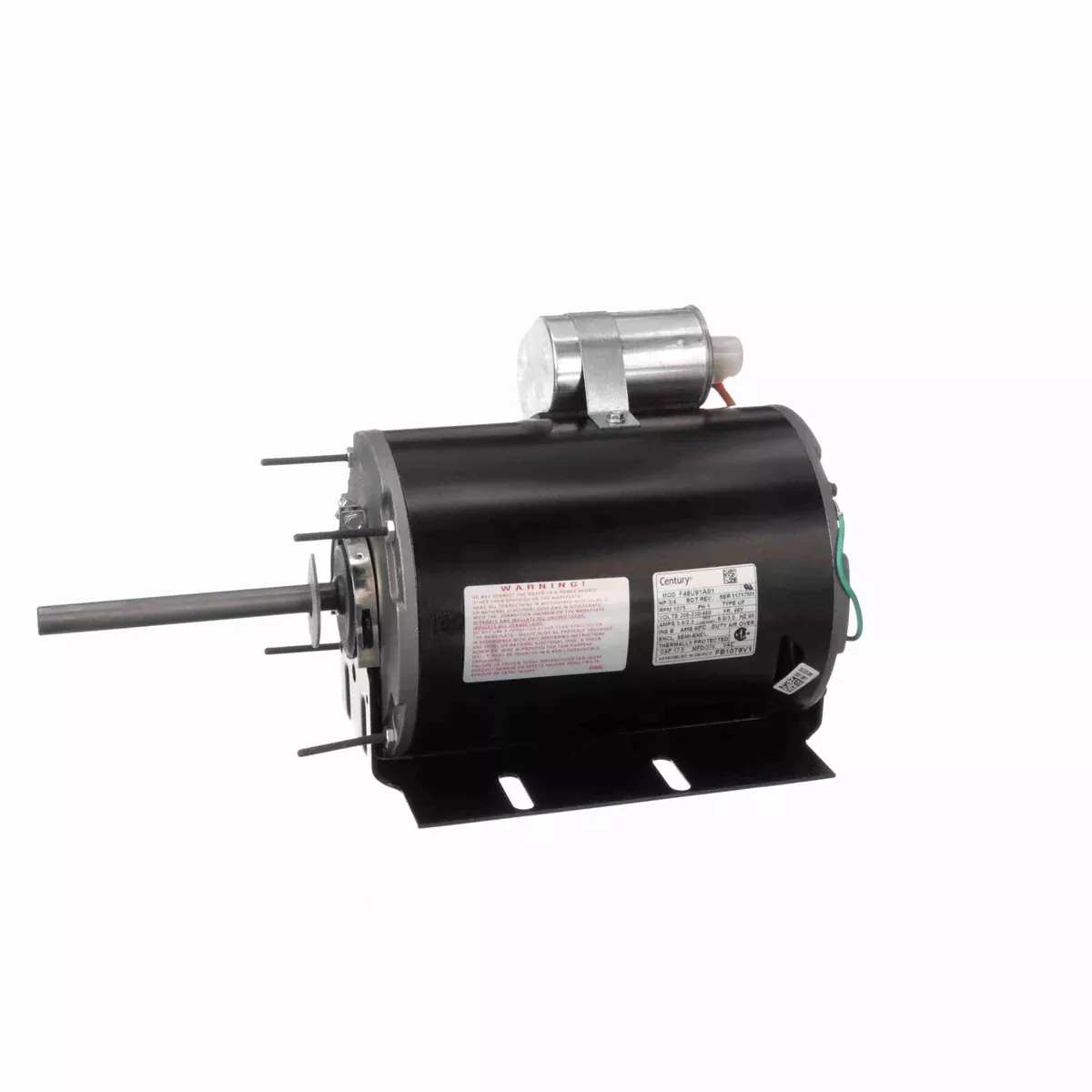

Century FB1076V1 5.6″ Diameter HVAC Condenser Fan Motor – FB1076V1
Original price was: $345.74.$215.99Current price is: $215.99.
