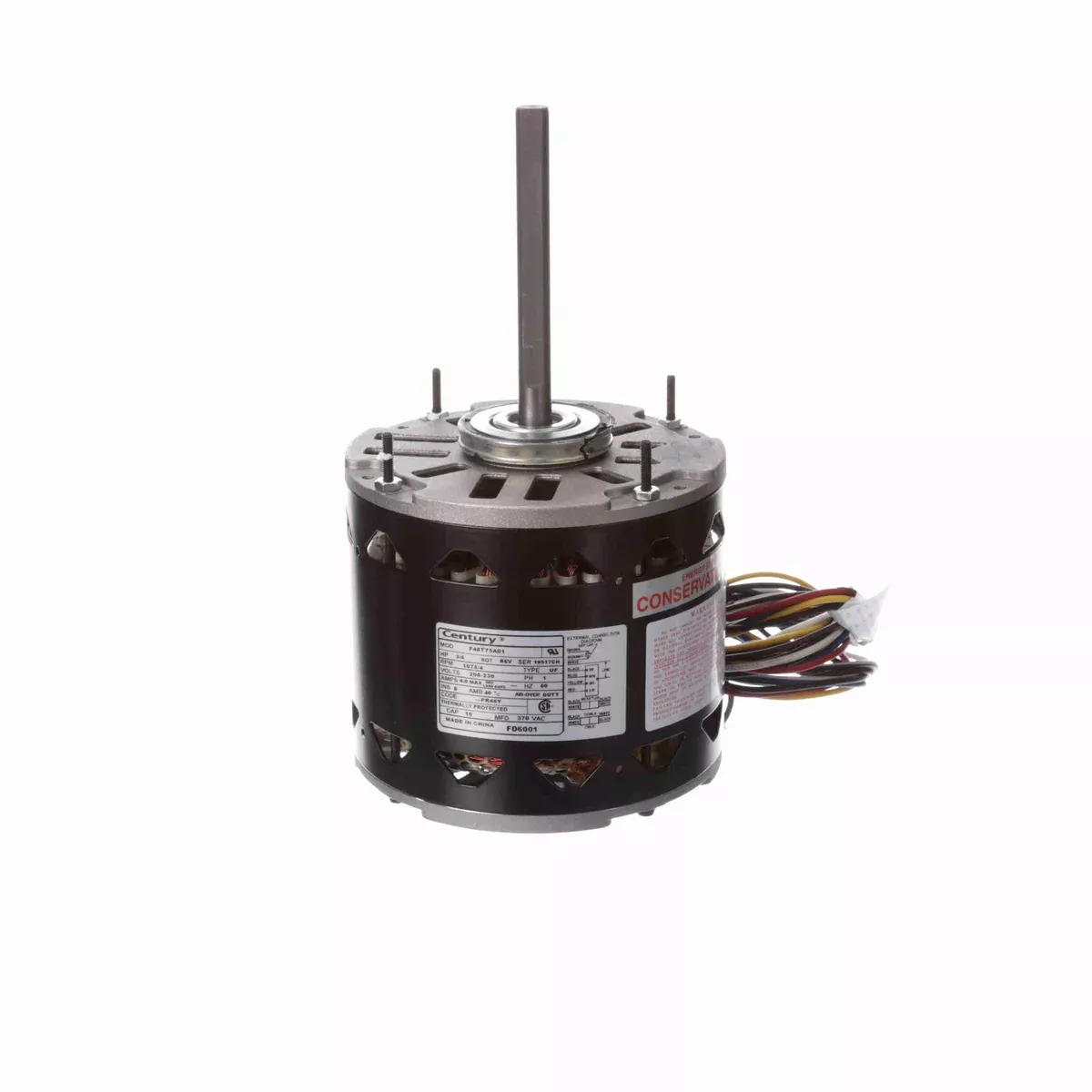

Century FD6001 5.6″ Diameter HVAC Direct Drive Fan Motor – FD6001

Original price was: $145.62.Current price is: $102.95.

Sale!
SKU: FD6001 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 3/4
  • RPM: 1075
  • Volts: 208-230
  • Amps: 4
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Band/Hole/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 5″
  • Rotation: Reversible
  • Number of Speeds: 4
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 10MFD/370VAC @ 1/2, 3/4 HP; 5MFD/370VAC @ 208V; 7.5MFD/370VAC @ 230V Required
  • FD6001 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48T75A01, Emerson 5471, Fasco D2833, GE 3467, GE 5KCP39NGU364, Dayton 1NZ25, Dayton 4ME28, Johnstone Supply S89-288, Johnstone Supply S89-742, Marathon X075
  • Rheem Mounting Holes In Shell
  • Energy Efficient
  • Ship Weight: 16 lbs.
