Home » Shop » hot sale » Century FDL6002A 5.6″ Diameter HVAC Direct Drive Fan Motor – FDL6002A

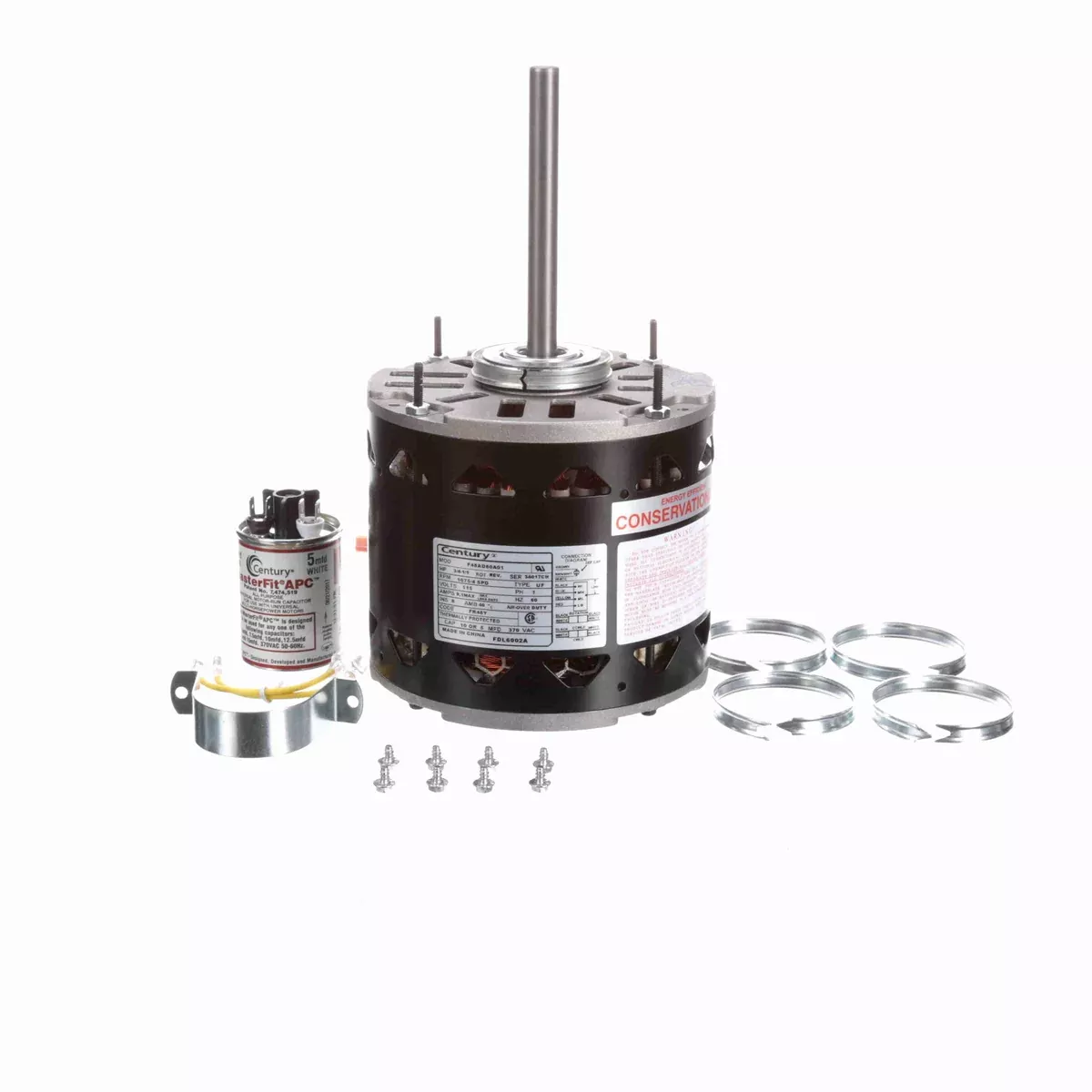

Century FDL6002A 5.6″ Diameter HVAC Direct Drive Fan Motor – FDL6002A

Original price was: $149.53.Current price is: $111.77.

Sale!
SKU: FDL6002A Category:
Share
  • FDL6002A replaces stock FDL6002
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/5, 3/4
  • RPM: 1075
  • Volts: 115
  • Amps: 9.1
  • Hz: 60
  • Phase: 1
  • Frame: 48
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Band/Hole/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 5″
  • Rotation: Reversible
  • Number of Speeds: 4
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 10MFD/370VAC @ 1/2, 3/4 HP; 5MFD/370VAC @ 208V; 7.5MFD/370VAC @ 230V (Included)
  • FDL6002A is the direct replacement for Fasco D2832. It is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48AD80A01, A.O. Smith FDL6002
  • Rheem Mounting Holes In Shell
  • 36″ Leads
  • Energy Efficient
  • Ship Weight: 16 lbs.
