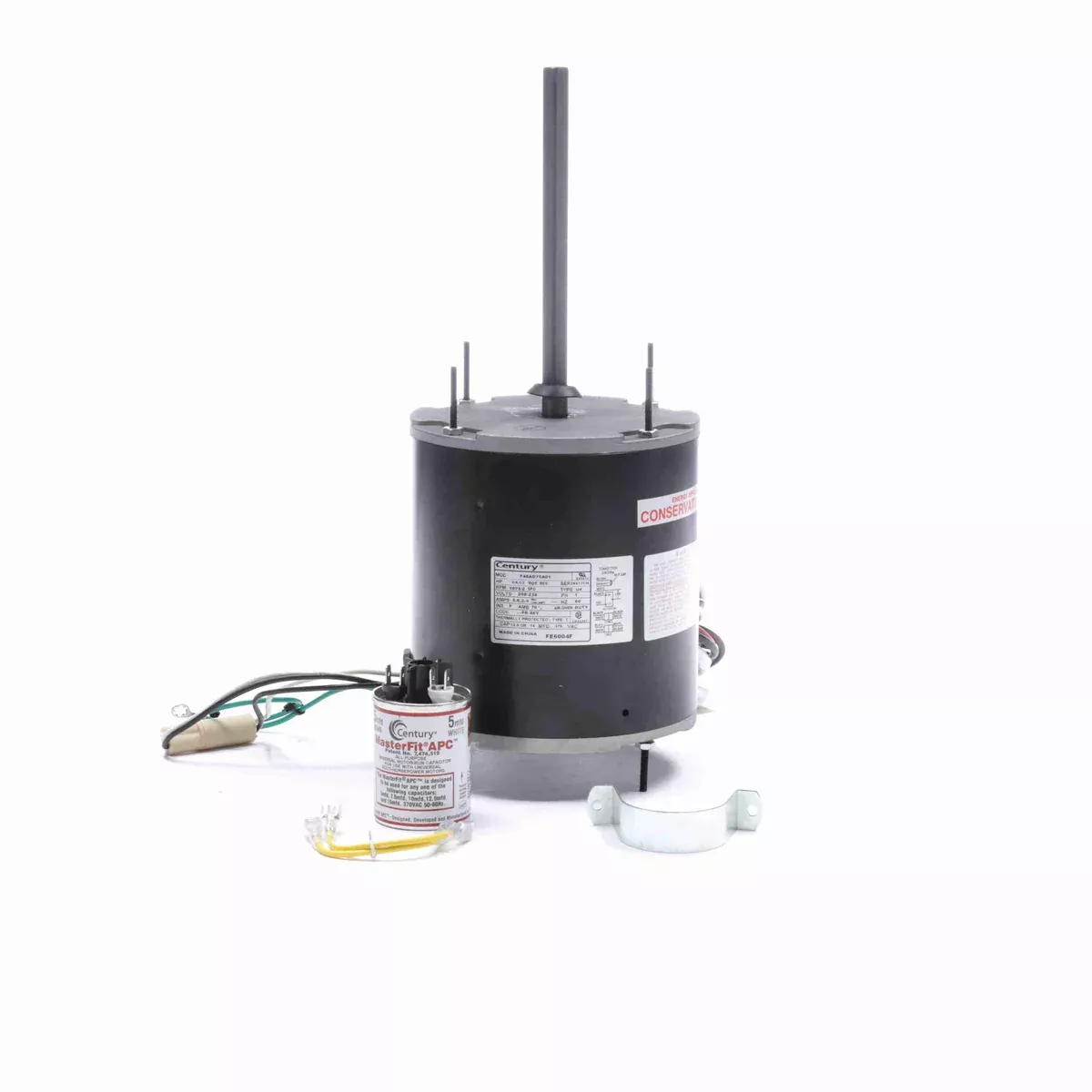

Century FE6004F 5.6″ Diameter HVAC Condenser Fan Motor – FE6004F

Original price was: $157.26.Current price is: $124.36.

Sale!
SKU: FE6004F Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/3, 3/4
  • RPM: 1075
  • Volts: 208-230
  • Amps: 5.6/2.4
  • Hz: 60
  • Phase: 1
  • Frame: 48
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Hole/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6-1/2″
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 70° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: 15MFD/370VAC @ 208V; 12.5MFD/370VAC @ 230V(Included)
  • FE6004F is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48AD75A01, A.O. Smith F48U07A01, A.O. Smith FE6004, Emerson 5482H, Johnstone Supply S89-740
  • Rheem Mounting Holes In Shell
  • 48″ Leads
  • Energy Efficient
  • Ship Weight: 21 lbs.
