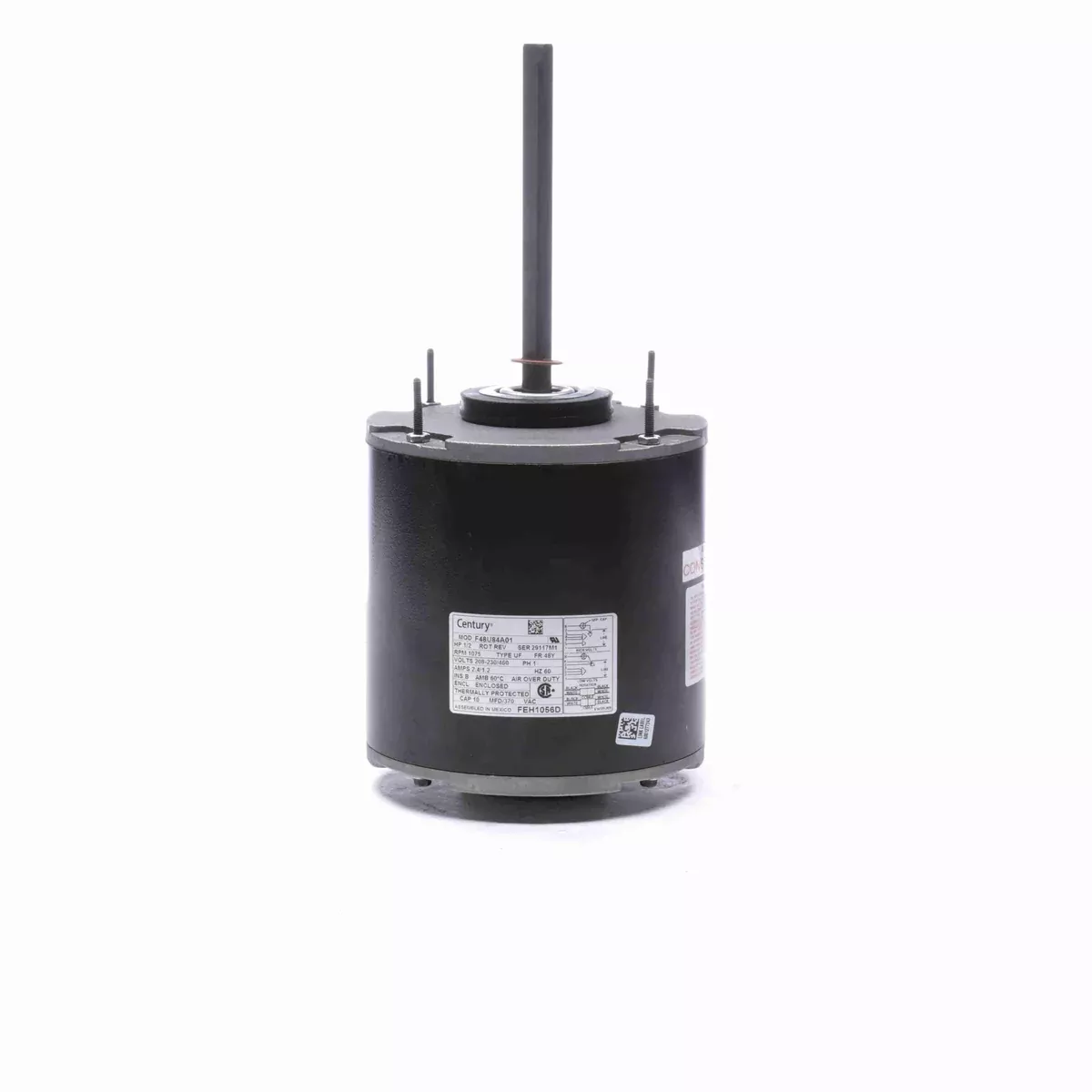

Century FEH1056D 5.6″ Diameter HVAC Condenser Fan Motor – FEH1056D

Original price was: $219.92.Current price is: $173.47.

Sale!
SKU: FEH1056D Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/2
  • RPM: 1075
  • Volts: 208-230/460
  • Amps: 2.4/1.2
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 10MFD @ 370VAC Required
  • FEH1056D is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48U84A01, Dayton 4M228, Dayton 4MA46
  • Includes Resilient Mounting Rings
  • Has Reversing Plug
  • 26″ Leads
  • Energy Efficient
  • Ship Weight: 19 lbs.
