Home » Shop » hot sale » Century FEH1076 5.6″ Diameter HVAC Condenser Fan Motor – FEH1076

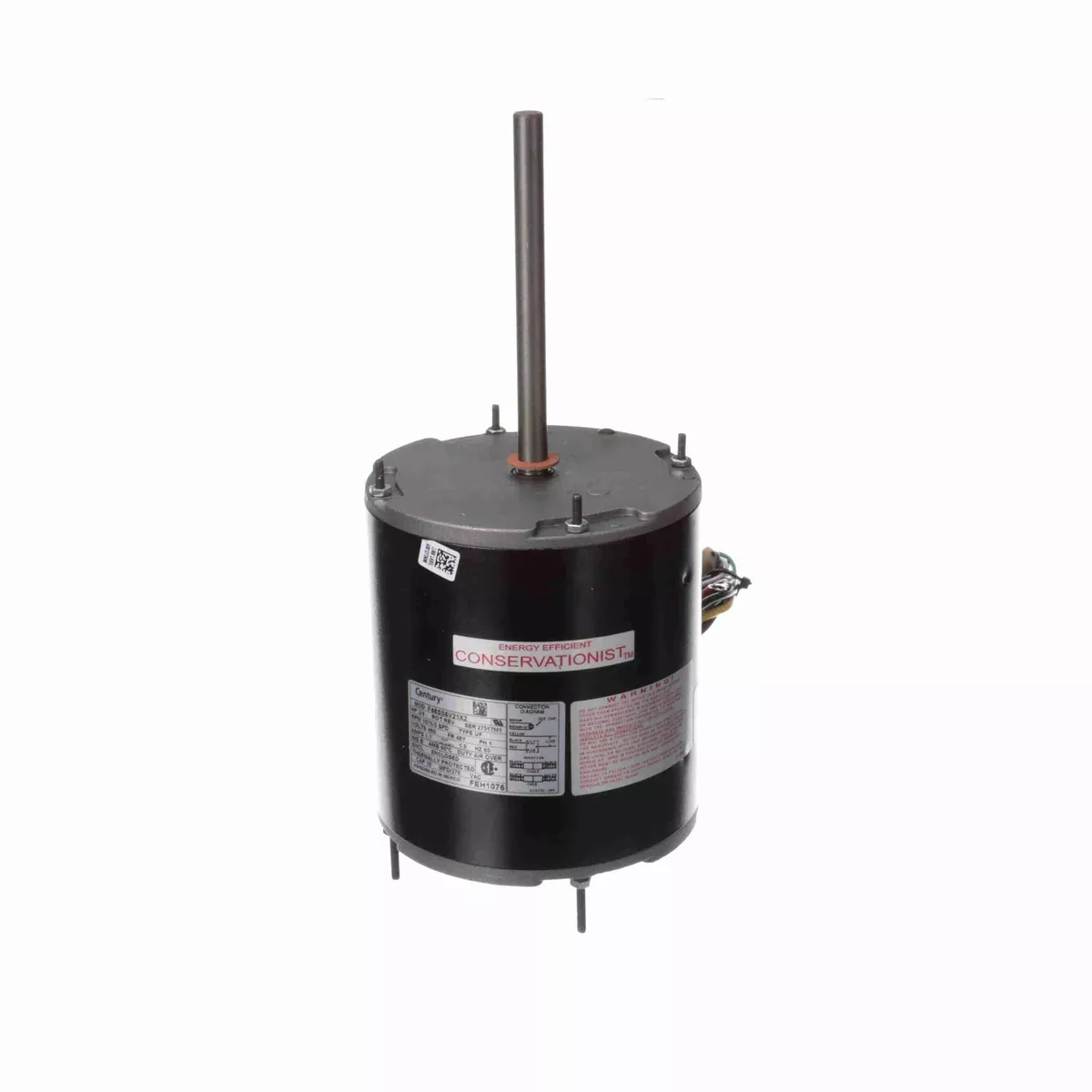

Century FEH1076 5.6″ Diameter HVAC Condenser Fan Motor – FEH1076

Original price was: $279.92.Current price is: $171.65.

Sale!
SKU: FEH1076 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 3/4
  • RPM: 1075
  • Volts: 460
  • Amps: 1.7
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6″
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 10MFD @ 370VAC Required
  • FEH1076 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48SQ6L54, A.O. Smith F48SQ6L54A1, A.O. Smith F48SR6V20, A.O. Smith F48SS6V12X2, A.O. Smith F48SS6V21X2, Trane MOT-1234, Trane MOT-1298, Trane MOT-1614, Trane MOT-1662, Trane MOT-1668, Trane MOT-2366, Trane MOT-2452
  • Has Reversing Plug
  • 26″ Leads
  • Energy Efficient
  • Ship Weight: 21 lbs.
