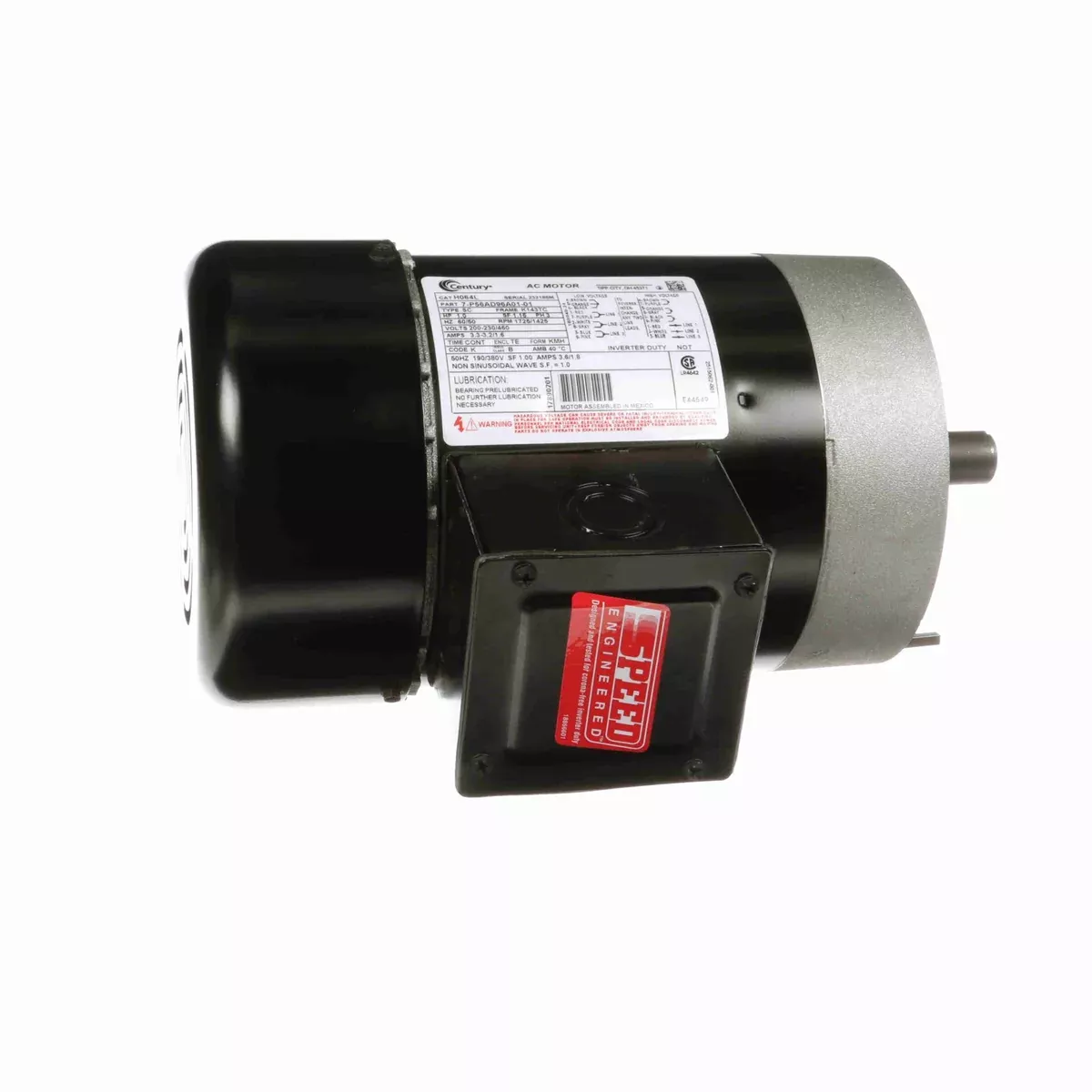

Century H064L General Purpose Three Phase Motor – H064L

Original price was: $301.96.Current price is: $224.41.

Sale!
SKU: H064L Category:
Share
  • Product Type: 3 Phase
  • HP: 1
  • RPM: 1425/1725
  • Volts: 200-230/460
  • Amps: 3.3/3.2/1.6
  • Hz: 50/60
  • Phase: 3
  • Frame: 143TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: C-Face
  • Shaft Diameter: 7/8″ Keyed
  • Shaft Length: 2-1/4″
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H064L is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 310P245, A.O. Smith 313P346, GE K328, Leland Faraday M63010, Marathon C220, A.O. Smith EC3104T, A.O. Smith H064, A.O. Smith P56AD96A01, Baldor VM3546T, Century 186692, GE 04918, GE 5K49MN4104, Dayton 2R982, Lincoln AF4S1TCN61, Lincoln CF4H1TCN61, Lincoln CN4E1TCN61, Lincoln LM01097, Lincoln LM02811, Lincoln LM12065, Lincoln LM12066, Lincoln SF4S1TCN61, Marathon V143TTFR5329, Dayton 3N342, Leeson 120024
  • Ship Weight: 33 lbs.
