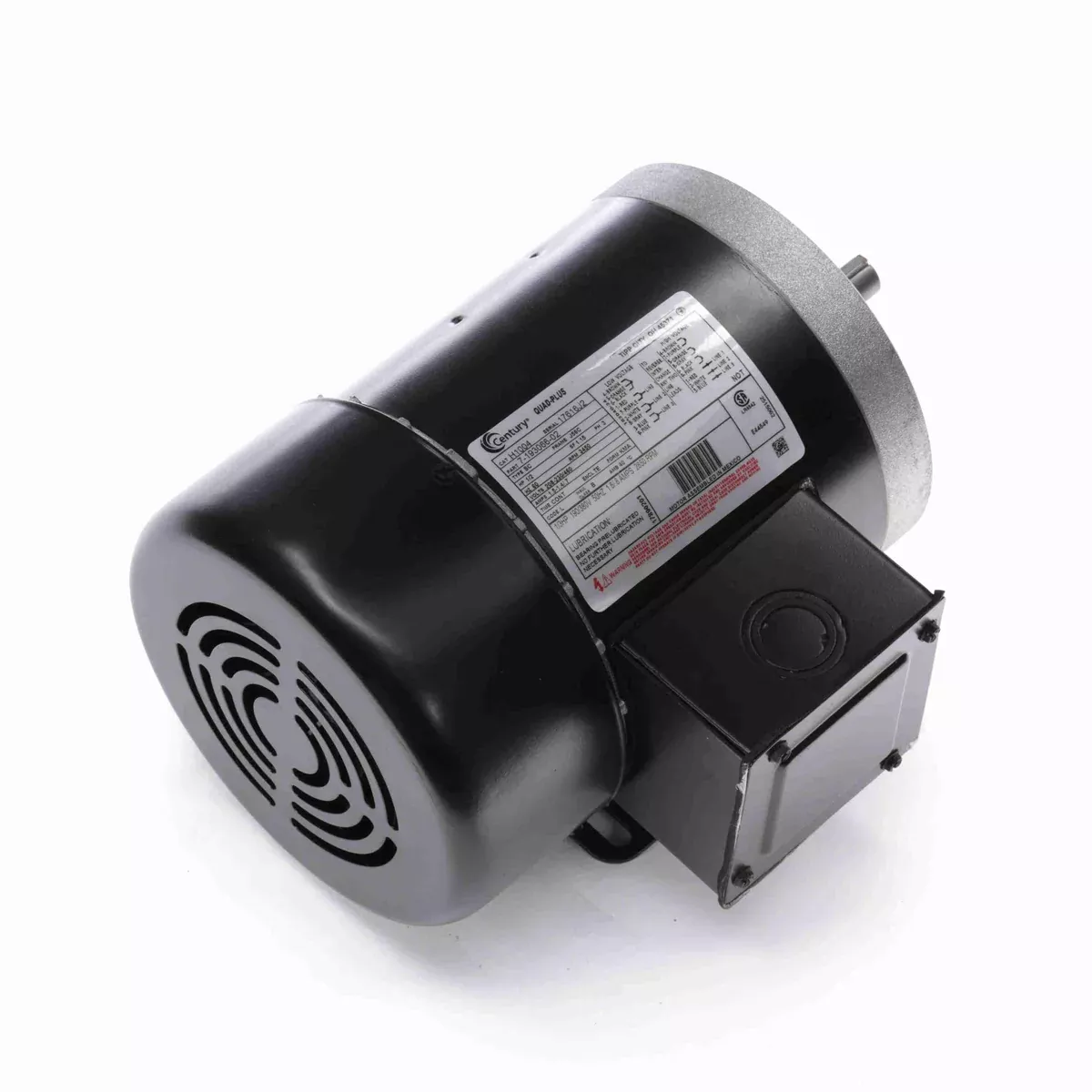

Century H1004 General Purpose Three Phase Motor – H1004

Original price was: $268.53.Current price is: $185.72.

Sale!
SKU: H1004 Category:
Share
  • Product Type: 3 Phase
  • HP: 1/2
  • RPM: 3450
  • Volts: 208-230/460
  • Amps: 1.5/1.4/0.7
  • Hz: 60
  • Phase: 3
  • Frame: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: C-Face/Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H1004 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 165040, A.O. Smith 193066, A.O. Smith H413, Baldor CM3537, Baldor EM3537, Century 165040, Century 193066, GE 5K42FN2048, GE K1323, Dayton 2K926, Dayton 6N057, Leeson 110182, Leeson 114142, Lincoln LM02543, Lincoln RF2S0.5TC61, Marathon G569, Marathon V56T34F5308
  • Ship Weight: 24 lbs.
