Home » Shop » hot sale » Century H1025A 5.6″ Diameter General Purpose Three Phase Motor – H1025A

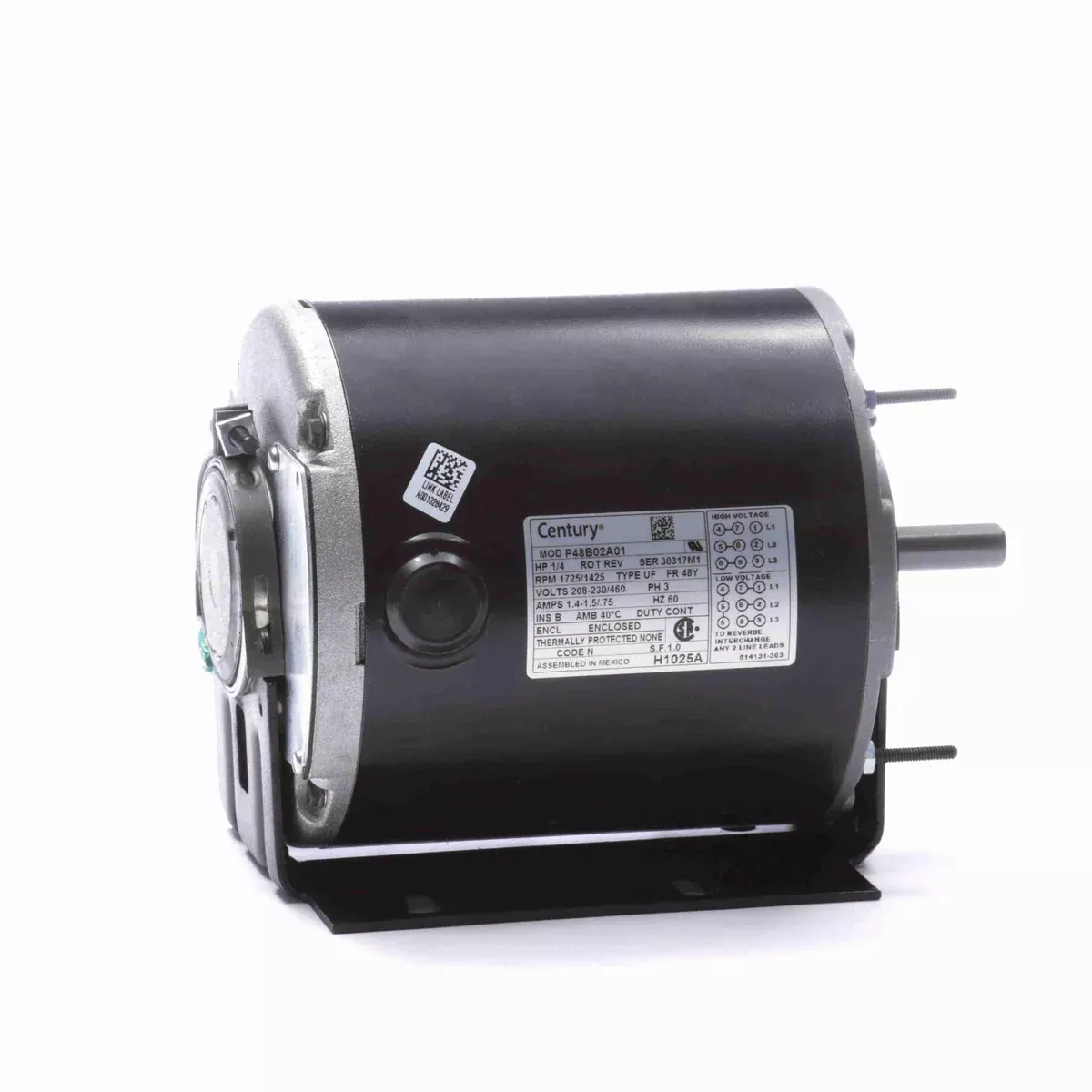

Century H1025A 5.6″ Diameter General Purpose Three Phase Motor – H1025A

Original price was: $206.30.Current price is: $105.42.

Sale!
SKU: H1025A Category:
Share
  • Product Type: 3 Phase
  • HP: 1/4
  • RPM: 1425/1725
  • Volts: 208-230/460
  • Amps: 1.4/1.5/0.75
  • Hz: 60
  • Phase: 3
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Cradle/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H1025A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith H1025, A.O. Smith HM2H7016, A.O. Smith P48B02A01, Dayton 4LY48, Dayton 4N003
  • Ship Weight: 17 lbs.
