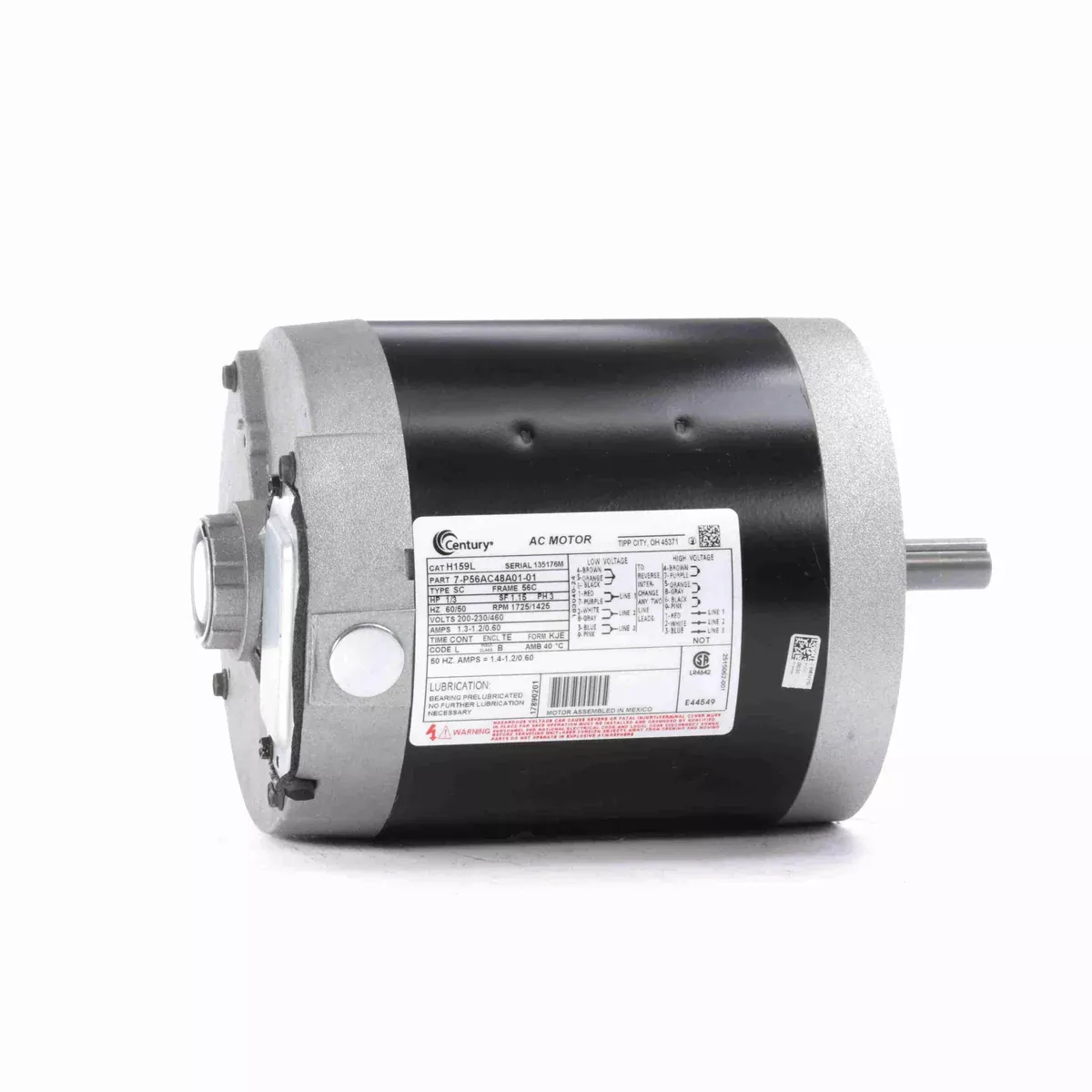

Century H159L General Purpose Three Phase Motor – H159L

Original price was: $137.33.Current price is: $105.03.

Sale!
SKU: H159L Category:
Share
  • Product Type: 3 Phase
  • HP: 1/3
  • RPM: 1425/1725
  • Volts: 200-230/460
  • Amps: 1.3/1.2/0.6
  • Hz: 50/60
  • Phase: 3
  • Frame: 56C
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Mounting: C-Face
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H159L is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 177578, A.O. Smith H159, A.O. Smith P56AC48A01, Baldor KNM3534, Century 177578, GE 815V2, Dayton 2N918, Dayton 3N686, Marathon G501, Marathon V56T17F2041, Universal Electric H159L, A.O. Smith 312P111, A.O. Smith 327P871, A.O. Smith EC3034, A.O. Smith P56H4UE100, Edison 8771, Emerson 8771, Emerson P329, GE K253, Leeson 11045, Marathon G502, Universal Electric H159, Baldor VM3534, Dayton 2N915, Leeson 101769
  • Ship Weight: 21 lbs.
