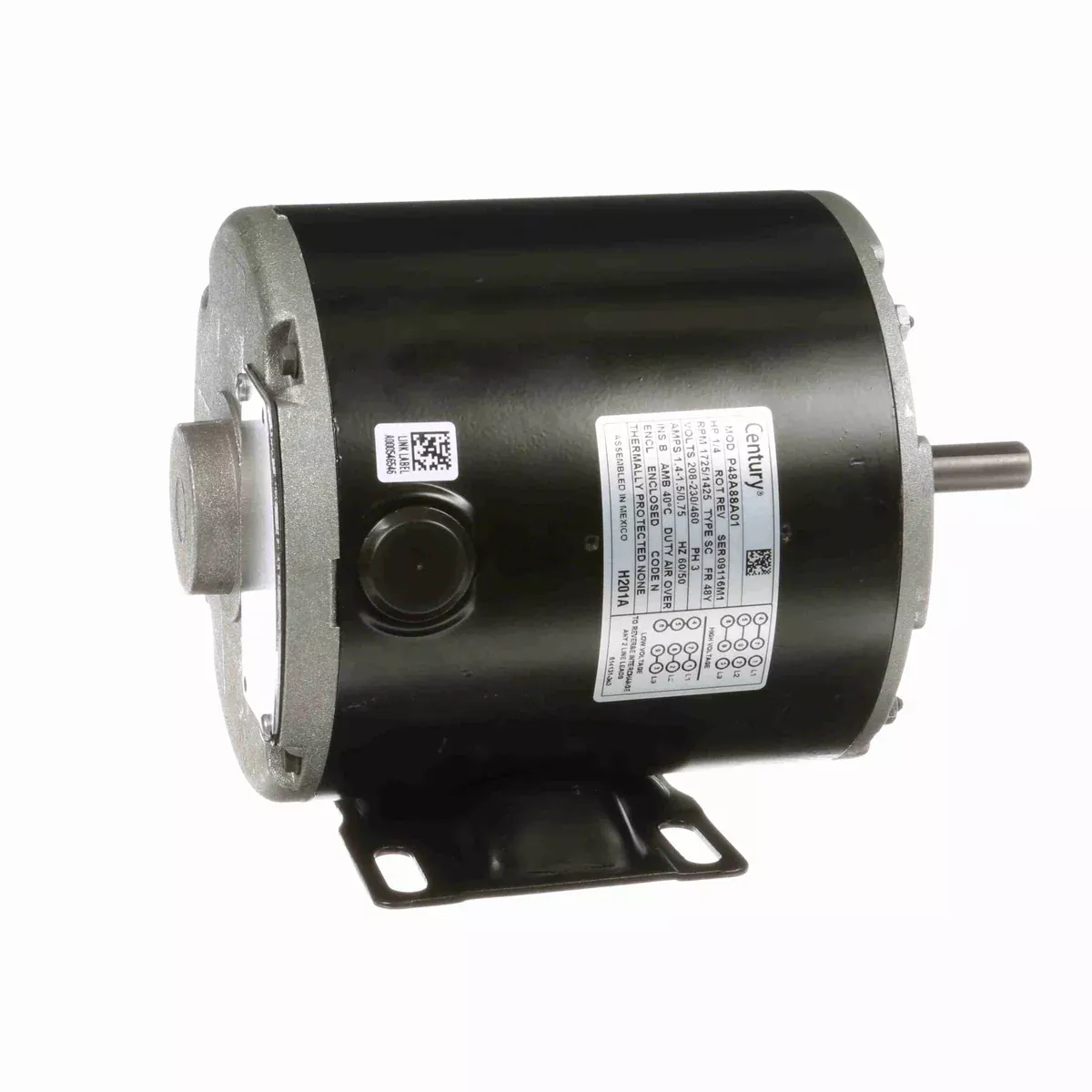

Century H201A 5.6″ Diameter General Purpose Three Phase Motor – H201A

Original price was: $56.11.Current price is: $32.33.

Sale!
SKU: H201A Category:
Share
  • Product Type: 3 Phase
  • HP: 1/4
  • RPM: 1425/1725
  • Volts: 208-230/460
  • Amps: 1.4/1.5/0.75
  • Hz: 50/60
  • Phase: 3
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Rigid
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H201A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith H201, A.O. Smith P48A88A01, Baldor M3454, Baldor NM3454, Century H101, GE K151, Dayton 3N349, Dayton 4N820, Leeson 100123, Leeson 101646, Marathon K420, Marathon V48T17F2000, Universal Electric HM2H002, Universal Electric HM2H7002, Universal Electric HM2HX02
  • Ship Weight: 15 lbs.
