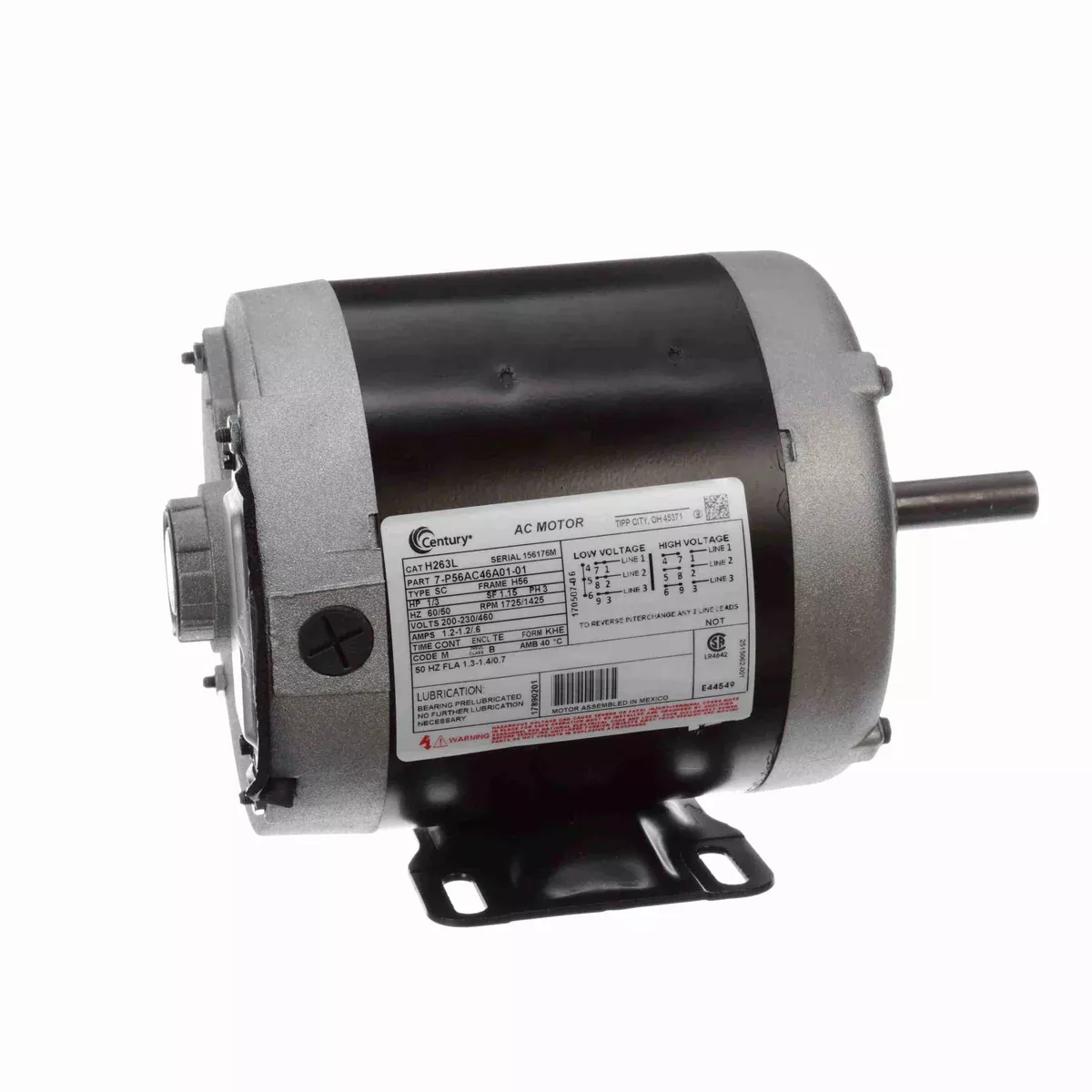

Century H263L General Purpose Three Phase Motor – H263L

Original price was: $280.60.Current price is: $203.40.

Sale!
SKU: H263L Category:
Share
  • H263L replaces stock H263
  • Product Type: 3 Phase
  • HP: 1/3
  • RPM: 1425/1725
  • Volts: 200-230/460
  • Amps: 1.2/1.2/0.6
  • Hz: 50/60
  • Phase: 3
  • Frame: 56
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H263L is listed in Century’s cross reference as a possible substitute for the following: GE K154, Dayton 2N864, Leeson 110031, Marathon G303, A.O. Smith 151188, A.O. Smith 311P187, A.O. Smith H263, A.O. Smith P56AC46A01, A.O. Smith TN3024, A.O. Smith TN3034, Baldor NM3534, Century 151188, Century H337, Dayton 3N535, Dayton 4N826, Johnstone Supply S88-004, Leeson 10031, Lincoln LM02532, Lincoln RF4S0.33T61, Marathon V56T17F2034
  • Ship Weight: 22 lbs.
