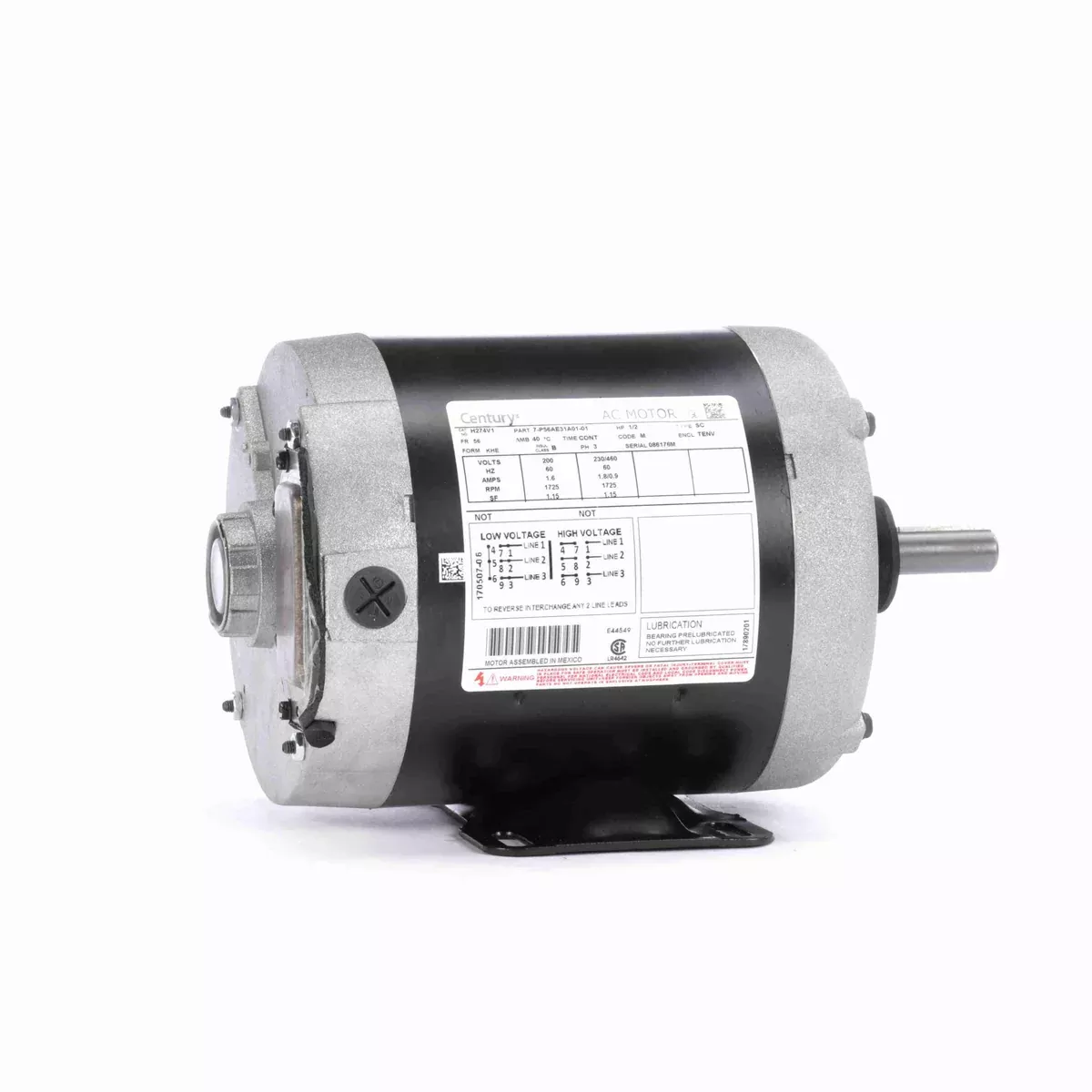

Century H274V1 General Purpose Three Phase Motor – H274V1

Original price was: $343.38.Current price is: $229.53.

Sale!
SKU: H274V1 Category:
Share
  • Product Type: 3 Phase
  • HP: 1/2
  • RPM: 1725
  • Volts: 200-230/460
  • Amps: 1.6/1.8/0.9
  • Hz: 60
  • Phase: 3
  • Frame: 56
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H274V1 is listed in Century’s cross reference as a possible substitute for the following: Baldor M3538, GE K158, Dayton 3N536, Leeson 110032, Marathon G321, A.O. Smith 151196, A.O. Smith 311P495, A.O. Smith H274, A.O. Smith P56AE31A01, A.O. Smith TN3054, Baldor NM3538, Century 151196, Century H307, Century H394, Johnstone Supply S88-006, Leeson 100913, Lincoln LM02538, Marathon V56T17F2035
  • Ship Weight: 24 lbs.
