Home » Shop » hot sale » Century H288 3 Phase 6-1/2″ Diameter General Purpose Motor – H288

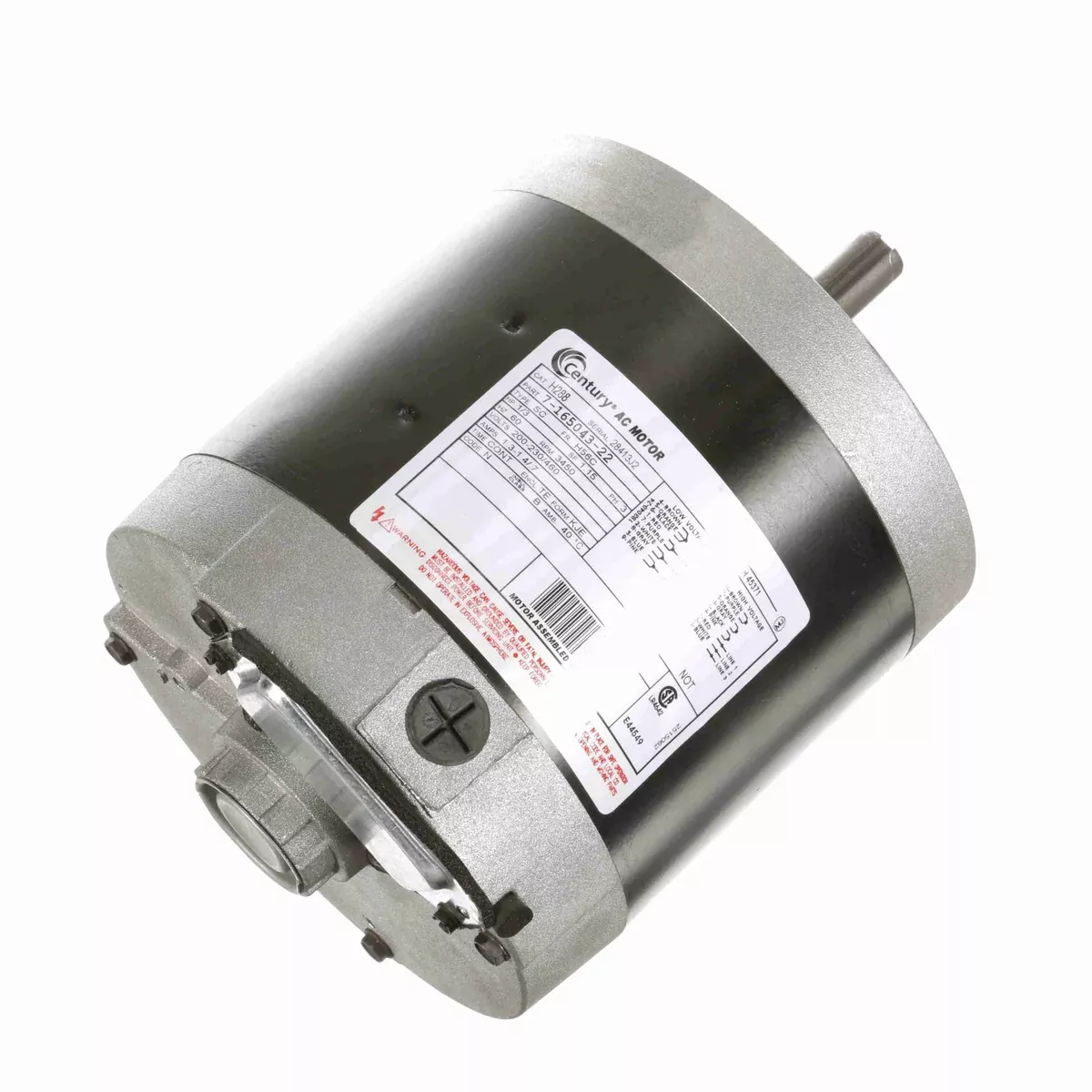

Century H288 3 Phase 6-1/2″ Diameter General Purpose Motor – H288

Original price was: $240.42.Current price is: $139.48.

Sale!
SKU: H288 Category:
Share
  • Product Type: 3 Phase
  • HP: 1/3
  • RPM: 3450
  • Volts: 200-230/460
  • Amps: 1.3/1.4/0.7
  • Hz: 60
  • Phase: 3
  • Frame: 56C
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Mounting: C-Face
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H288 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 165043, Baldor KM3457, Century 165043, Dayton 2R972, Leeson 110446, Marathon V56T34D5306, Marathon V56T34T5306
  • Ship Weight: 16 lbs.
