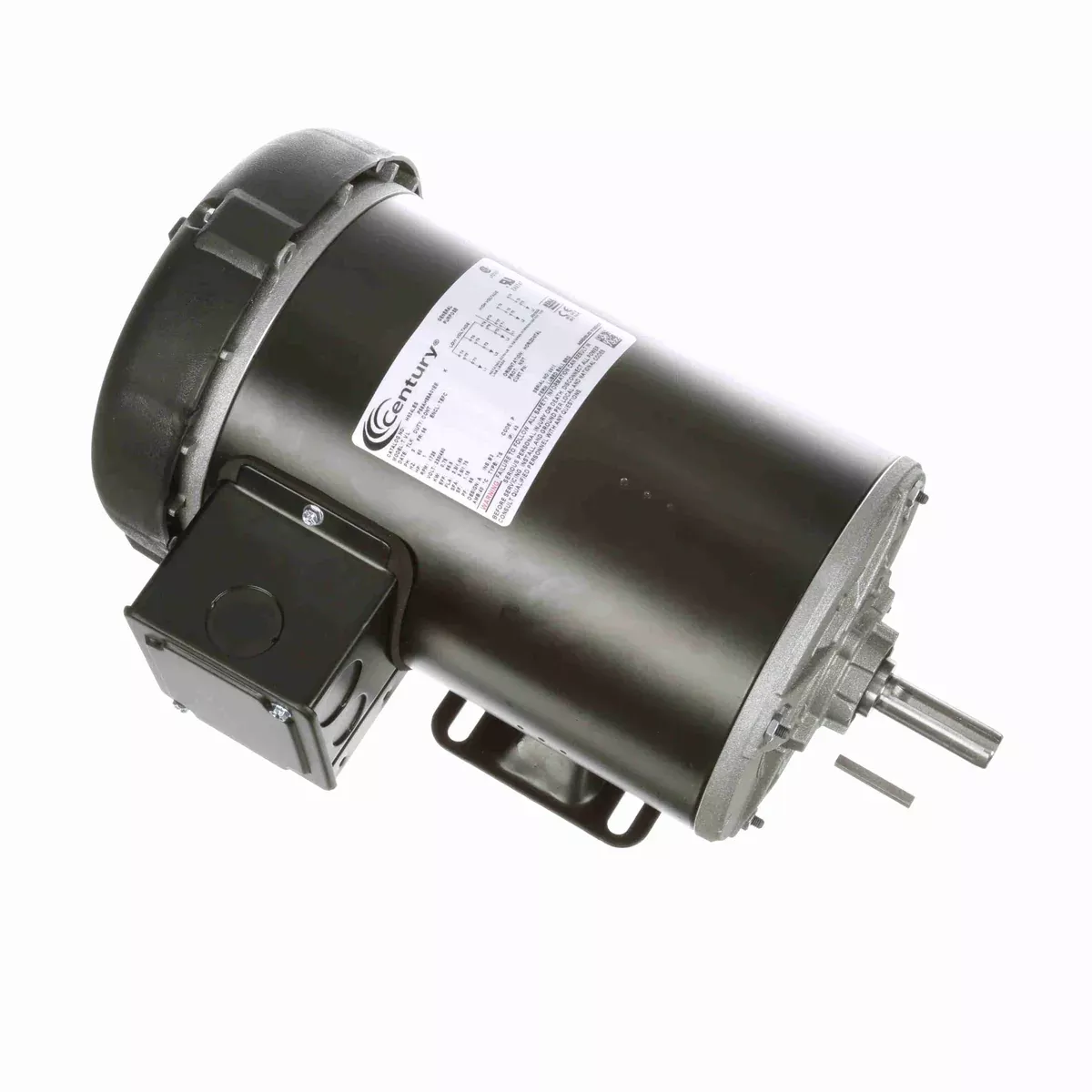

Century H524LES General Purpose Three Phase Motor – H524LES

Original price was: $301.98.Current price is: $184.04.

Sale!
SKU: H524LES Category:
Share
  • H524LES replaces stock numbers H524 and H524L
  • Product Type: 3 Phase
  • HP: 1
  • RPM: 1725
  • Volts: 200-230/460
  • Amps: 3.3/3.2/1.6
  • Hz: 60
  • Phase: 3
  • Frame: 56
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H524LES is listed in Century’s cross reference as a possible substitute for the following: 3N488, P56L4TE100, P56L4TE101, 159464, 311P329, 327P103, 327P692, EB3104, H524, P56AC14A01, M3546, 159464, H520, 04704, 5K43MG5455, 5K49MN4105, K164, 3N017, 3N285, 3N355, 3N540, S88-010, 110035, M678, LM02557, RF4S1T61, G347, H684, V143TTFR5330
  • Ship Weight: 30 lbs.
