Home » Shop » hot sale » Century H757 General Purpose Three Phase Motor – H757

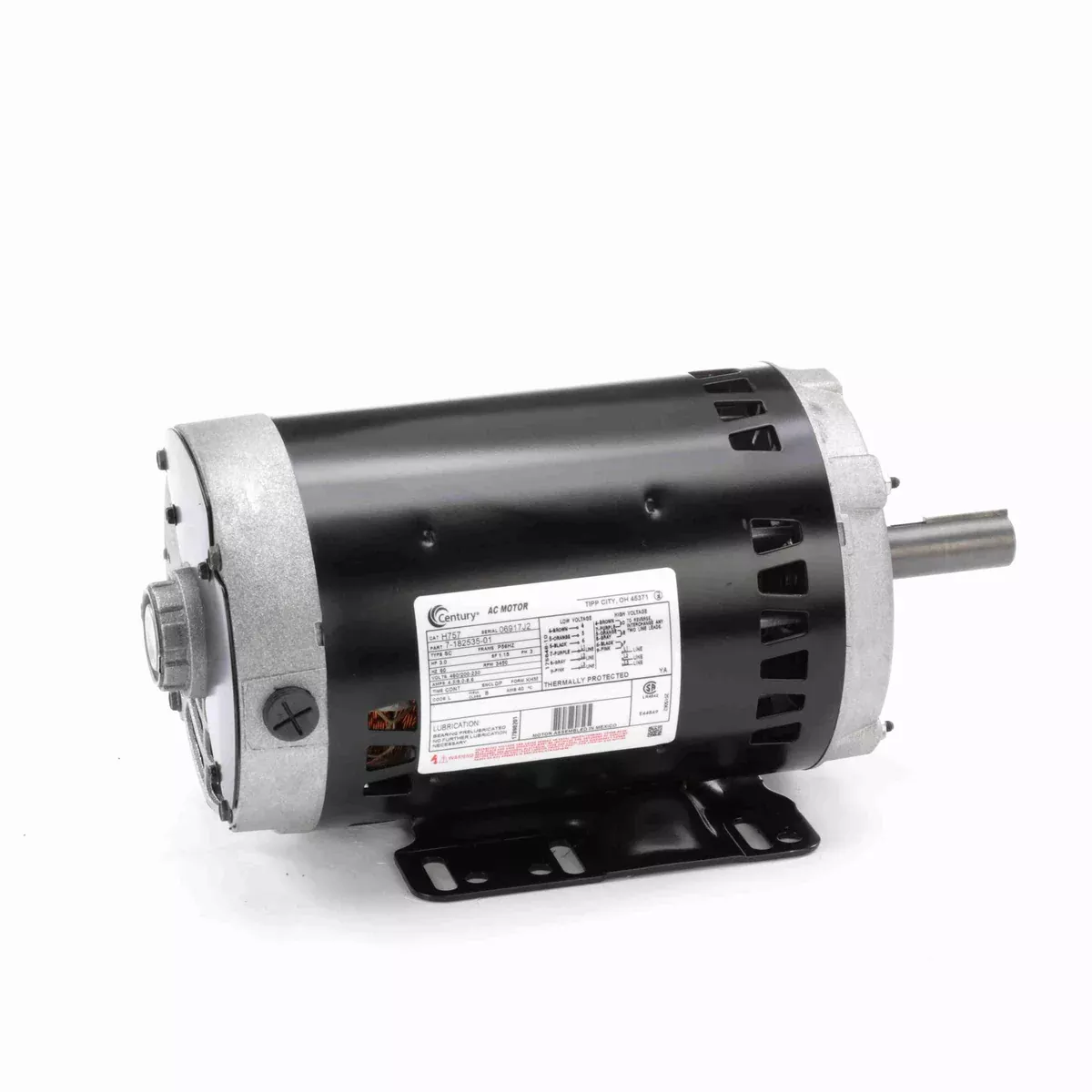

Century H757 General Purpose Three Phase Motor – H757

Original price was: $470.86.Current price is: $269.92.

Sale!
SKU: H757 Category:
Share
  • Product Type: 3 Phase
  • HP: 3
  • RPM: 3450
  • Volts: 200-230/460
  • Amps: 4.3/9/8.6
  • Hz: 60
  • Phase: 3
  • Frame: 56HZ
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 7/8″ Keyed
  • Shaft Length: 2-5/16″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H757 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith P56P2T8, A.O. Smith P56P2T8B3, A.O. Smith P56P2T8B6, A.O. Smith 182535, A.O. Smith BR3302, A.O. Smith P56P2T8C40, A.O. Smith P56P2T8C41, Baldor M3158, Carrier/BDP 48DA680122, Century 182535, Dayton 2Z267, Universal Electric H757
  • Quick Connect Design Bracket
  • Ship Weight: 35 lbs.
