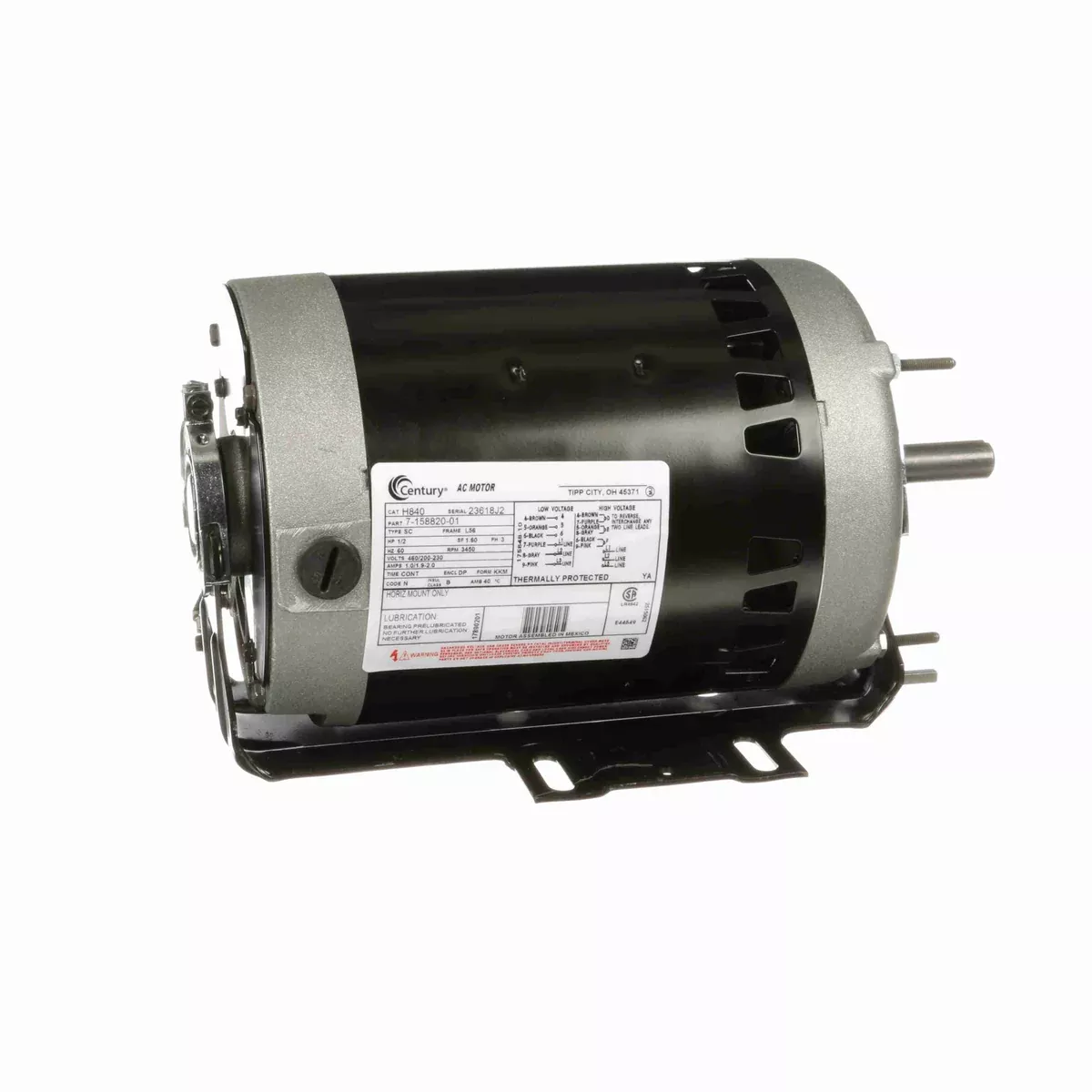

Century H840 General Purpose Three Phase Motor – H840

Original price was: $264.27.Current price is: $209.16.

Sale!
SKU: H840 Category:
Share
  • Product Type: 3 Phase
  • HP: 1/2
  • RPM: 3450
  • Volts: 200-230/460
  • Amps: 1/1.9/2
  • Hz: 60
  • Phase: 3
  • Frame: 56
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Cradle
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.60
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • H840 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 158820, A.O. Smith 314P062, A.O. Smith BK3052, A.O. Smith P48H2C1, A.O. Smith P48H2C1B1, A.O. Smith P48H2C2, A.O. Smith P48H2C2B1, A.O. Smith P48H2C3, A.O. Smith P48H2C3B1, A.O. Smith P48H2C4, A.O. Smith P48H2C4B1, A.O. Smith P48J2C1, A.O. Smith P48J2C1B1, A.O. Smith P48J2C2, A.O. Smith P48J2C2B1, A.O. Smith P48J2C2C1, A.O. Smith P48J2C3, A.O. Smith P48J2C4, A.O. Smith P48J2C4A1, A.O. Smith P48J2C4A2, A.O. Smith P48J2C4B1, A.O. Smith P48J2C4C2, A.O. Smith P56H2C2, A.O. Smith P56H2C3, A.O. Smith P56H2C4, A.O. Smith P56H2C7, A.O. Smith P56J2C1, A.O. Smith P56J2C2, A.O. Smith P56J2C3, A.O. Smith P56J2C4, A.O. Smith P56J2C7, Century 158820, Century 165810, Century H840, GE K1407, Dayton 3N634, Dayton 4MA38, Johnstone Supply S88-191, Leeson 101640, Leeson 101771, Lincoln LM04816, Lincoln RD2S0.5TR61, Marathon G164, Marathon Q56T17D2097, Marathon Q56T17D5345, Marathon Q56T34D5305, Trane MOT 3076, Universal Electric 861, Universal Electric HP1L003
  • Quick Connect Design Bracket
  • Horizontal Mount Only
  • Ship Weight: 21 lbs.
