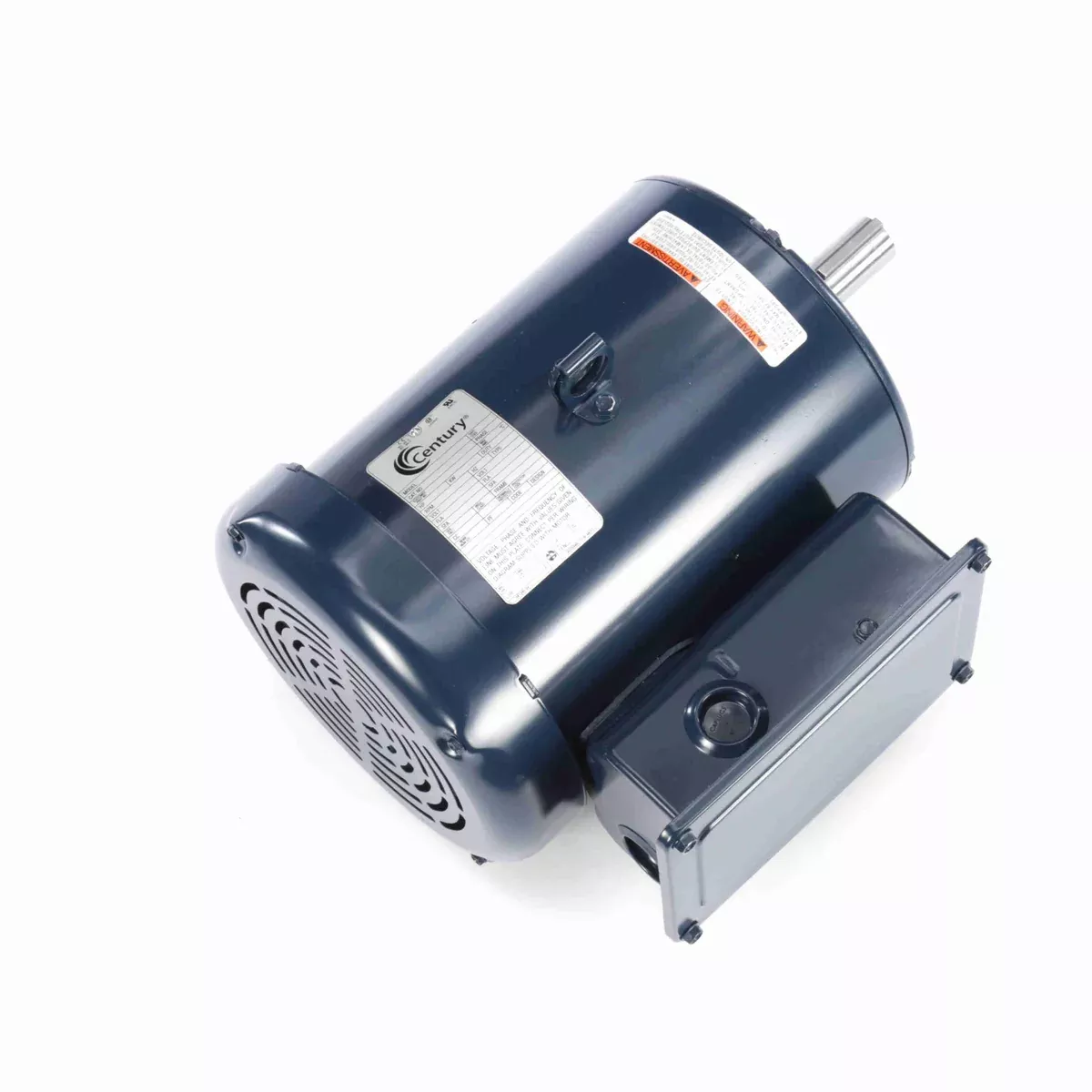

Century K222M2 General Purpose Single Phase Motor – K222M2

Original price was: $314.66.Current price is: $244.13.

Sale!
SKU: K222M2 Category:
Share
  • K222M2 replaces stock K222
  • Product Type: Capacitor Start
  • HP: 3
  • RPM: 3500
  • Volts: 115/230
  • Amps: 32/16
  • Hz: 60
  • Phase: 1
  • Frame: 184T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Steel
  • Mounting: Rigid
  • Shaft Diameter: 1-1/8″ Keyed
  • Shaft Length: 2-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: Included
  • K222M2 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 373638, Baldor L3606T, Century 373638, Leeson 131263, Marathon L206, Marathon V182TBFR5301
  • Ship Weight: 98 lbs.
