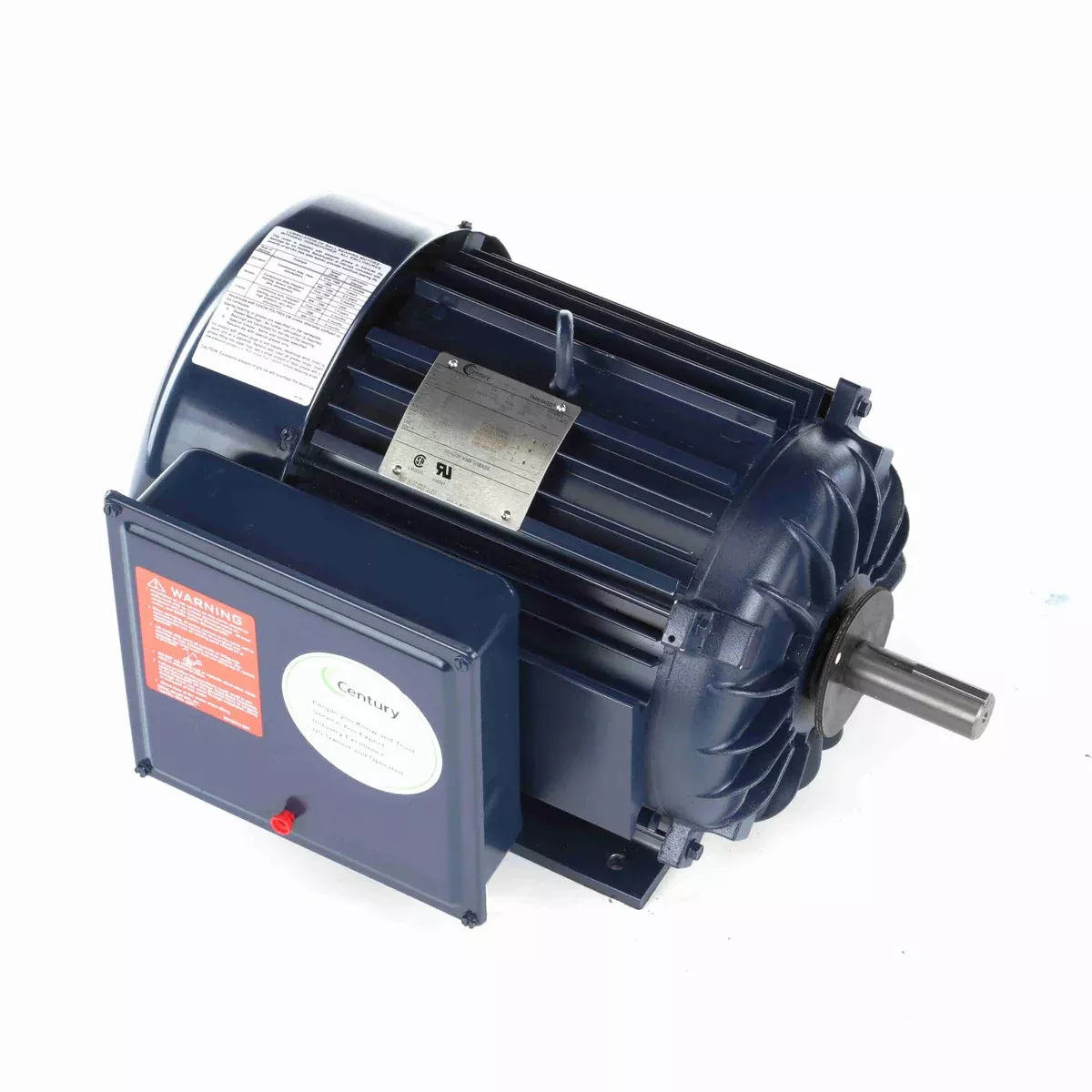

Century K300M2 General Purpose Single Phase Farm Duty Motor – K300M2

Original price was: $716.09.Current price is: $562.99.

Sale!
SKU: K300M2 Category:
Share
  • K300M2 replaces stock K300
  • Product Type: Capacitor Start
  • HP: 5
  • RPM: 1725
  • Volts: 230
  • Amps: 26
  • Hz: 60
  • Phase: 1
  • Frame: 215TZ
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Steel
  • Mounting: Rigid
  • Shaft Diameter: 1-1/8″ Keyed
  • Shaft Length: 3-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Manual
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • K300M2 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 364559, Baldor FDL3731M, Century 364559, Dayton 6K816, Dayton 6K883, Johnstone Supply S87-914, Leeson 140223, Marathon X213TBFL9027, Marathon Z117, U.S.E.M. J502
  • Removable Condensate Drain Plugs
  • All Parts Are Corrosion Resistant
  • Ship Weight: 147 lbs.
