Home » Shop » hot sale » Century OB3204V1 General Purpose Three Phase Motor – OB3204V1

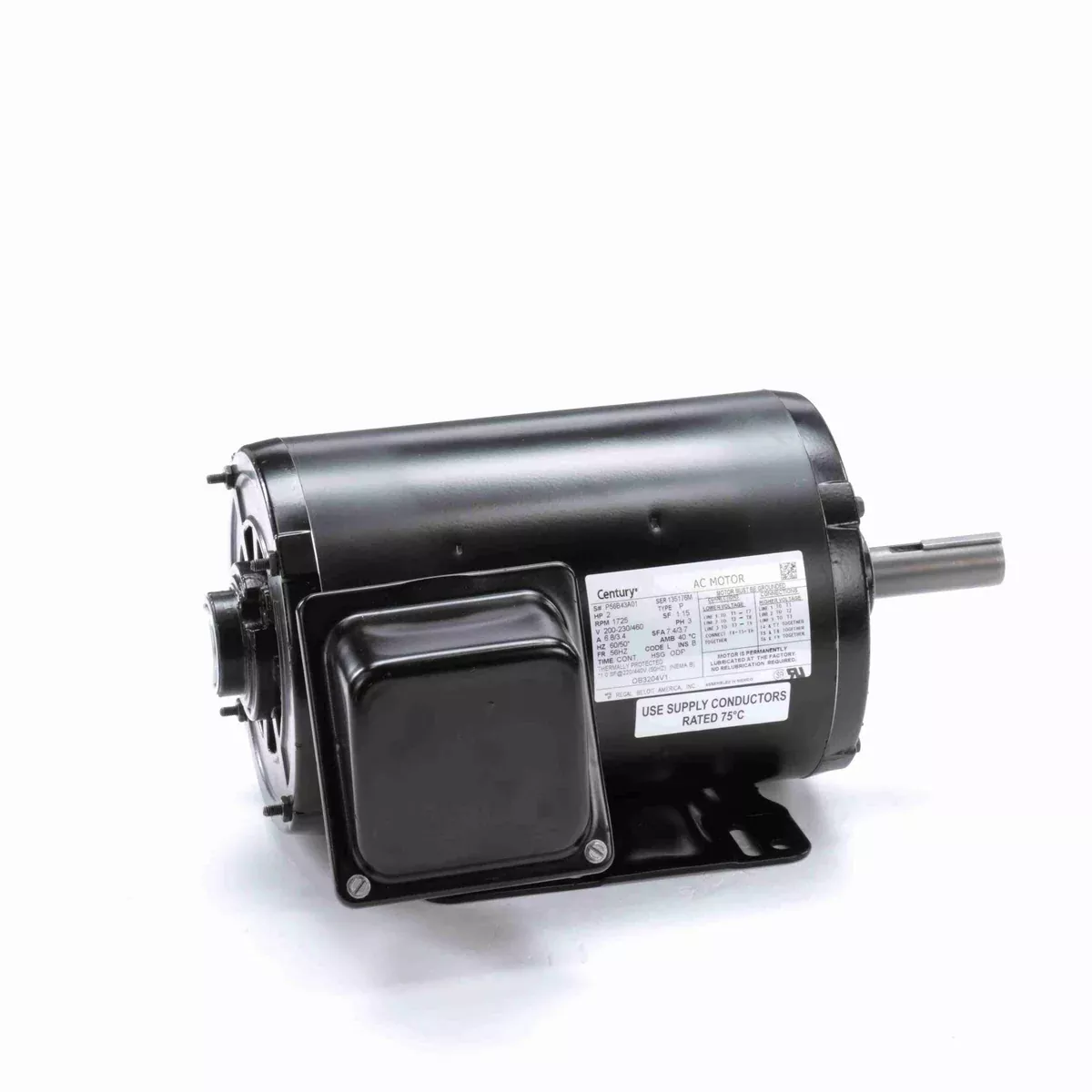

Century OB3204V1 General Purpose Three Phase Motor – OB3204V1

Original price was: $320.54.Current price is: $205.92.

Sale!
SKU: OB3204V1 Category:
Share
  • Product Type: 3 Phase
  • HP: 2
  • RPM: 1725
  • Volts: 200-230/460
  • Amps: 6.8/3.4
  • Hz: 50/60
  • Phase: 3
  • Frame: 56HZ
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 7/8″ Keyed
  • Shaft Length: 2-5/16″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • OB3204V1 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith OB3204T, Carrier/BDP 240-123, Century R147, Dayton 3N657, A.O. Smith 313P105, A.O. Smith 313P181, A.O. Smith 313P287, A.O. Smith 313P302, A.O. Smith P56B43A01, A.O. Smith P56C18C82, Dayton 3N016, Dayton 3N389, Lincoln KM362
  • Ship Weight: 33 lbs.
