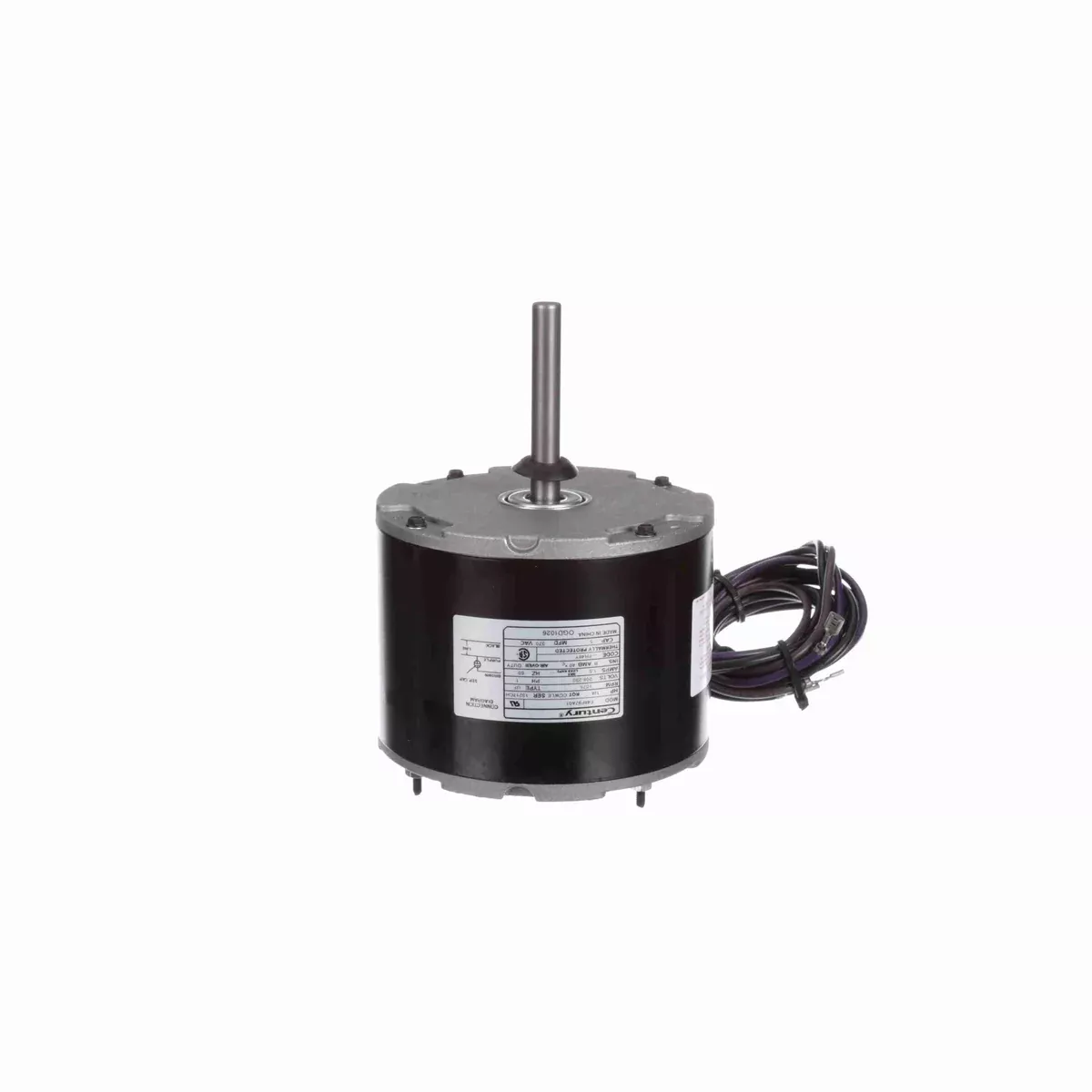

Century OGD1026 5.6″ Diameter HVAC OEM Replacement Motor – OGD1026

Original price was: $131.28.Current price is: $90.62.

Sale!
SKU: OGD1026 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/4
  • RPM: 1075
  • Volts: 208-230
  • Amps: 1.5
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 3-1/4″
  • Rotation: CW Shaft End
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 5MFD @ 370VAC Required
  • OGD1026 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48A91A76, A.O. Smith F48F97A01, A.O. Smith F48F97A76, A.O. Smith F48F97A97, GE 3218, Goodman/Janitrol B13400-247
  • 47″ Leads
  • Ship Weight: 11 lbs.
