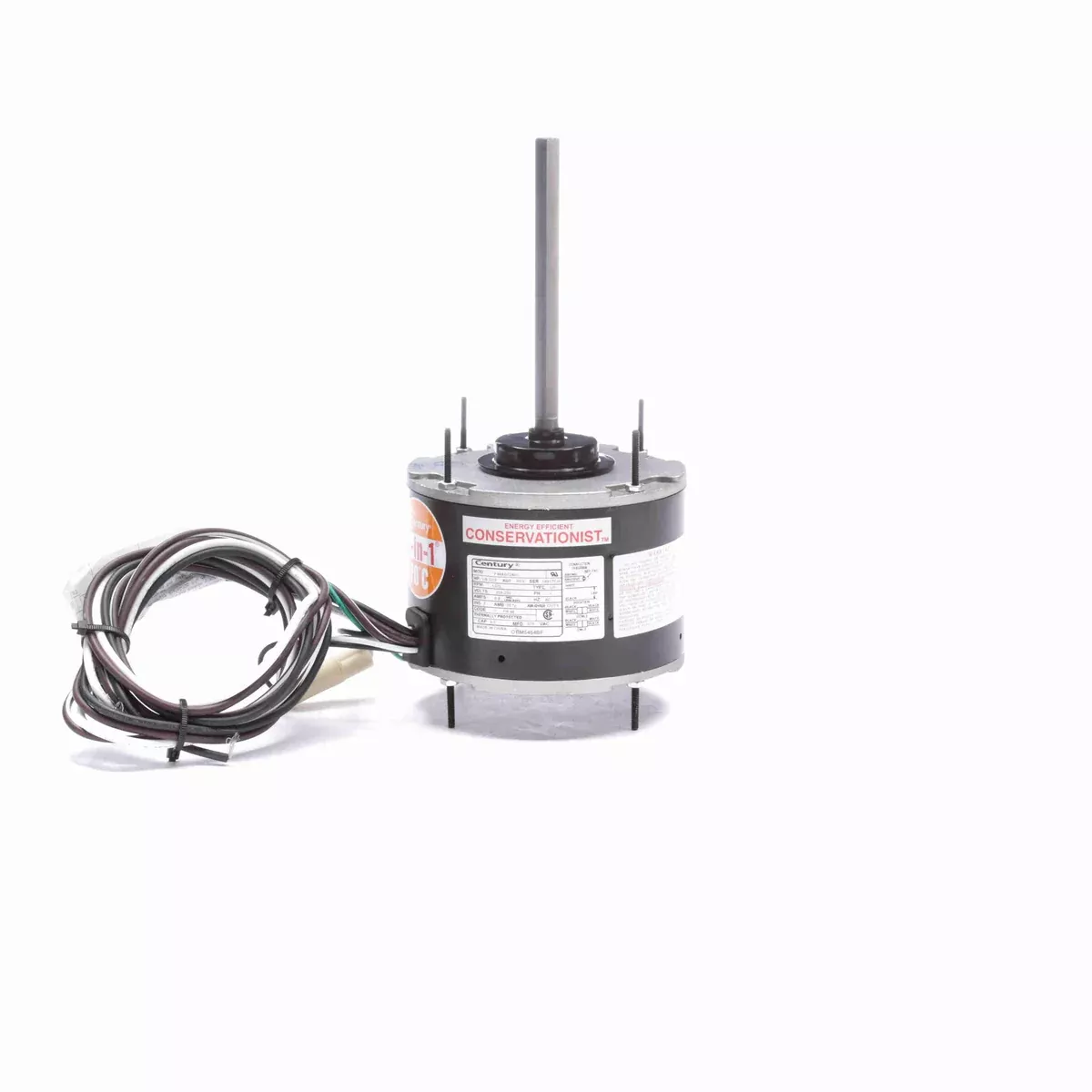

Century ORM5454BF 5.6″ Diameter HVAC Condenser Fan Motor – ORM5454BF

Original price was: $120.10.Current price is: $77.60.

Sale!
SKU: ORM5454BF Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/15, 1/8
  • RPM: 1075
  • Volts: 208-230
  • Amps: 0.8
  • Hz: 60
  • Phase: 1
  • Frame: 48
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Hole/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 70° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: 5MFD @ 370VAC Required
  • ORM5454BF is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48AB72A01
  • Removable Drain Plugs On Each End
  • Rheem Mountings Holes In Shell (Screws Included)
  • Energy Efficient
  • Ship Weight: 11 lbs.
