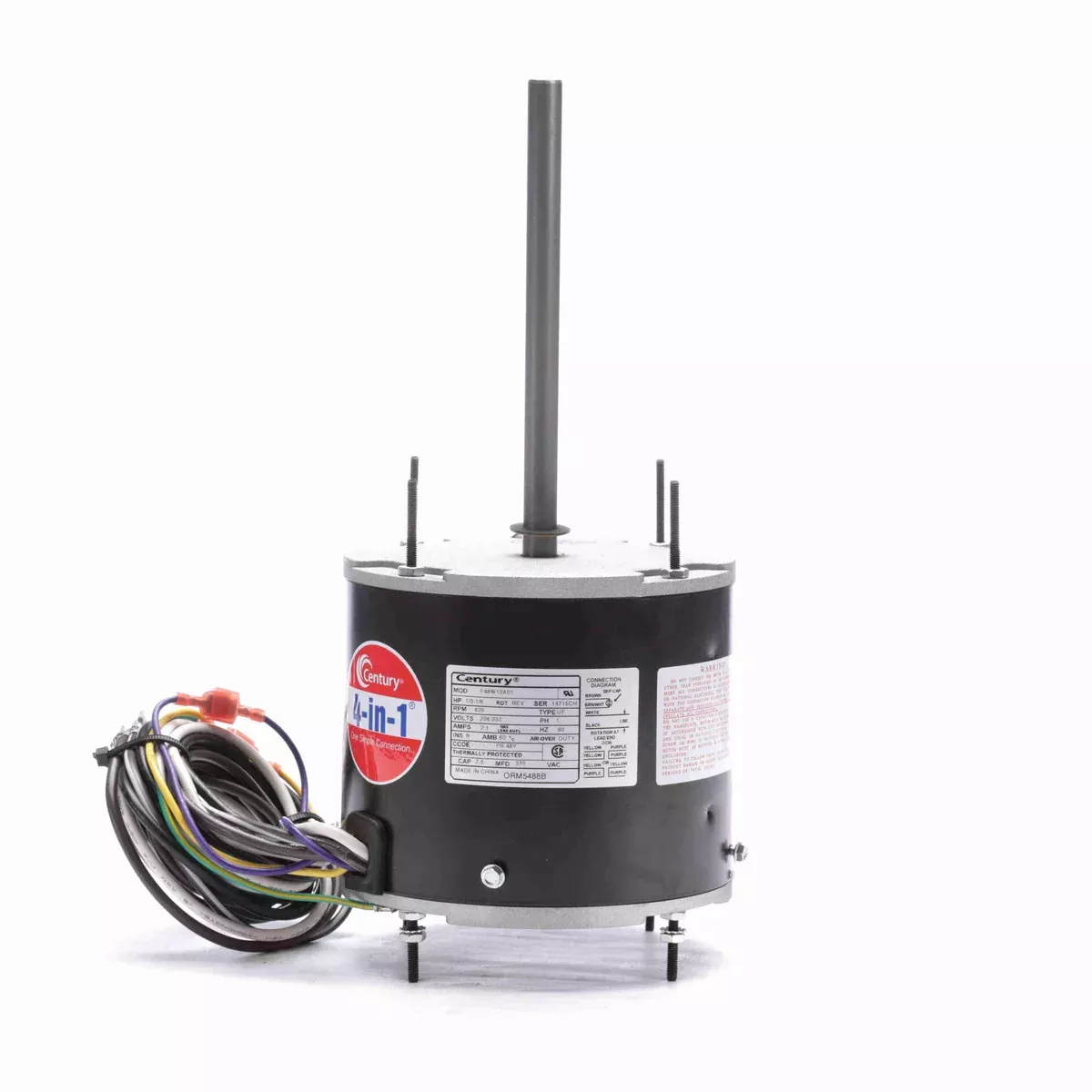

Century ORM5488B 5.6″ Diameter HVAC Condenser Fan Motor – ORM5488B

Original price was: $139.82.Current price is: $89.45.

Sale!
SKU: ORM5488B Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/8, 1/3
  • RPM: 825
  • Volts: 208-230
  • Amps: 2.1
  • Hz: 60
  • Phase: 1
  • Frame: 48
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Hole/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 370VAC Required
  • ORM5488B is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48W12A01, GE 03469, Rheem/Protech 51-20760-01, Rheem/Protech 51-20760-02, Rheem/Protech 51-20760-91, Rheem/Protech 51-20761-11, Rheem/Protech 51-20761-91, Rheem/Protech 51-20762-01, Rheem/Protech 51-20763-01, Rheem/Protech 51-20763-02, Rheem/Protech 51-21460-01, Rheem/Protech 51-21461-01, Rheem/Protech 51-22015-01, Rheem/Protech 51-22922-01, Rheem/Protech 51-22923-01, Rheem/Protech 51-23054-13, Rheem/Protech 51-41404-01, Emerson 5464, Rheem/Protech 51-20760-11, Rheem/Protech 51-20761-01, Rheem/Protech 51-21276-01, Rheem/Protech 51-21276-02, Rheem/Protech 51-21460-02, Rheem/Protech 51-21461-02, Rheem/Protech 51-22014-01, Rheem/Protech 51-23055-12
  • Removable Drain Plugs On Each End
  • Rheem Mountings Holes In Shell (Screws Included)
  • Energy Efficient
  • Ship Weight: 15 lbs.
