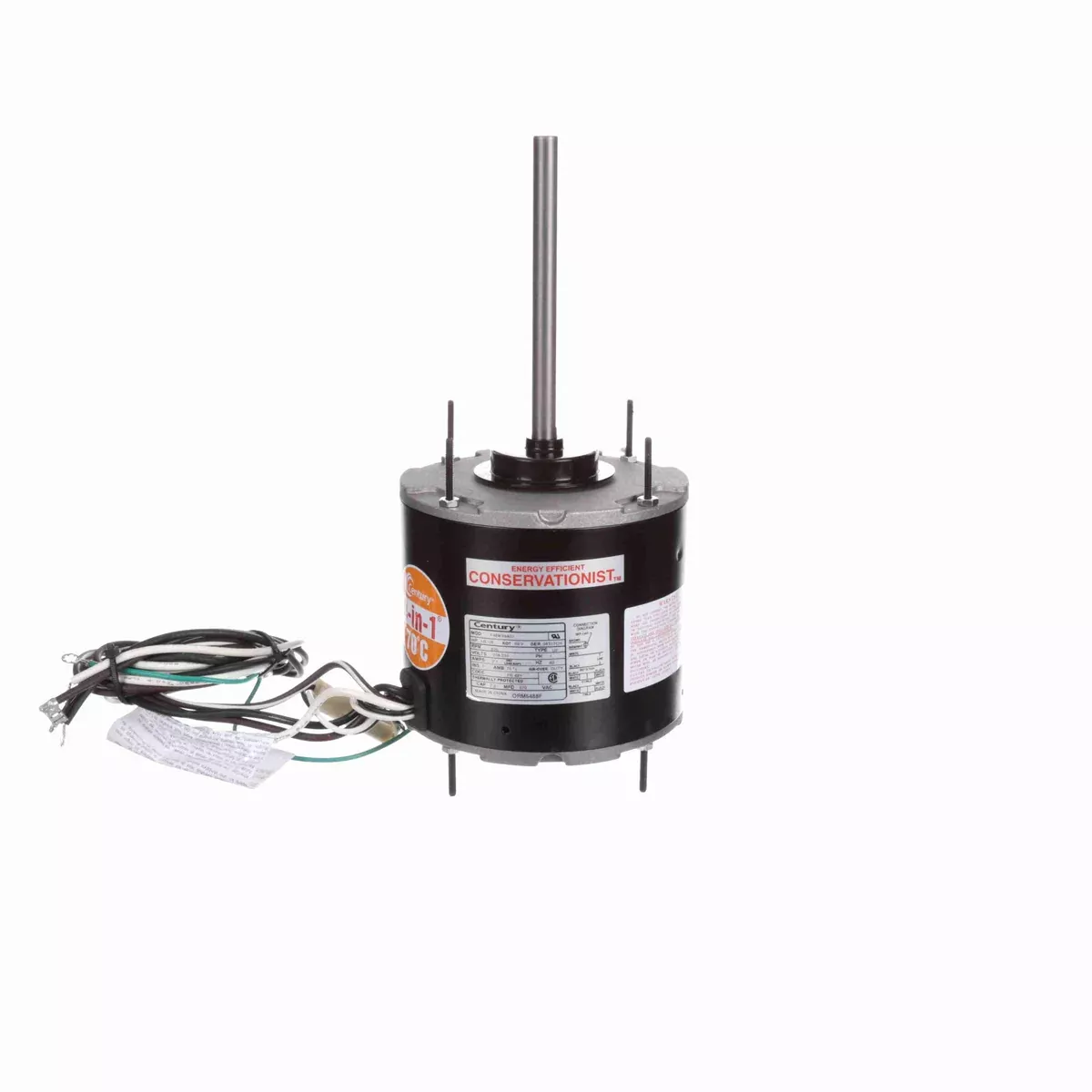

Century ORM5488F 5.6″ Diameter HVAC Condenser Fan Motor – ORM5488F

Original price was: $137.78.Current price is: $85.14.

Sale!
SKU: ORM5488F Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/8, 1/3
  • RPM: 825
  • Volts: 208-230
  • Amps: 2.1
  • Hz: 60
  • Phase: 1
  • Frame: 48
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Hole/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 70° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 370VAC Required
  • ORM5488F is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48W89A01, Fasco 3457HS, GE 3457HS, GE 5KCP39NFAD13S, Marathon X072, Emerson 1873H, Emerson 1874H, Emerson 1875H, Emerson 1875
  • Removable Drain Plugs On Each End
  • Rheem Mountings Holes In Shell (Screws Included)
  • Energy Efficient
  • Ship Weight: 16 lbs.
