- Product Type: PSC (Permanent Split Capacitor)
- HP: 1/8
- RPM: 1650
- Volts: 200-230
- Amps: 0.7/0.9
- Hz: 60
- Phase: 1
- Frame: 48Y
- Enclosure Type: TEAO (Totally Enclosed Air Over)
- Mounting: Band
- Motor Diameter: 5-5/8″
- Shaft Diameter: 1/2″
- Shaft Length: 1-1/2″
- Rotation: CW Shaft End
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Sleeve
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: 4MFD @ 370VAC Required
- OTR1004 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F42V54A01, Emerson 1673, Emerson K55DJK6905, Emerson K55HXDJK6905, Dayton 4UY96, Dayton 5HC12, Trane 3D149098P01, Trane D149098P01
- Ship Weight: 11 lbs.

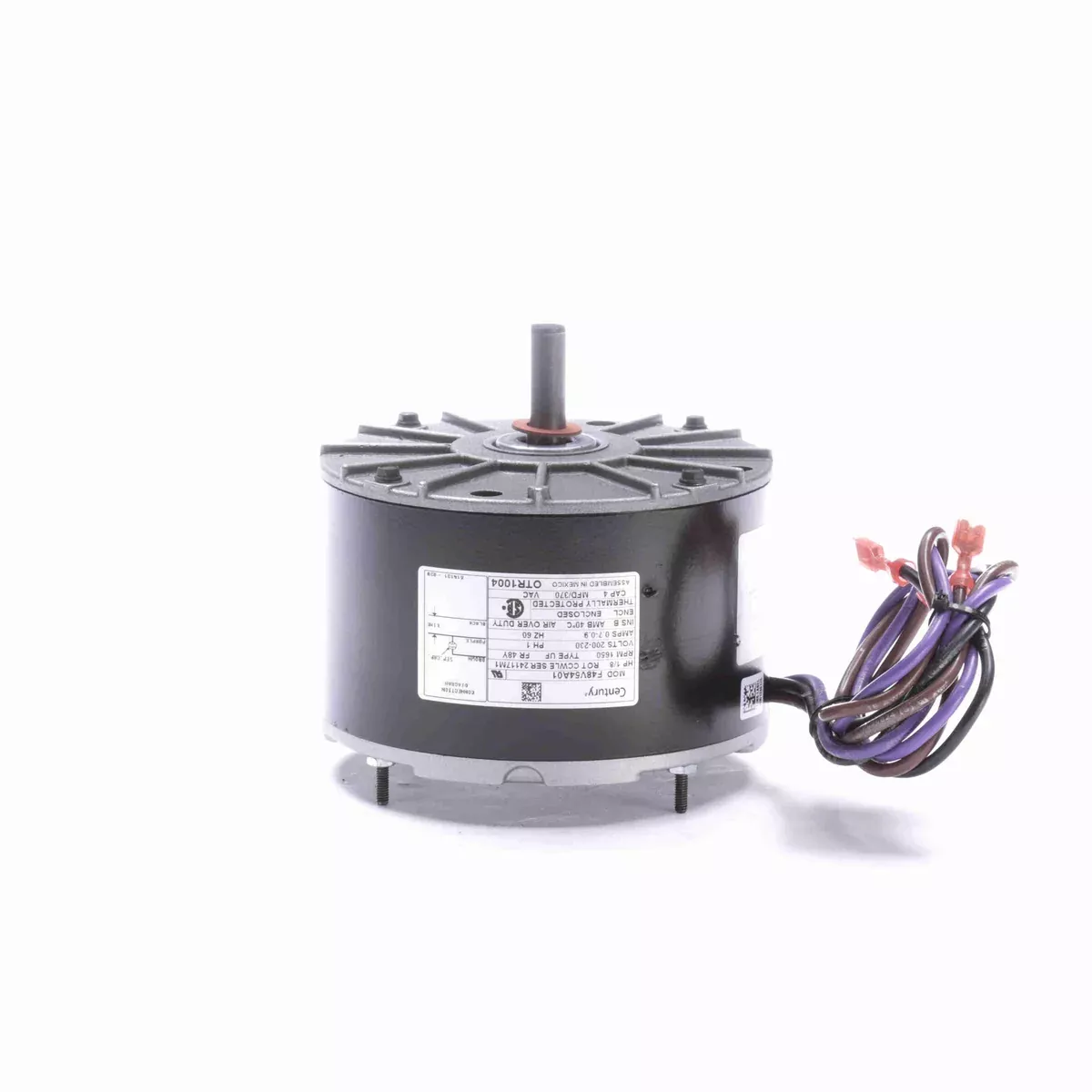

Century OTR1004 5.6″ Diameter HVAC OEM Replacement Motor – OTR1004
Original price was: $159.54.$105.95Current price is: $105.95.
