Home » Shop » hot sale » Century U6430 5″ Diameter HVAC Unit Heater Motor – U6430

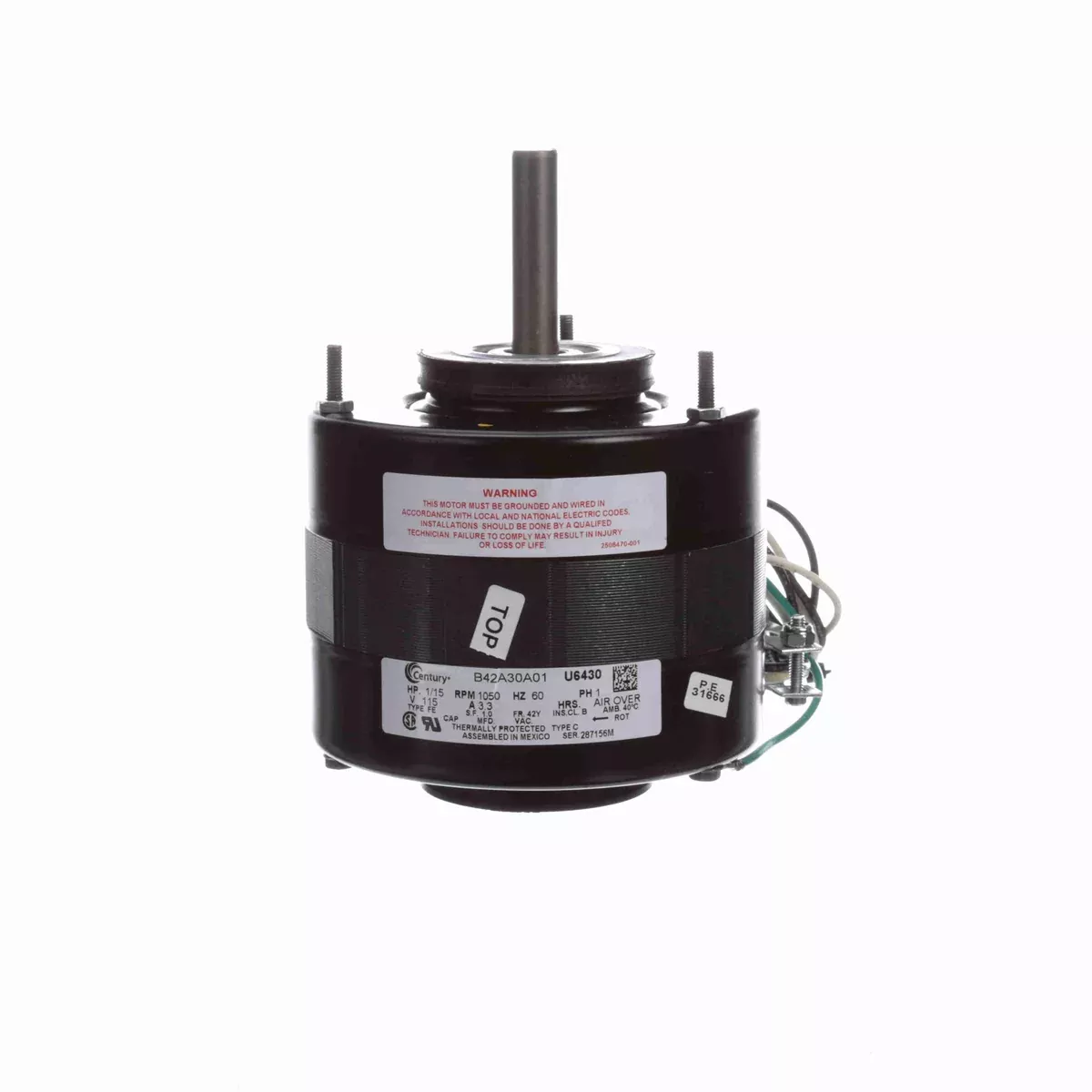

Century U6430 5″ Diameter HVAC Unit Heater Motor – U6430

Original price was: $187.58.Current price is: $118.47.

Sale!
SKU: U6430 Category:
Share
  • Product Type: Shaded Pole
  • HP: 1/15
  • RPM: 1050
  • Volts: 115
  • Amps: 3.3
  • Hz: 60
  • Phase: 1
  • Frame: 42Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 5″
  • Shaft Diameter: 1/2″
  • Shaft Length: 2.67″
  • Rotation: CW Shaft End
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • U6430 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 319P209, A.O. Smith 319P657, A.O. Smith 322P122, A.O. Smith 326P125, A.O. Smith B42A30A01
  • 3 Through Bolts On A 4.42″ Diameter Bolt Circle
  • 36″ Leads
  • Ship Weight: 8 lbs.
