- Product Type: PSC (Permanent Split Capacitor)
- HP: 1/6
- RPM: 1075
- Volts: 115
- Amps: 2.2
- Hz: 60
- Phase: 1
- Frame: 48Y
- Enclosure Type: TEAO (Totally Enclosed Air Over)
- Mounting: Stud/Ring
- Motor Diameter: 5-5/8″
- Shaft Diameter: 1/2″
- Shaft Length: 3.78″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 60° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: 5MFD @ 370VAC (Included)
- UH1016NB is listed in Century’s cross reference as a possible substitute for the following: Dayton 3M899, A.O. Smith F48U61A01, Dayton 4LY86
- 60″ Leads
- Ship Weight: 14 lbs.

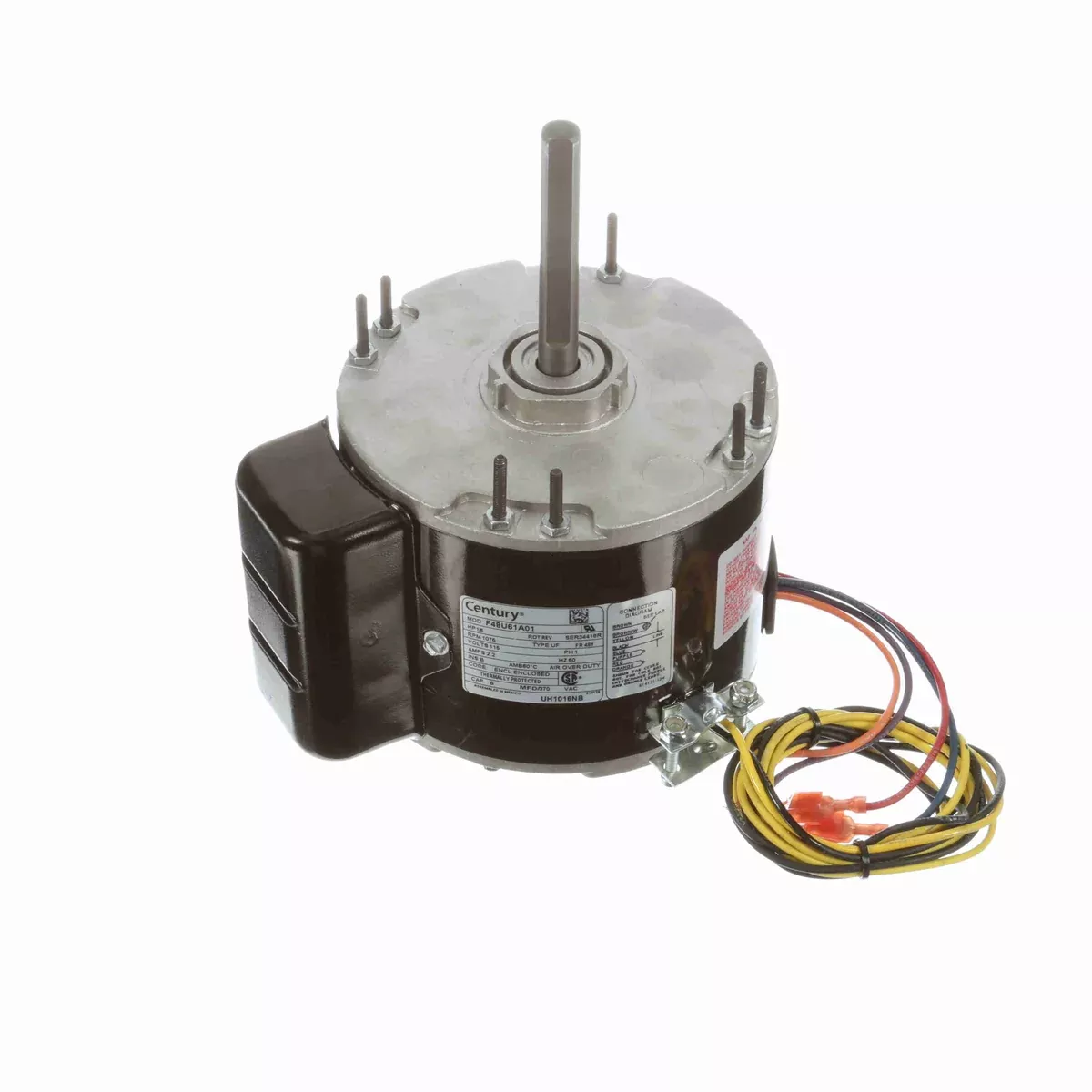

Century UH1016NB 5.6″ Diameter HVAC Unit Heater Motor – UH1016NB
Original price was: $174.85.$96.51Current price is: $96.51.
