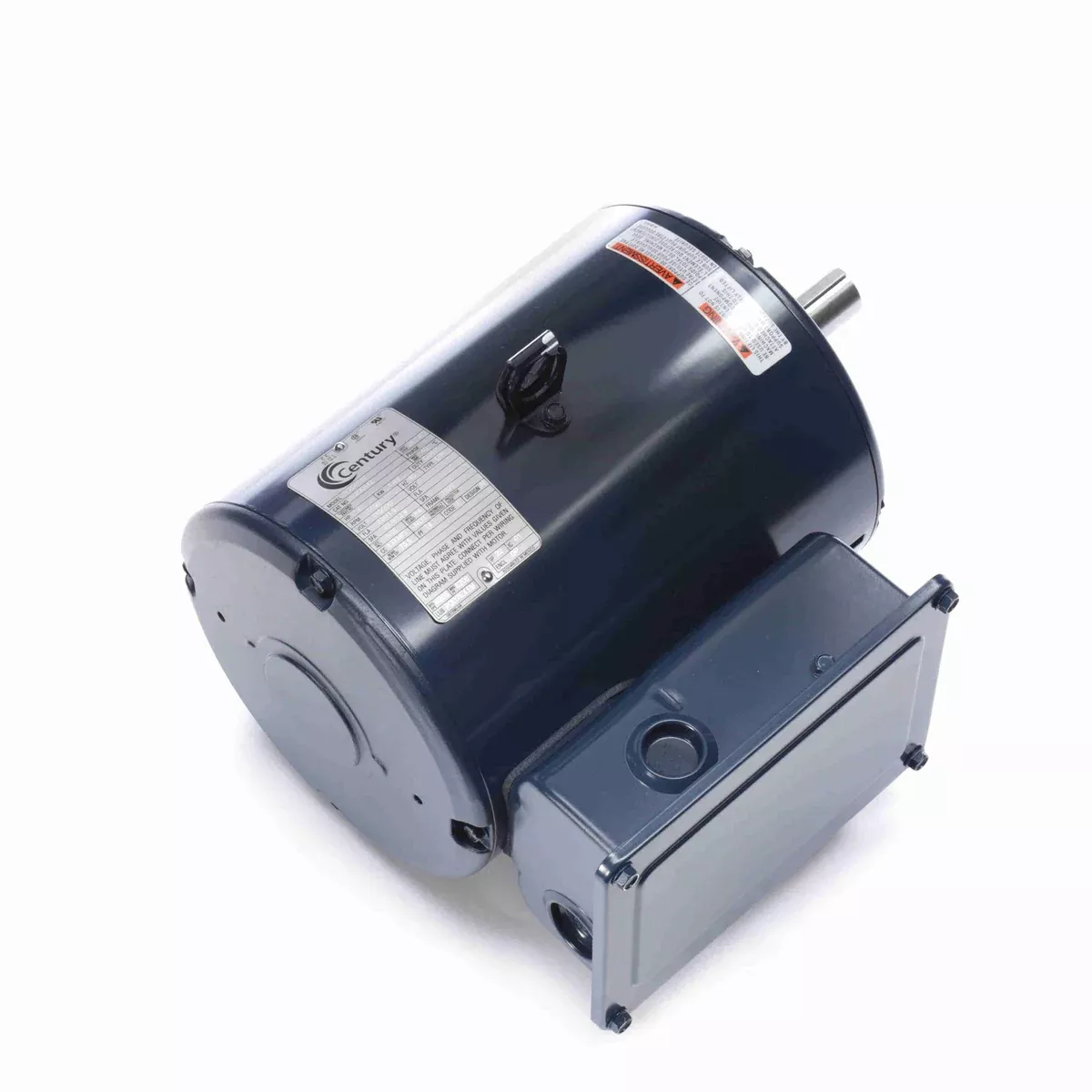

Century V200M2 General Purpose Single Phase Motor – V200M2

Original price was: $517.85.Current price is: $310.74.

Sale!
SKU: V200M2 Category:
Share
  • V200M2 replaces stock V200
  • Product Type: Capacitor Start
  • HP: 2
  • RPM: 1750
  • Volts: 115/230
  • Amps: 23/11.5
  • Hz: 60
  • Phase: 1
  • Frame: 182T
  • Enclosure Type: ODP (Open Dripproof)
  • Enclosure Material: Steel
  • Mounting: Rigid
  • Shaft Diameter: 1-1/8″ Keyed
  • Shaft Length: 2-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: Included
  • V200M2 is listed in Century’s cross reference as a possible substitute for the following: Baldor EL1405T, Carrier/BDP 246-104, Century 331549, Dayton 5K998, Johnstone Supply S91-217, Leeson 130018, Marathon I112, Marathon L112, Marathon V182TCDR7026, U.S.E.M. F076
  • Ship Weight: 60 lbs.
