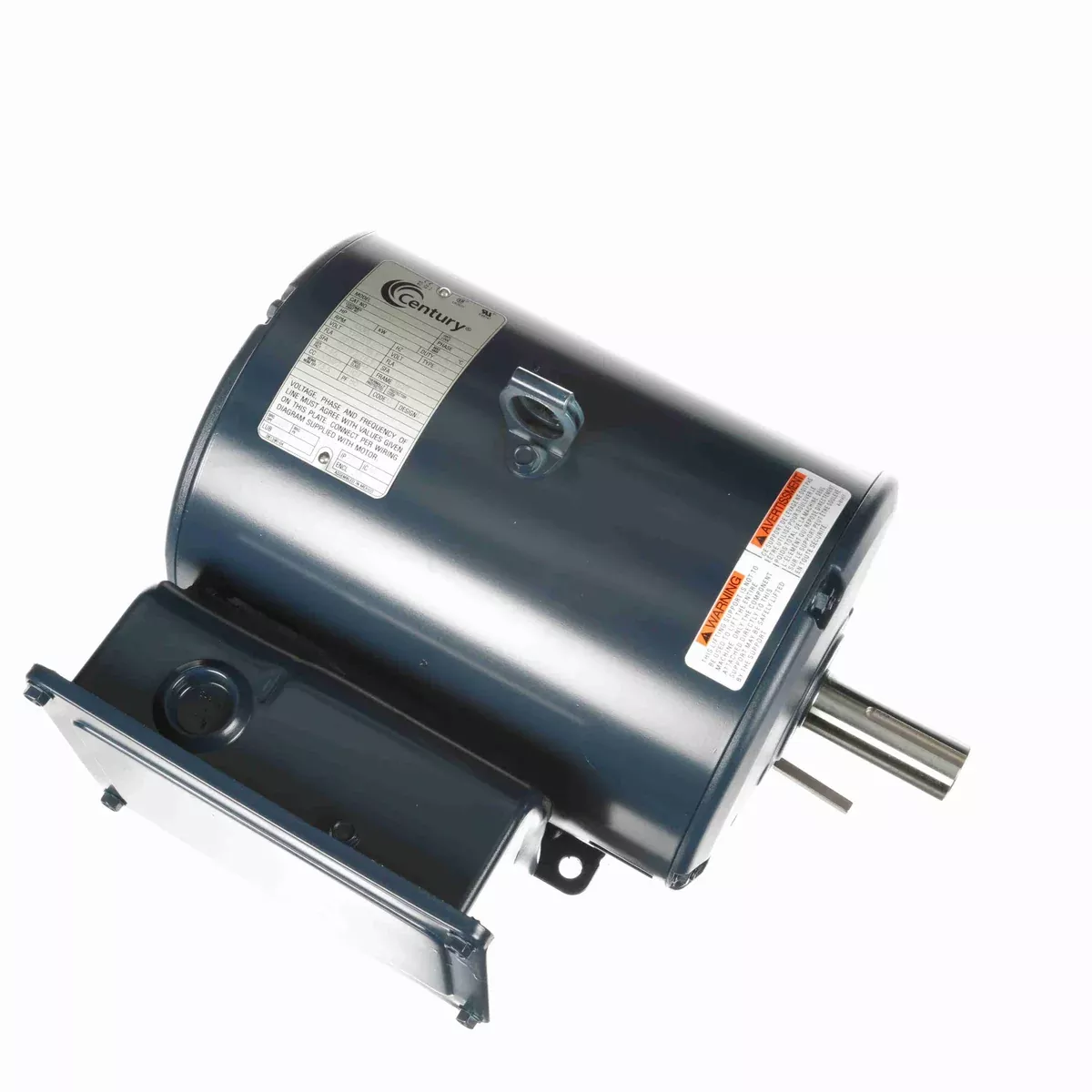

Century V210M2 General Purpose Single Phase Motor – V210M2

Original price was: $321.20.Current price is: $179.39.

Sale!
SKU: V210M2 Category:
Share
  • V210M2 replaces stock V210
  • Product Type: Capacitor Start
  • HP: 3
  • RPM: 3500
  • Volts: 115/208-230
  • Amps: 32/17.1/16.1
  • Hz: 60
  • Phase: 1
  • Frame: 182T
  • Enclosure Type: ODP (Open Dripproof)
  • Enclosure Material: Steel
  • Mounting: Rigid
  • Shaft Diameter: 1-1/8″ Keyed
  • Shaft Length: 2-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: Included
  • V210M2 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 370878, Baldor L1406T, Carrier/BDP 246-106, Century 370878, Johnstone Supply S91-218, Leeson 131262, Lincoln 6K632, Marathon I103, Marathon L103, Marathon V182TCDR7001
  • Ship Weight: 68 lbs.
