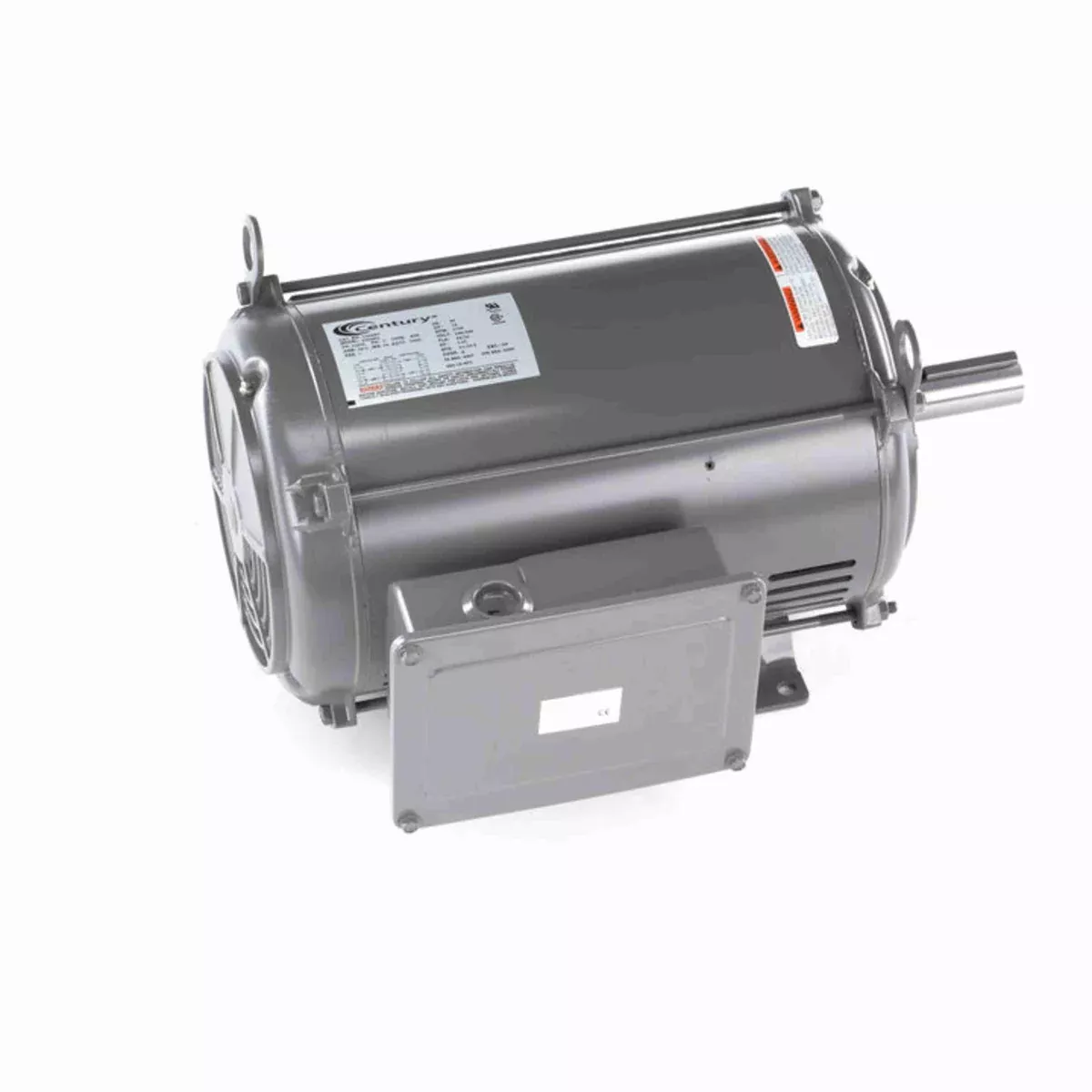

Century V303M2 General Purpose Single Phase Motor – V303M2

Original price was: $627.66.Current price is: $496.81.

Sale!
SKU: V303M2 Category:
Share
  • V303M2 replaces stock V303
  • Product Type: Capacitor Start, Capacitor Run, PSC (Permanent Split Capacitor)
  • HP: 10
  • RPM: 1730
  • Volts: 230/460
  • Amps: 44/22
  • Hz: 60
  • Phase: 1
  • Frame: 215TZ
  • Enclosure Type: ODP (Open Dripproof)
  • Enclosure Material: Steel
  • Mounting: Rigid
  • Shaft Diameter: 1-3/8″ Keyed
  • Shaft Length: 3-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: Included
  • V303M2 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 373255, Baldor GDL1610T, Baldor L1512T, Carrier/BDP 246-113, Century 373255, Dayton 2K499, Johnstone Supply S91-225, Leeson 140311, Marathon I116, Marathon V215TBDR7028, U.S.E.M. F080
  • Large Capacitor And Terminal Box Construction
  • Energy Efficient
  • Ship Weight: 156 lbs.
