Home » Shop » hot sale » Century VB2074B HVAC Evaporator Coil and Refrigeration Fan Motor – VB2074B

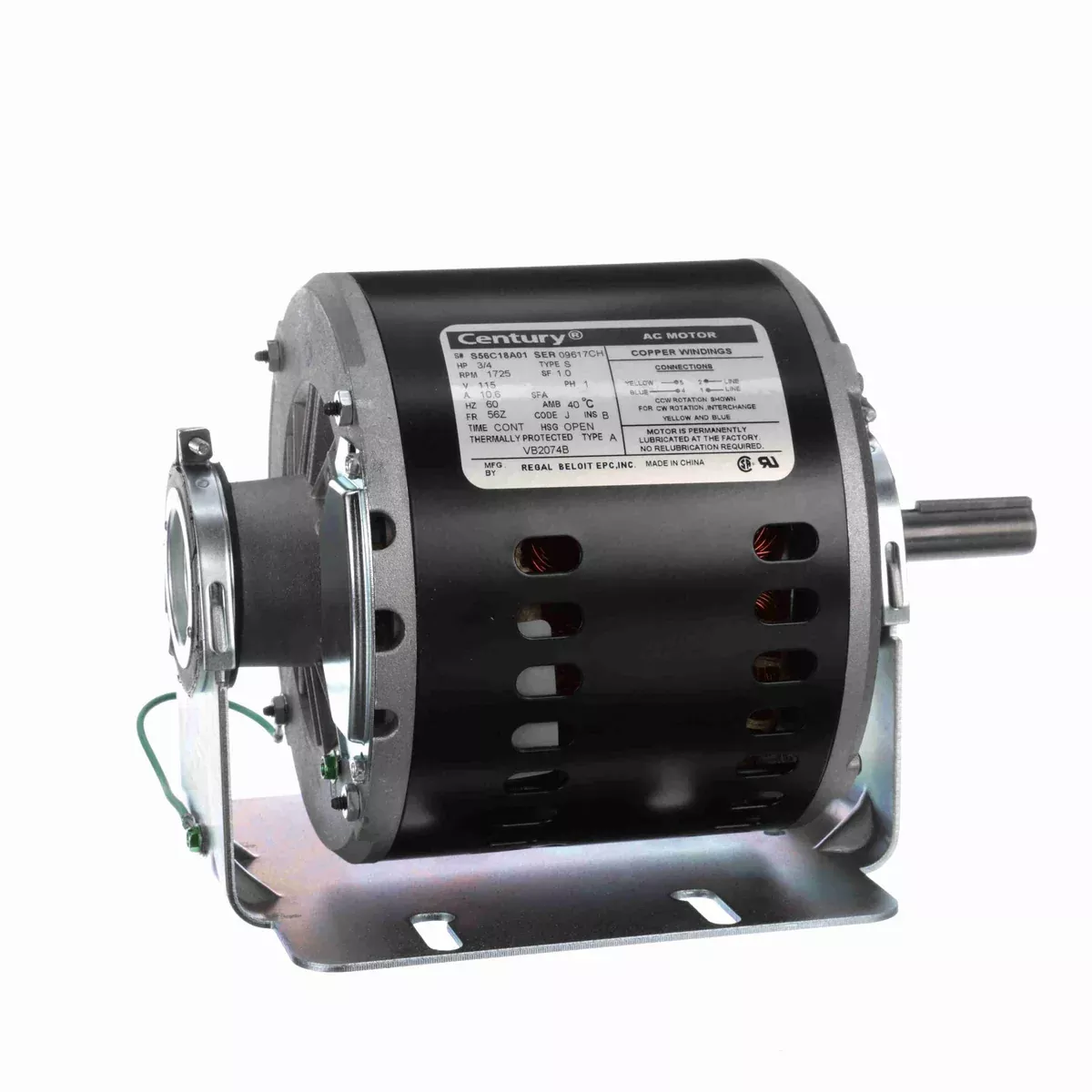

Century VB2074B HVAC Evaporator Coil and Refrigeration Fan Motor – VB2074B

Original price was: $96.22.Current price is: $54.96.

Sale!
SKU: VB2074B Category:
Share
  • VB2074B replaces stock V2074B
  • Product Type: Split Phase
  • HP: 3/4
  • RPM: 1725
  • Volts: 115
  • Amps: 10.6
  • Hz: 60
  • Phase: 1
  • Frame: 56Z
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Cradle
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • VB2074B is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith S56B50A01, A.O. Smith V2074B, Dayton 4UE57, Dayton 6K222
  • Brass Current Carrying Terminal Board Parts
  • Continuous Filtration Of Oil
  • Electro-Zinc Plated Governor Parts, Dust Caps And Terminal Board Cover
  • Heavy Magnet Wire Insulation
  • High Viscosity Encapsulating Varnish
  • Moisture Resistant Terminal Board
  • Includes Base
  • Ship Weight: 18 lbs.
