C200 OBD Manual V2.0
1. The Creator C200 is designed for:
- Private DIY car owners who need to self-inspect the engine malfunction indicator light, clear fault codes and view real-time engine operating data
- Small auto repair shops and roadside maintenance technicians for daily engine emission fault quick diagnosis
- Used car dealers to check hidden engine faults and verify vehicle original ECU information before transactions
- Global maintenance personnel who need multi-language operation for European, American and Asian gasoline & diesel vehicles
- Budget vehicle inspectors focusing on emission-related OBD standard detection
2. Supported Key Functions & Features
OBDII/EOBD Diagnostic Functions
Read generic fault codes (P0, P2, P3, U0)
Read manufacturer specific fault codes (P1, P3, U1)
Read pending fault codes
Clear fault codes
Turn off Check Engine Light (MIL)
Reset emission monitors
Display DTC definitions on screen
View freeze frame data
Read live PCM data stream
Display live PCM data in graph format
Read I/M readiness status
Display live O2 sensor test data
Perform modules present test
Retrieve vehicle information including VIN, CID, and CVN
Hardware Features
2.4 inch color LCD display
320 240 pixel resolution
Contrast adjustment support
Simple button operation
Supports CAN communication and other OBDII protocols
Multilingual menu and DTC definitions
Software update through PC
3. What Vehicles Does It Support?
Creator C200 supports vehicles equipped with OBDII/EOBD diagnostic systems.
Supported Vehicle Coverage
European Vehicles
Petrol vehicles from 2001 and newer with OBDII compliance
Diesel vehicles from 2004 and newer with OBDII compliance
US and Asian Vehicles
Vehicles from 1996 and newer with OBDII compliance
Supported Vehicle Systems
Engine Control Module (PCM)
Emission Control System
O2 Sensor System
CAN Communication System
Other OBDII/EOBD supported systems
Supported Protocols
CAN (Controller Area Network)
Other current OBDII protocols
Note:
Vehicle compatibility depends on vehicle brand, model, year, and OBDII/EOBD system configuration.
4. Please Note the Following Limitations
- Does not support fullsystem diagnosis (ABS, SRS airbag, TPMS, transmission, body control module and other chassis/body electronic systems)
- Not compatible with motorcycles, heavyduty trucks, engineering machinery, agricultural vehicles and nonOBD old cars
- No advanced special functions: ECU programming, key matching, mileage correction, oil service light reset
- Cannot diagnose new energy pure electric vehicles without OBD engine protocol
- Individual ultraniche car models and exclusive manufacturer special fault codes depend on subsequent software upgrades
5. Hardware Accessories & Licensing Requirements
- Authorization & Activation: No paid activation, subscription or annual license fees. All builtin OBD functions are available out of the box.
- Extra Equipment Demand: Only a Windows computer is required for firmware upgrade; no extra adapters or cables needed for supported vehicles.
- Power Supply: Powered by vehicle OBD port DC 8V24V, no separate charger required.
6. Creator C200 Specification
- Display: 2.4inch Color LCD, 320 x 240 pixel display with contrast adjustment
- Operation Temperature: -20 ~ 75
- Storage Temperature: -40 ~ 120
- Power Supply: DC 8V24V
- Upgrade Requirement: Windows PC required for firmware update; Mac OS not supported
- Daily Operation: Standalone handheld device, no phone or computer needed for regular diagnosis
7. Software Update
- Upgrade Method: Connect device to Windows PC via USB cable for offline firmware upgrade
- Update Cost: Routine firmware iteration updates are free of charge
- Free Update Term: No official time limit for free basic firmware updates; confirm longterm update policy with supplier before purchase
8. Global Version
Full unrestricted global version without regional lock. Supported languages: English, Simplified Chinese, Traditional Chinese, German, Dutch, Spanish, Russian, applicable for all countries and regions worldwide.
9. Warranty
Standard hardware warranty follows supplier unified aftersales policy. Free technical support for device operation and upgrade issues. Confirm specific warranty duration with your supplier at the time of purchase.
10. Package List

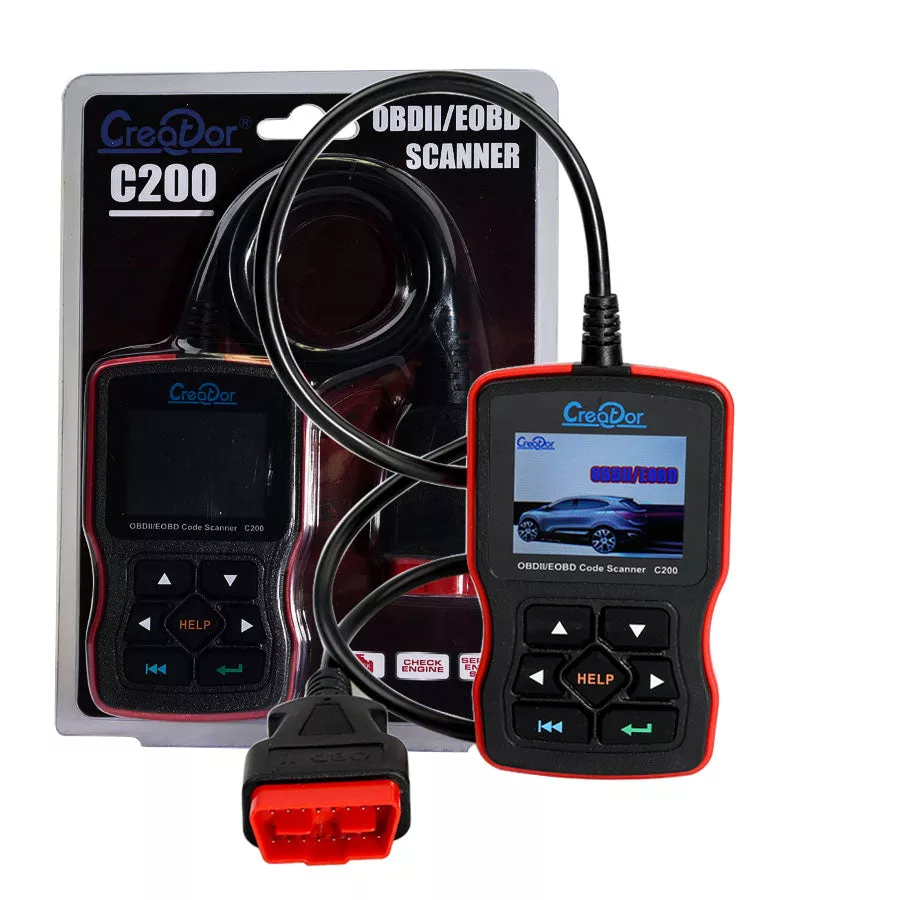

1pc x Creator C200 OBDII/EOBD Code Reader
