GODIAG ECU IMMO Prog AD GT105 OBD II Break Out Box ECU Connector + Full Protocol OBD2 Universal Jumper

1. The GODIAG GT105 is Designed for:

• Professional ECU remapping & chip tuning technicians doing bench/OBD ECU read, write and clone
• Auto locksmiths specializing in all-keys-lost matching, IMMO system wake-up and synchronization
• Luxury car repair shops handling VAG, Ford, Porsche, Toyota anti-theft module repair
• Mobile roadside maintenance engineers needing stable 12V outdoor power supply
• General repair shops for battery replacement backup power to avoid ECU data loss
• Automotive electronics training schools for CAN/K-Line communication and ECU bench teaching
• Technicians using MPPS, KESS V2, FGTECH, Autel, Xhorse, OBDSTAR diagnostic tools

2. Supported Key Functions & Features

ECU Programming Connection & Data Operations

GT105 provides a stable OBD2 connection between ECU modules and programming equipment for:

ECU data reading and writing
ECU cloning
ECU tuning
ECU programming
ECU module diagnosis

Compatible programming equipment includes:

MPPS
FGTech
KESS V2
PCMFlash
Other OBD2 ECU programming devices

Battery Replacement Power Protection

GT105 provides uninterrupted power during vehicle battery replacement to help prevent:

ECU data loss
IMMO data loss
Audio system locking
Remote key reset
Window regulator reset
Throttle valve relearning
Unexpected fault codes caused by power interruption

IMMO & Key Programming Assistance

When used with compatible IMMO programming tools, GT105 supports:

All keys lost matching assistance
IMMO ECU wake-up
Instrument cluster wake-up
Smart key programming assistance
ECU synchronization assistance

12V Outdoor Power Supply

GT105 can obtain 12V power directly from the vehicle battery and provide power for:

Xhorse Key Tool Plus Pad
VVDI Prog
CGDI Prog
AUTEL IMMO devices
OBDSTAR IMMO devices
12V-powered key cutting machines

Communication Status Detection

GT105 features communication indicators for:

PWM communication
CANH communication
CANL communication
K-Line communication

The flashing indicators allow technicians to check whether communication between the vehicle and diagnostic equipment is active.

OBD2 Universal Jumper Features

Full protocol OBD2 jumper design
Independent PIN4 body ground and PIN5 signal ground
Switchable PIN4/PIN5 short circuit function
Pure copper female socket for long service life
Ignition simulation switch
Dedicated programming power connection port
Safety-protected DC power interface with resettable 7A fuse

Functions Display:A. Connect ECU module, special power supply to read and write ECU data, ECU clone, programming and adjustment.
B. GT105 provides uninterrupted power supply during the car battery replacement process to protect the car ECU data.C. OBD2 universal jumperD. After 2016, when all Ford smart keys are lost, GT105 cooperates with VVDI equipment (OBDSTAR, AUTEL) and other IMMO matching equipment to program the keys.All car keys lost matching—wake up the meter or wake up the IMMO ECU. (Support VAG 4th and 5th generation IMMO, Toyota ECU synchronization, auxiliary Mitsubishi key all-lost matching or all-lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)E.VPW CANH CANL K-Line indicator light can judge the communication status between the vehicle and the diagnostic programming device. (If the connected device can determine whether the device can send communication, simply determine whether the diagnostic programming is normal.)F. IMMO AD Ford all lost smart keys, VVDI equipment (OBDSTAR, AUTEL) and other IMMO matching equipment. For all-loss matching, you need to disconnect the car battery, connect the negative pole of the battery via OBD5, and connect the 16 pin to the positive pole of the 12v battery.Example: Use the Xhorse Key Tool Plus Pad to match a new Ford model after 2017. In the state of all keys lost, the vehicle is in the alarm state, and the tablet cannot be used for matching. If you want to match the keys, you must release the IMMO state.If the vehicle has entered the IMMO state. Disconnect the positive pole of the battery as prompted by the device, and then connect the vehicle battery with the GT105 power adapter cable, as the picture shows.(In the process of key matching, the external 12V power supply is always maintained, no need to disconnect)Follow the instructions on the Xhorse Key Tool Plus Pad to match the keys.
G. All lost car keys match—wake up the meter or wake up the IMMO ECU.Porsche and VW 4th generation smart, 5th generation card key (model list: new A6L Touareg A4 Q5 A7) lights up the instrument, the key matching tool is connected for data collection. Some vehicle instruments do not light up, but data collection can also be performed, for example: A6L Q7.H.Toyota replaces the engine ECU, the IMMO ECU needs to be synchronized, or some key matching equipment can match all lost keys of Toyota vehiclesI. Mitsubishi key lost all matching or all lost remote control key settings.
J. IMMO key learning for old Porsche Cayenne
K. Outdoor operation power collectionWhen the locksmith or ECU engineer cannot get the 12V power supply in the outdoor operation, he can use the GT105 power adapter cable to obtain the 12V power supply from the car battery.Provides power to a 12V powered key cutter

3. What Vehicles Does It Support?

GODIAG GT105 is a universal OBD2 connection and power supply adapter. Vehicle coverage depends on the connected diagnostic/programming equipment and software.

Supported Communication Systems

Supports vehicles equipped with:

OBD2 interface
CAN communication system
K-Line communication system
PWM communication system

Supported Vehicle Applications

Ford

Supports Ford smart key all keys lost assistance on many models after 2016 when used with compatible IMMO equipment.

Functions include:

IMMO status release assistance
Smart key matching assistance
All keys lost programming support

Volkswagen Group (VAG)

Supports selected VAG vehicles:

Volkswagen
Audi
Other VAG models

Functions include:

4th generation IMMO wake-up
5th generation IMMO wake-up
Instrument cluster activation

Toyota

Supports:

Engine ECU replacement synchronization assistance
IMMO ECU synchronization
All keys lost matching assistance

Mitsubishi

Supports:

All keys lost matching assistance
Remote key setting assistance

Porsche

Supports selected older Porsche models:

IMMO key learning
Cayenne key programming assistance

Example Supported Applications

VW/Audi 4th and 5th generation IMMO systems
Toyota ECU synchronization
Mitsubishi key matching
Old Porsche Cayenne IMMO learning
Ford smart key all keys lost assistance

4. Please Note the Following Limitations

1. Only for 12V passenger cars; incompatible with 24V heavy trucks, construction machinery, motorcycles
2. Cannot independently complete key programming or ECU flashing; must work with third-party ECU/TPMS programmers
3. Does not support pure LIN-bus ECUs without CAN/K-Line communication pins
4. Cannot repair physical burnt ECU circuit boards; only provides signal conversion and stable power output
5. Special resistors required for partial brand IMMO short-circuit operations (included in package)
6. Not waterproof; only used in dry indoor or sheltered outdoor environments
7. Does not support new energy high-voltage battery system diagnosis

5. Hardware Accessories & Licensing Requirements

• No hardware activation, annual subscription or hidden authorization fees; fully unlocked after unpacking
• Mandatory Separate Matching Devices (sold individually):
  ECU Programmers: MPPS, KESS V2, FGTech, PCMTuner, DISPROG, BYSHUT
  Key Programmers: Xhorse Key Tool Plus, VVDI Prog, CGDI Prog, Autel IM series, OBDSTAR
• All core matching accessories (battery clip power cord, full-protocol jumper, resistors) are pre-included in the standard set; no extra adapters required for mainstream operations
• No paid software license tied to GT105 itself; all function limits depend on your paired programming tools authorization

6. Software Version & Supported Operating Systems

• GT105 is passive breakout hardware without built-in firmware, CPU or independent operating system
• All ECU read/write and key matching operations rely on the official software of your matched programming device
• Supported PC System for paired tools: Windows 7 / Windows 10 / Windows 11 (32bit & 64bit); Mac OS & Linux are not supported
• No dedicated PC or mobile APP for GT105 itself; all adjustments are operated via physical switches on the breakout box

7. Software Update

• No onboard upgradable firmware inside GT105, zero update cost and no free update expiration date
• All new vehicle protocol expansions and compatibility upgrades are completed via your matching ECU/key programmers official online updates
• No annual renewal or one-time upgrade fees generated by using GT105

8. Global Version
100% fully global unlocked version without regional lock, IP or country function shielding. All CAN/K-Line/VPW OBD protocols for European, American and Asian vehicles are pre-supported; no area-locked function restrictions.
9. Warranty

• Standard manufacturer hardware warranty: 12 months counted from original purchase date
• Warranty Coverage: Factory defects of main circuit board, indicator lights, OBD port, wiring harness and internal resettable fuse under standard dry workshop operation
• Warranty Exclusions: Damage caused by reverse power connection, overcurrent overload, liquid corrosion, unauthorized disassembly, artificial wire cutting and violent plugging
• 30-day return service (buyer bears return shipping cost for non-quality issues); lifetime free text & email technical support

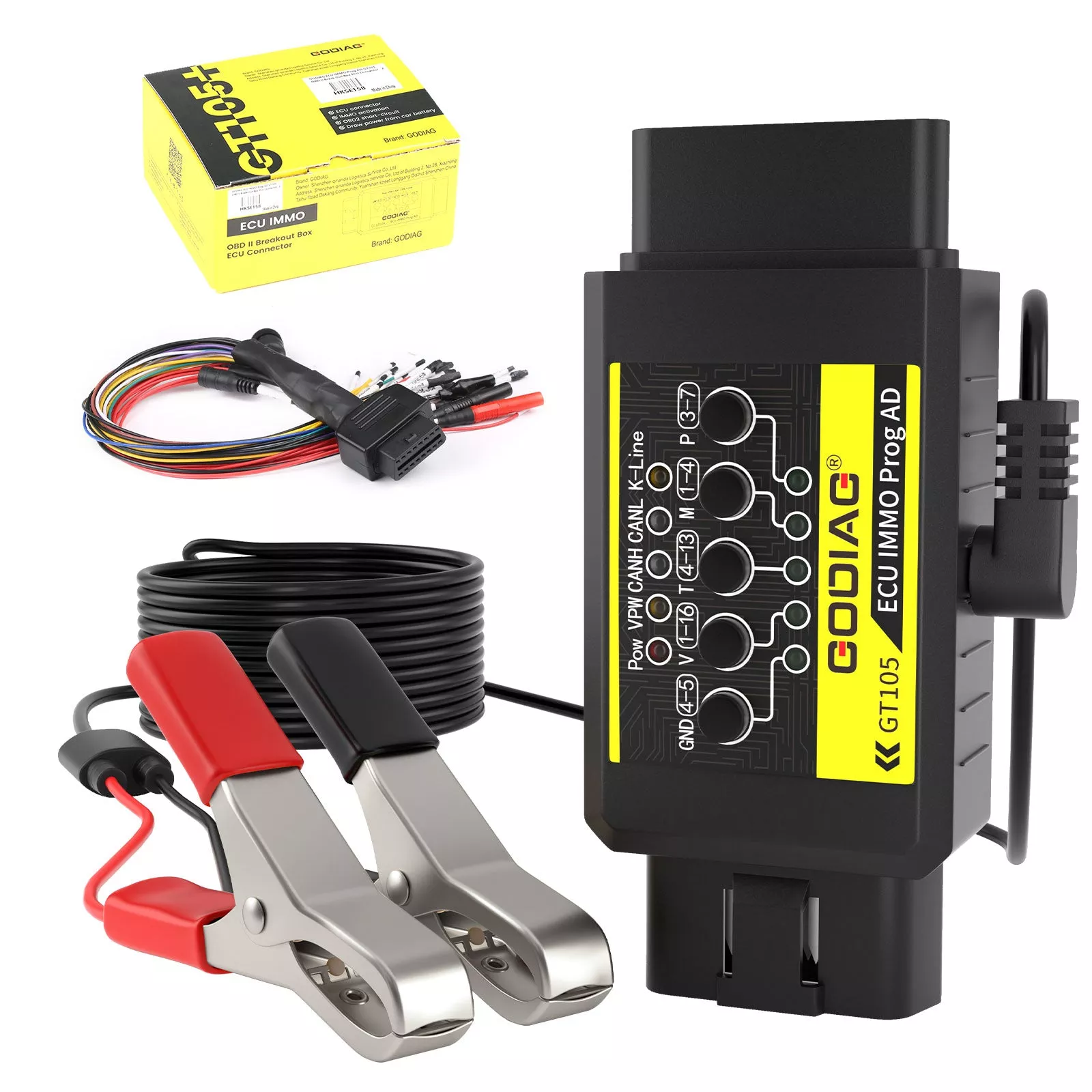

10. Package List
1pc x GT105 host
1pc x Power cord with battery clip

1pc x Full protocol OBD2 jumper

3pcs x Electrical resistance
Indicator Light Meaning
