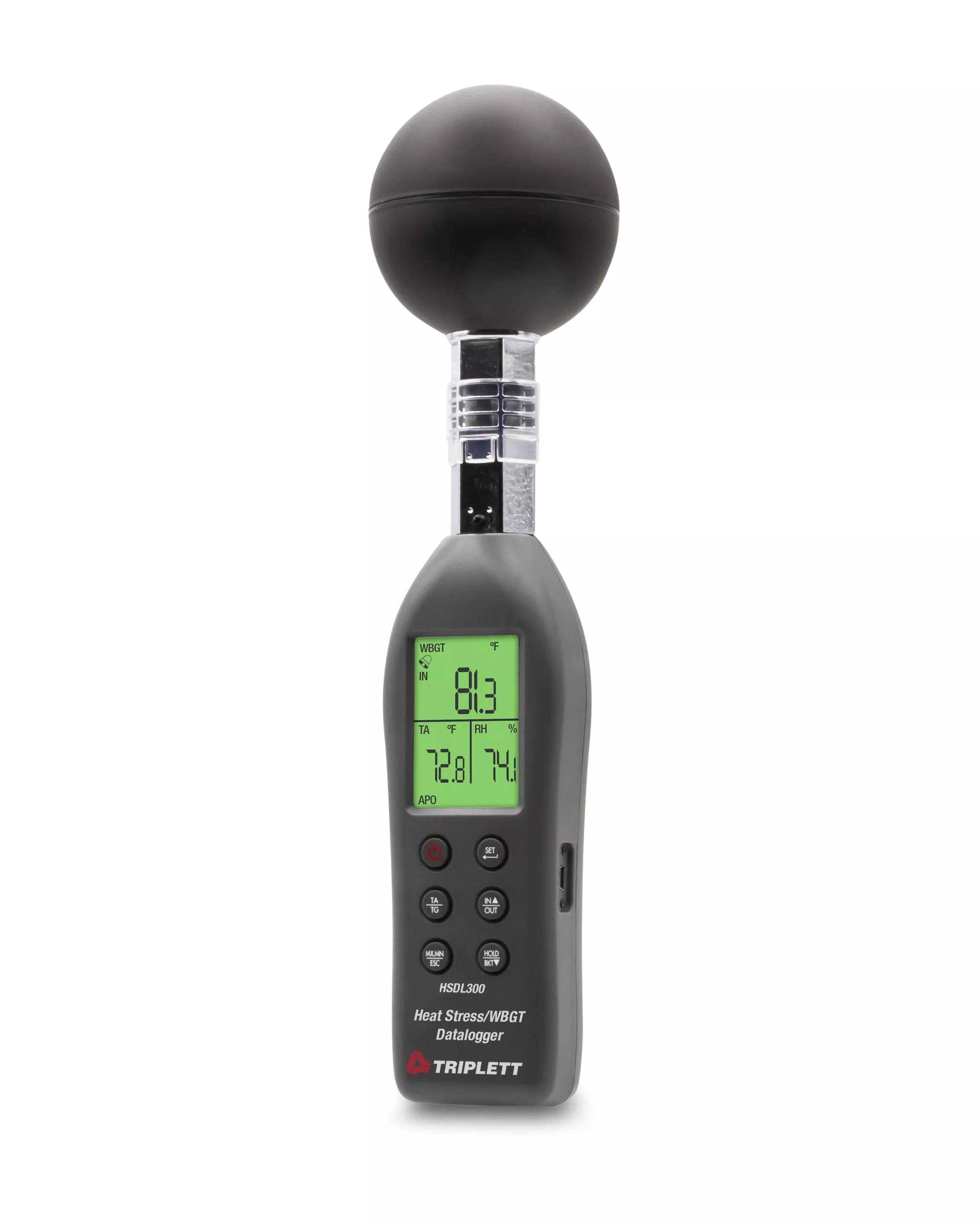

The Triplett Model HSDL300 Heat Stress WBGT (Wet Bulb Globe Temperature) Meter monitors indoor/outdoor heat stress to help limit the danger of heat-related injury. It simultaneously displays Air or Globe Temperature, Humidity, and Wet Bulb Globe Temperature (WBGT). Memory stores up to 12,000 readings each containing Air Temperature, Humidity, WBGT, and Globe Temperature with a user programmable sampling rate of 1, 5, 10, 30, 60, 90, 120 minutes. Read More>
DESCRIPTION
The Triplett Model HSDL300 Heat Stress WBGT (Wet Bulb Globe Temperature) Meter monitors indoor/outdoor heat stress to help limit the danger of heat-related injury. It simultaneously displays Air or Globe Temperature, Humidity, and Wet Bulb Globe Temperature (WBGT). Memory stores up to 12,000 readings each containing Air Temperature, Humidity, WBGT, and Globe Temperature with a user programmable sampling rate of 1, 5, 10, 30, 60, 90, 120 minutes. A USB interface is used for transferring stored readings to your PC in csv format. It features a programmable audible and visual WBGT alarm and a backlight that changes color as the WGBT value increases (Green/ Yellow/Red/Flashing Red). An In/Out function switch measures WBGT with or without the effects of direct sunlight. F/C switchable. Tripod mount can be used to free-up your hands when taking measurements over an extended amount of time. Includes (4) AAA batteries and a mini USB cable. 1-year warranty. For outdoor athletic training and events, construction, iron and steel foundries, brick firing plants, glass facilities, boiler rooms, mining sites, and other areas where heat stress levels should be monitored.
CATEGORY: ANEMOMETERS, DIGITAL LIGHT METERS, HUMIDITY METERS, SOUND METERS
Features
- Monitors indoor/outdoor heat stress to help limit the danger of heat-related injury
- Simultaneously displays Air Temperature or Globe Temperature, Humidity, and Wet Bulb Globe Temperature (WBGT)
- Memory stores up to 12,000 readings each containing Air Temperature, Humidity, WBGT, and Globe Temperature
- User programmable sampling rate of 1, 5, 10, 30, 60, 90, 120 minutes
- Programmable audible and visual WBGT alarm 68 to 122F/20 to 50C
- Backlight changes color with WGBT value: No backlight below 80F (26.7C); Green 80 to 85F (26.7 to 29C); Yellow 85 to 88F (29.4 to 31C); Red 88 to 90F (31 to 32.2C); Flashing Red above 90F (32.2C)
- In/Out function switch for measuring WBGT with or without the effects of direct sunlight
- F/C switchable
- USB interface for transferring stored readings to your PC in csv format
- Tripod mount can be used to free-up your hands when taking measurements over an extended amount of time
- Includes (4) AAA batteries and mini USB Cable
Specifications
| HSDL300 | |
| Air Temperature | 32 to 122F (0 to 50C) |
| Accuracy | 1.8F/0.6C |
| Relative Humidity | 0.1 to 99.9%RH |
| Accuracy | 3%RH (10 to 90%RH) |
| Globe Temperature | 32 to 176F (0 to 80C) |
| WBGT Temperature | 32 to 122F (0 to 50C) |
| WBGT Alarm range | 68 to 122F (20 to 50C) |
| Sampling Rate | 0 , 5, 10, 30, 45, 60, 90, 120 mins |
| Start Delay Time | 0 , 5, 30, 45, 60, 90, 120 mins |
| Memory | 12,000 readings (csv format) |
| Black Ball diameter | 3″ (75mm) |
| Power | 4 AAA Batteries |
| Dimensions | 12 x 3 x 1.5″ (302 x 75 x 37mm) |
| Weight | 10.6oz (300g) |
Downloads
Datasheet
User Manual
FAQs
- Q. How do I change the unit of measure on the Triplett HSDL300?
A.To change units hold the set key for 3 seconds until screen changes. Then press the down arrow. UNT should appear on the screen, then press the set key again. You may now use the arrows to change between F and C. once done press the set key ten the Esc key. You should now be in your preferred unit of measurement - Q.Is there a specific calibration procedure for the HSDL300
A.NO. None of the parameters in the HS10are adjustable - Q. The specifications state the operating RH% is <80%. If operating above 80% RH does/will this affect readings?
A.Please avoid condensation while RH is too high. Condensation will cause 99.9% display and might not revert to good condition even after days of water evaporation
MORE INFO
Every year, dozens of workers die and thousands more become ill while working in extreme heat or humid conditions. Heat illnesses can affect anyone, regardless of age or physical condition. For example, even elite athletes need to take precautions while practicing their sports in extreme heat conditions. Monitoring the Heat Index (HI) and the Wet Bulb Globe Temperature (WBGT) help you to respond to these conditions, providing plenty of water, rest and shade!
The Wet Bulb Globe Temperature (WBGT) is a measure of heat stress in direct sunlight. Here, temperature, humidity, wind speed, sun angle and cloud cover (solar radiation) are calculated. This differs from the Heat Index, which calculates temperature and humidity for shady areas. The Triplett HS10 monitors indoor/outdoor heat index, as well as wet bulb globe temperature to keep you aware of ever-changing conditions to help limit the danger of heat-related injury. This is the perfect safety tool!
Applications include outdoor athletic training and events, construction, iron and steel foundries, brick firing plants, glass facilities, boiler rooms, mining sites, and other areas where heat index levels should be monitored.
Keep cool and dont let Heat Stress Stress you out!
