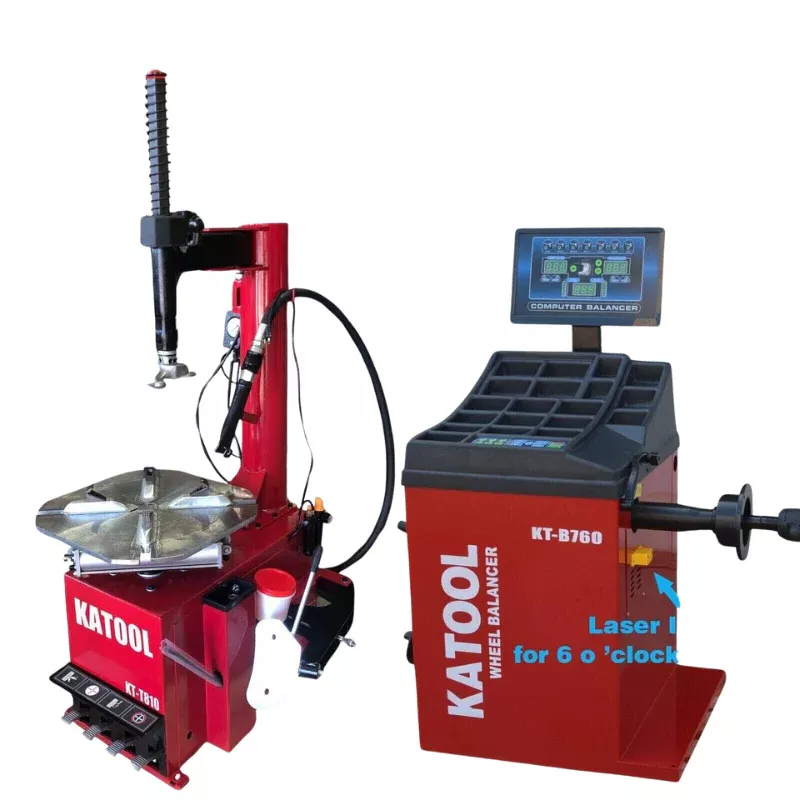

The Katool KT-T810 & KT-B760 Combo is a complete, shop-ready tire service solution designed to handle everything from tire removal to final balance without slowing your workflow down. Instead of relying on separate machines or outsourcing work, this setup gives you full control over mounting, demounting, and balancingright inside your shop. Its built for real-world use where speed, consistency, and reliability matter every day.
At the core of this combo is a durable KT-T810 tire changer paired with the precision-focused KT-B760 wheel balancer. Together, they create a smooth, efficient workflow that allows technicians to move from one step to the next without unnecessary downtime. Whether youre handling routine tire swaps, maintenance work, or steady daily volume, this setup is designed to keep jobs moving and bays turning over faster.
Built with professional environments in mind, both machines feature heavy-duty construction, straightforward controls, and dependable performance across common passenger and light truck wheel sizes. This makes the combo a strong fit for growing shops, established repair centers, or tire-focused businesses looking to improve efficiency, bring more work in-house, and deliver consistent, high-quality results.
Key Features & Benefits
- Carburized Alloy Steel Jaws Hardened exterior with strong inner structure for durability and grip
- Stainless Steel Mounting Head Smooth contact with protective cover to reduce rim damage
- Pedal-Controlled Inflation System Easier tire seating and airflow control
- Pull-Type Pedal Controls Simple, responsive operation for faster tire changes
- High-Performance Copper Motor Better heat dissipation and longer lifespan
- 1g Balancing Accuracy Precise results for smoother driving and reduced tire wear
- Automatic Measurement Input Quickly captures A & D values for faster setup
- Multiple Balancing Modes Works with different wheel types and rim styles
- Self-Diagnostics & Calibration Keeps performance consistent over time
- Moisture & Dust Resistant Electronics Longer-lasting internal components
KT-T810 Tire Changer
| Specifications | Details |
|---|---|
| Max Wheel Diameter | 41″ (1040 mm) |
| Max Wheel Width | 15″ (380 mm) |
| Outside Clamp Range | 12″ 22″ |
| Inside Clamp Range | 14″ 24″ |
| Power Supply | 120V / 1PH |
| Motor Power | 2.0 HP (1.5 kW) |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8 1.0 MPa (116 145 PSI) |
| Net Weight | 186 kg |
KT-T810 Key Features
- Carburized alloy steel jaws for durability and grip
- Stainless steel mounting head with protective cover
- Pedal-controlled inflation system
- Pull-type pedal controls for easy operation
- High-performance copper motor with better heat dissipation
- Air filtration & lubrication system
- Closed body construction for internal component protection
- Rim protection components (spade cover and jaw covers)
- Optimized 120V setup for North American shops
KT-B760 Wheel Balancer
| Specifications | Details |
|---|---|
| Rim Diameter | <30" |
| Wheel Width | 3″ 12″ |
| Max Wheel Diameter | <880 mm |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Max Wheel Weight | <65 kg |
| Rim Center Hole Diameter | <135 mm |
| Balancing Accuracy | 1g |
| Measuring Time | ~7 seconds |
| Warranty | 12-Month Parts Warranty |
KT-B760 Key Features
- Automatic measurement input (A & D values)
- Advanced sensor system for stable readings with minimal vibration
- Multiple balancing modes for different wheel types and rim styles
- Self-diagnostics & calibration for consistent performance
- Heavy-duty steel construction
- Moisture & dust resistant electronics
- High-strength quenched shaft for improved durability
- Extended shaft design for wider wheels
- Optional wheel guard
Best Fit For
- Automotive repair shops
- Tire service businesses
- High-volume garages
- Shops upgrading from entry-level equipment
Documents
- KT-T810 Manual
- KT-B760 Manual
