- Product Type: Capacitor Start
- HP: 1/6
- RPM: 1725
- Volts: 115/208-230
- Amps: 4.2/2.1
- Hz: 60
- Phase: 1
- Frame: 42
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Enclosure Material: Rolled Steel
- Mounting: Rigid Base
- Shaft Diameter: 0.375″
- Shaft Length: 1.12″
- Motor Shell Length: 6.00″
- Overall Length: 9.44″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor: 1.15
- Bearings: Ball
- Efficiency: 50.0%
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Ship Weight: 20 lbs.

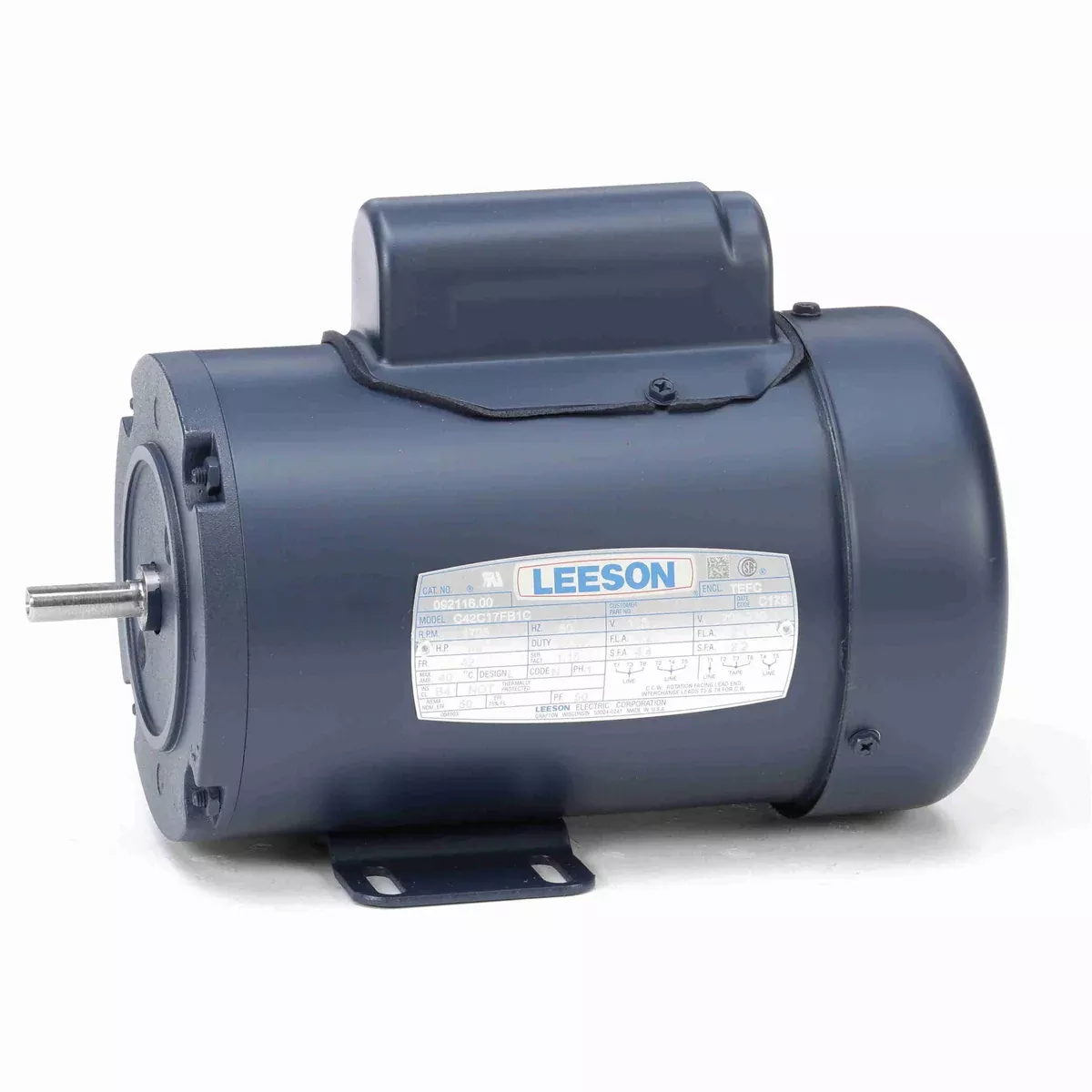

Leeson 092116.00 Capacitor Start General Purpose Motor
Original price was: $306.45.$207.11Current price is: $207.11.
