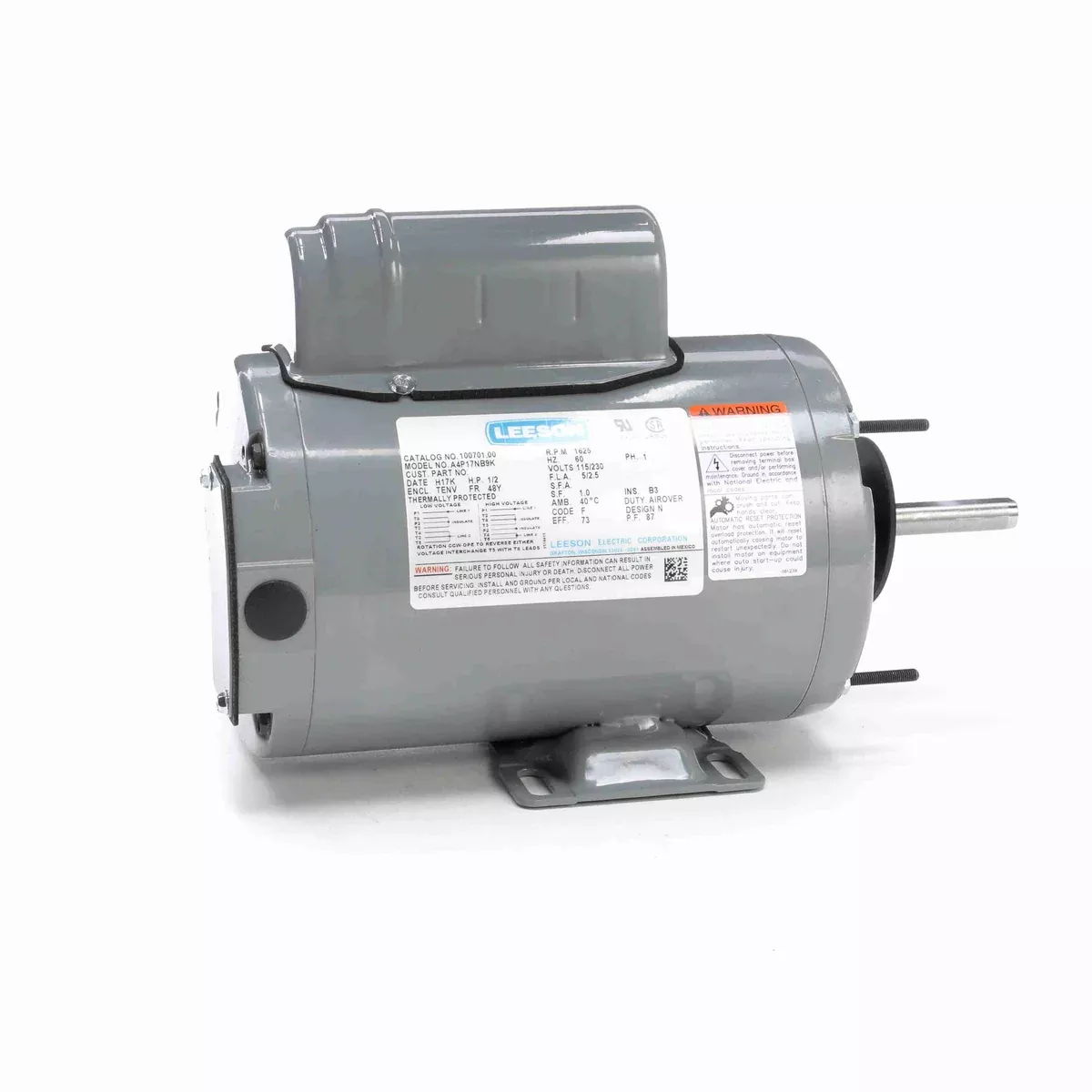

Leeson 100701.00 PSC (Permanent Split Capacitor) General Purpose Farm Duty Motor

Original price was: $257.42.Current price is: $196.44.

Sale!
SKU: 100701 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/2
  • RPM: 1625
  • Volts: 115/230
  • Amps: 5.0/2.5
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Enclosure Material: Rolled Steel
  • Mounting: Rigid Base
  • Shaft Diameter: 0.500″
  • Shaft Length: 2.5″
  • Motor Shell Length: 7.00″
  • Overall Length: 12.15″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.0
  • Bearings: Ball
  • Efficiency: 73.0%
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Ship Weight: 24 lbs.
