- Product Type: Capacitor Start
- HP: 1/4
- RPM: 1725
- Volts: 115/208-230
- Amps: 5.4/2.4-2.7
- Hz: 60
- Phase: 1
- Frame: 48C
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Enclosure Material: Rolled Steel
- Mounting: Round
- Shaft Diameter: 0.500″
- Shaft Length: 1.5″
- Motor Shell Length: 4.75″
- Overall Length: 9.19″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor: 1.15
- Bearings: Ball
- Efficiency: 56.0%
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Ship Weight: 17 lbs.

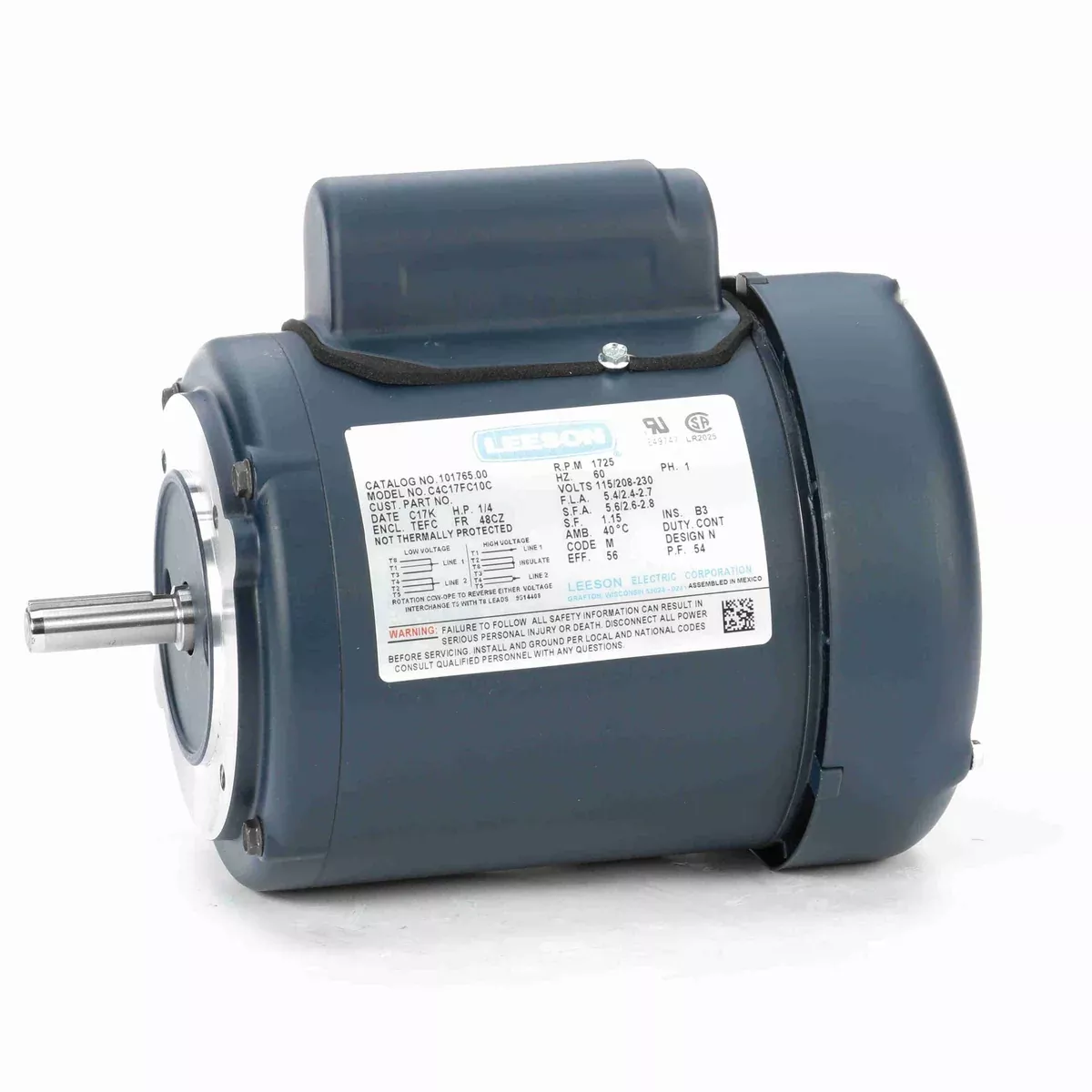

Leeson 101765.00 Capacitor Start General Purpose Motor
Original price was: $270.87.$190.80Current price is: $190.80.
