- Product Type: Three Phase
- HP: 1/2
- RPM: 1725
- Volts: 208-230/460
- Amps: 1.8-1.8/0.90
- Hz: 60
- Phase: 3
- Frame: 56C
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Enclosure Material: Rolled Steel
- Mounting: Round
- Shaft Diameter: 0.625″
- Shaft Length: 1.88″
- Motor Shell Length: 6.00″
- Overall Length: 10.69″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor: 1.15
- Bearings: Ball
- Efficiency: 77.0%
- Thermal Protection: Thermostat
- Maximum Ambient Temperature: 40° C
- Insulation Class: F
- Duty Cycle: Continuous
- Inverter Duty: Yes – Constant 10:1
- Ship Weight: 21 lbs.

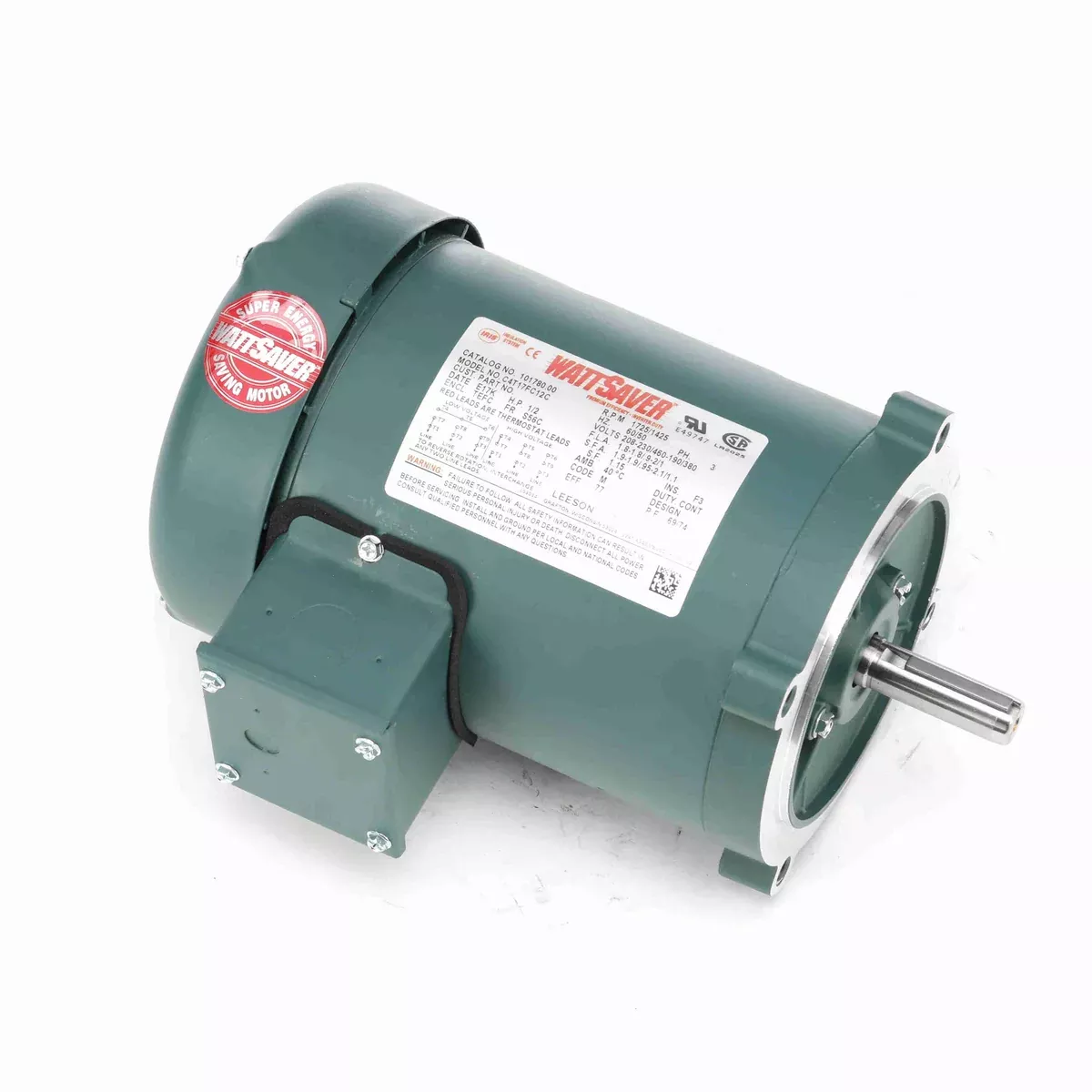

Leeson 101780.00 Three Phase WATTSAVER™ General Purpose Motor
Original price was: $397.51.$292.14Current price is: $292.14.
