- Product Type: Capacitor Start
- HP: 1/2
- RPM: 3450
- Volts: 115/208-230
- Amps: 7.0/3.4-3.5
- Hz: 60
- Phase: 1
- Frame: 56C
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Enclosure Material: Rolled Steel
- Mounting: Round
- Shaft Diameter: 0.625″
- Shaft Length: 1.88″
- Motor Shell Length: 5.25″
- Overall Length: 9.94″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor: 1.15
- Bearings: Ball
- Efficiency: 66.0%
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Ship Weight: 20 lbs.

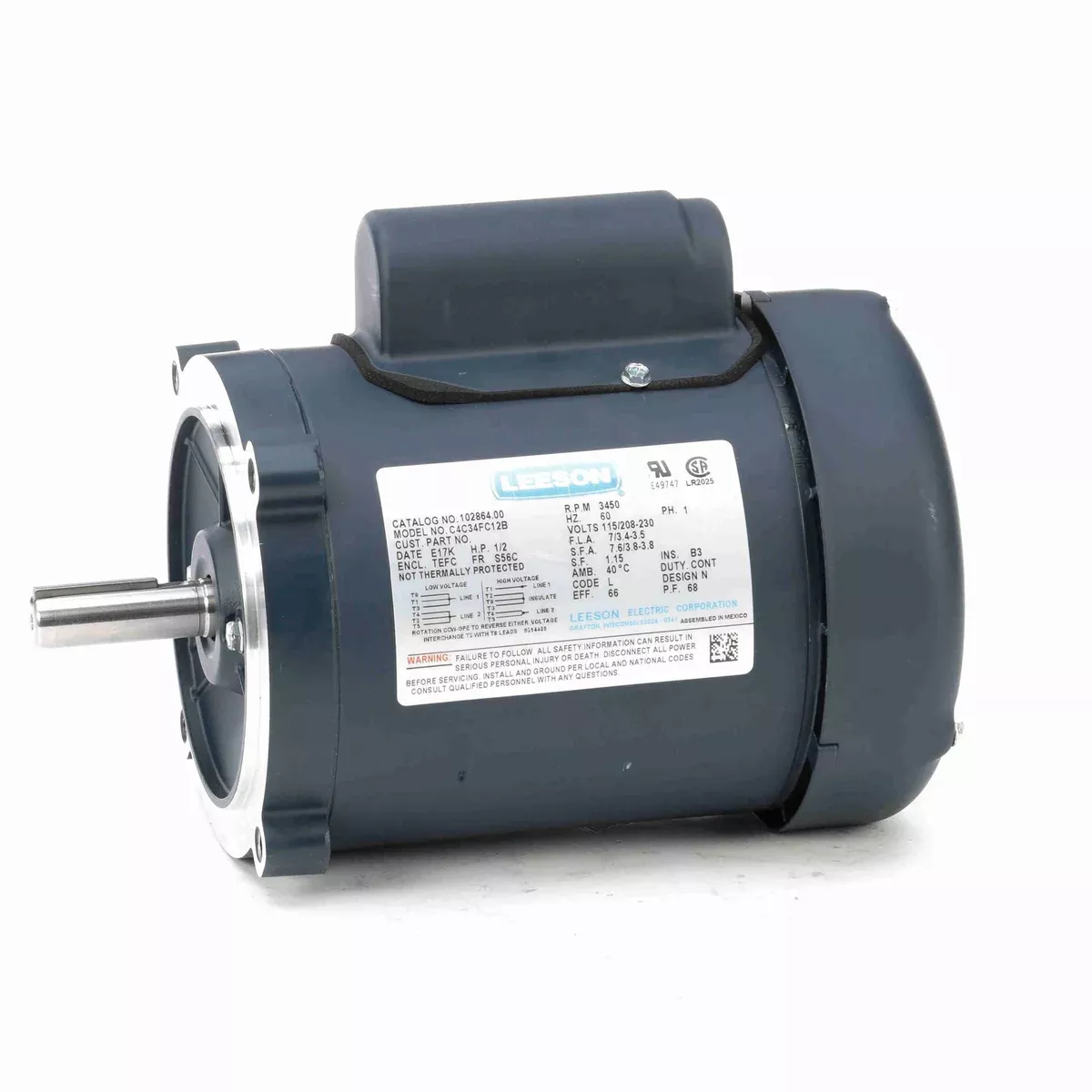

Leeson 102864.00 Capacitor Start General Purpose Motor
Original price was: $259.79.$174.81Current price is: $174.81.
