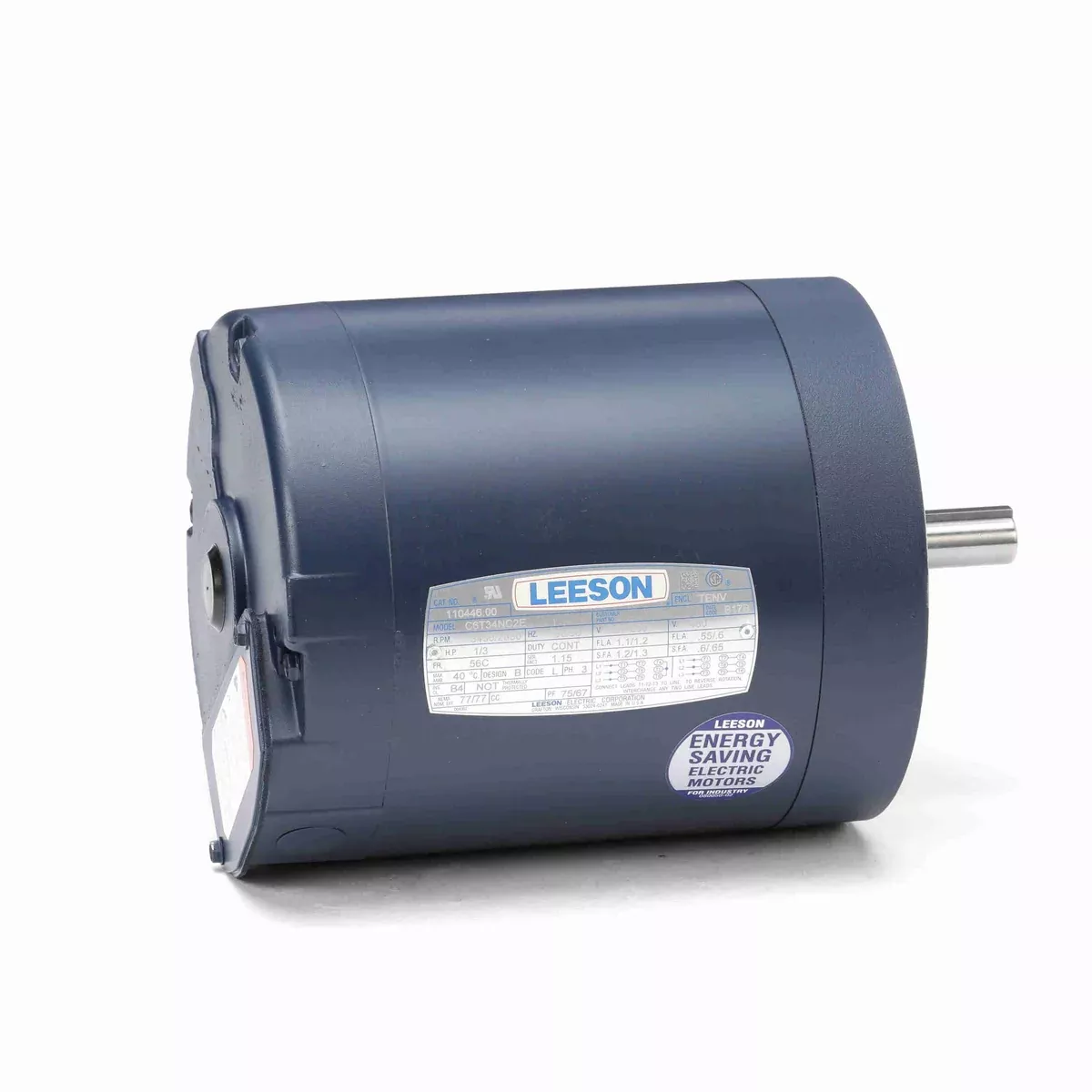

Leeson 110446.00 Three Phase General Purpose Motor

Original price was: $281.53.Current price is: $196.24.

Sale!
SKU: 110446 Category:
Share
  • Product Type: Three Phase
  • HP: 1/3
  • RPM: 3450
  • Volts: 208-230/460
  • Amps: 1.1/0.55
  • Hz: 60
  • Phase: 3
  • Frame: 56C
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Enclosure Material: Rolled Steel
  • Mounting: Round
  • Shaft Diameter: 0.625″
  • Shaft Length: 1.88″
  • Motor Shell Length: 5.00″
  • Overall Length: 9.90″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.15
  • Bearings: Ball
  • Efficiency: 77.0%
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Ship Weight: 23 lbs.
