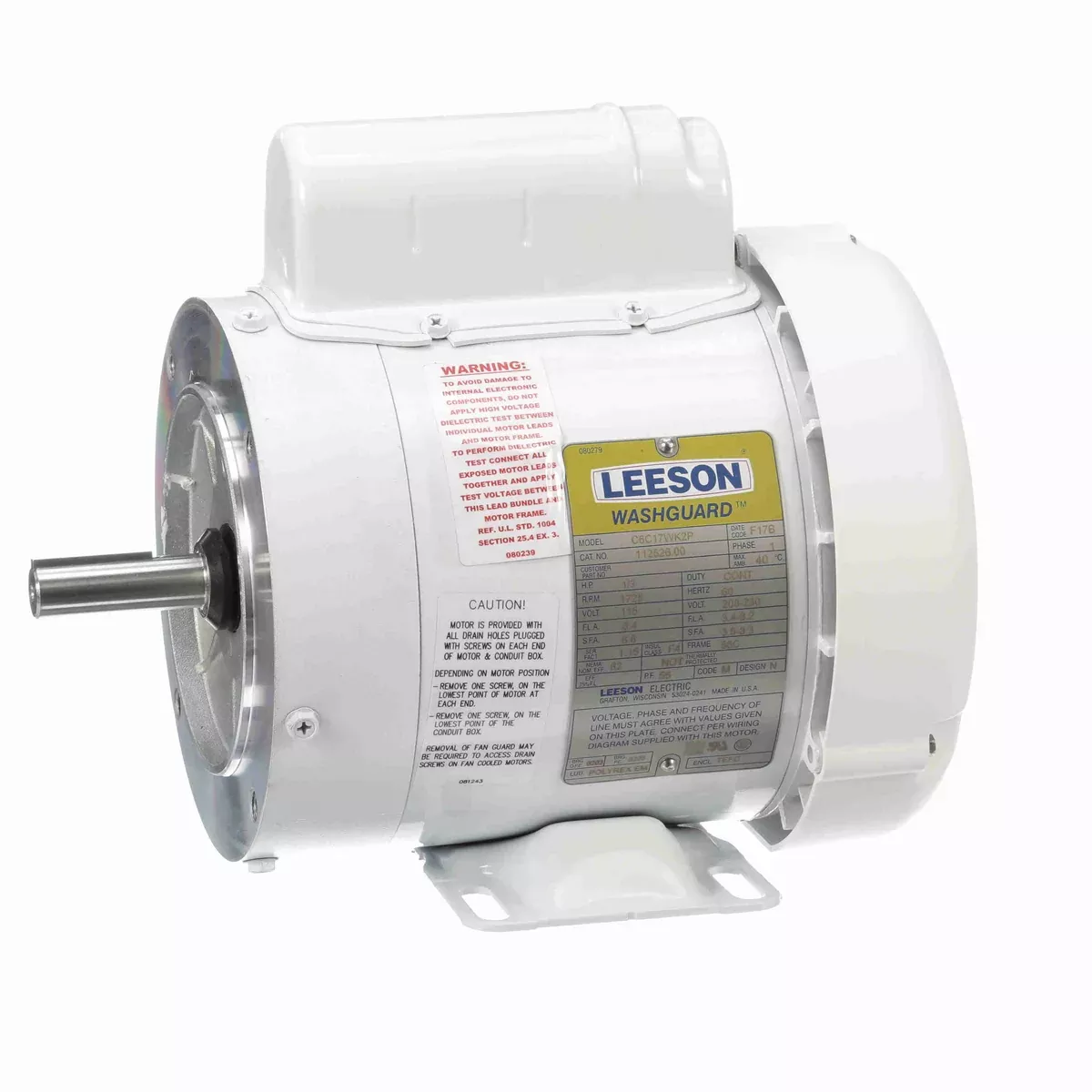

Leeson 112526.00 Capacitor Start General Purpose White Duck™ Washdown Duty Pump Motor

Original price was: $380.03.Current price is: $202.73.

Sale!
SKU: 112526 Category:
Share
  • Product Type: Capacitor Start
  • HP: 1/3
  • RPM: 1725
  • Volts: 115/208-230
  • Amps: 6.4/3.4-3.2
  • Hz: 60
  • Phase: 1
  • Frame: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Rolled Steel
  • Mounting: Rigid Base
  • Shaft Diameter: 0.625″
  • Shaft Length: 1.88″
  • Motor Shell Length: 4.50″
  • Overall Length: 10.37″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.15
  • Bearings: Ball
  • Efficiency: 62.0%
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Ship Weight: 24 lbs.
