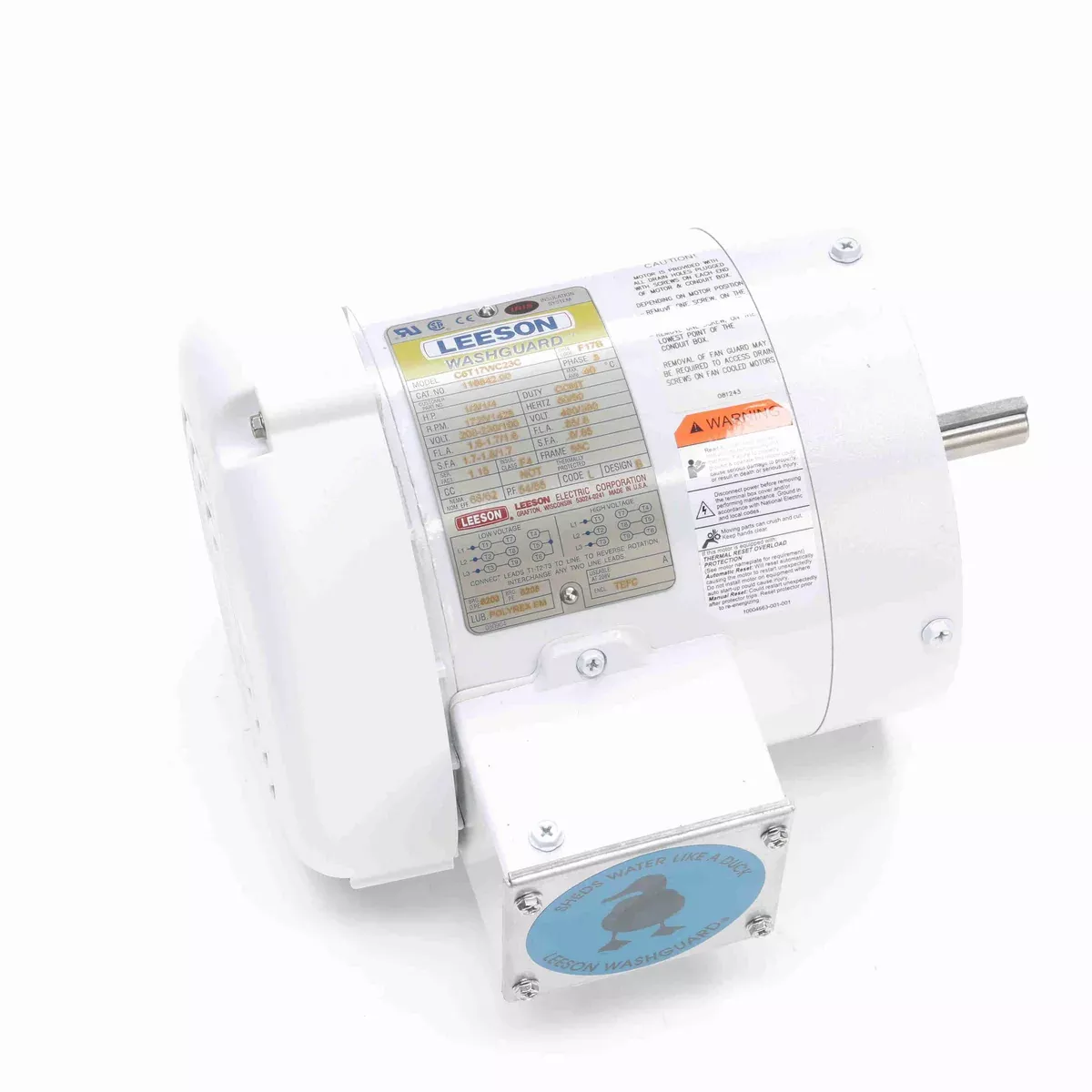

Leeson 116642.00 Three Phase General Purpose White Duck™ Washdown Duty Pump Motor

Original price was: $382.79.Current price is: $259.32.

Sale!
SKU: 116642 Category:
Share
  • Product Type: Three Phase
  • HP: 1/3
  • RPM: 1725
  • Volts: 208-230/460
  • Amps: 1.6-1.7/0.85
  • Hz: 60
  • Phase: 3
  • Frame: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Rolled Steel
  • Mounting: Round
  • Shaft Diameter: 0.625″
  • Shaft Length: 1.88″
  • Motor Shell Length: 4.50″
  • Overall Length: 10.37″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.15
  • Bearings: Ball
  • Efficiency: 68.0%
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Ship Weight: 19 lbs.
