Home » Shop » hot sale » Leeson 117281.00 Three Phase General Purpose Premium Duck™ Washdown Duty Pump Motor

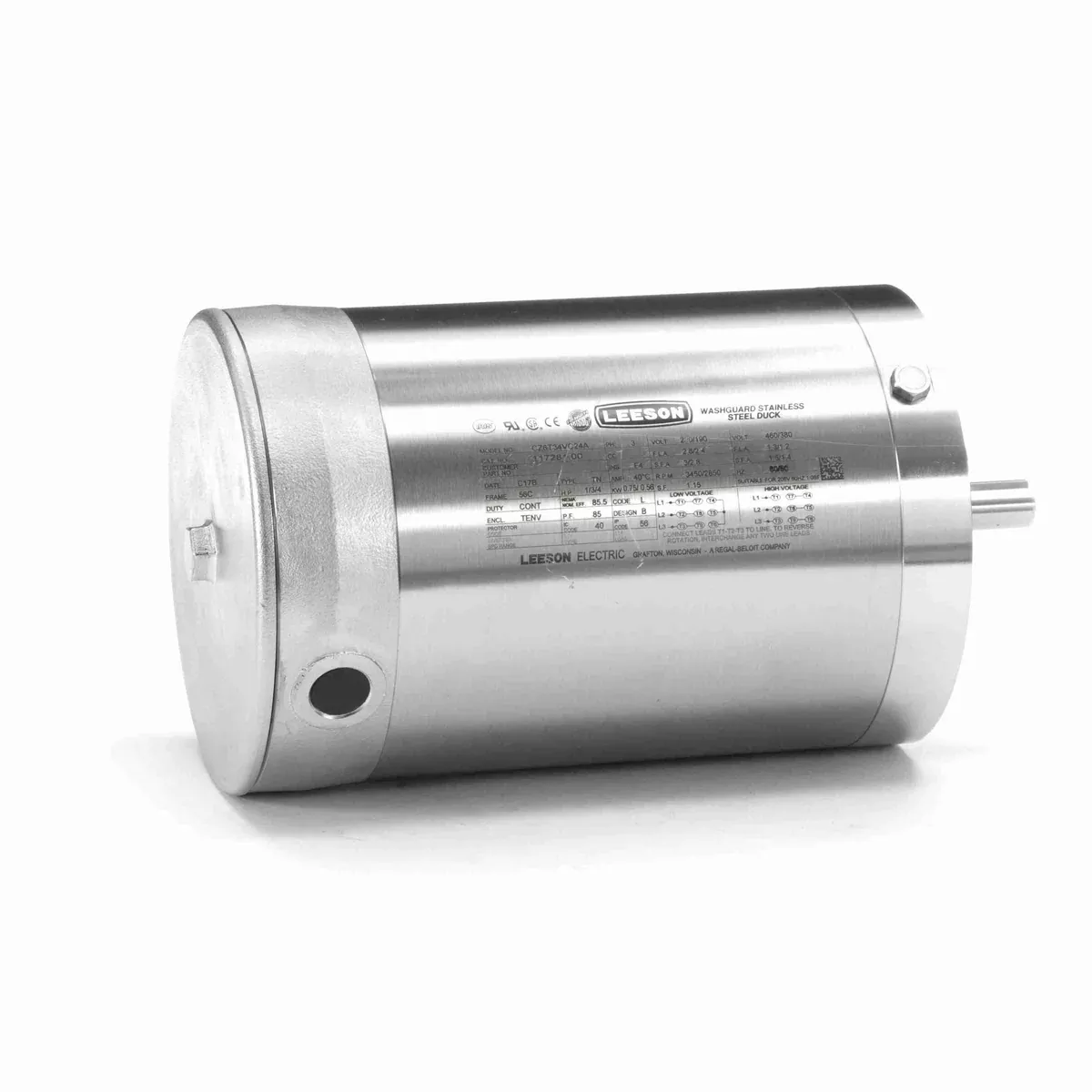

Leeson 117281.00 Three Phase General Purpose Premium Duck™ Washdown Duty Pump Motor

Original price was: $593.86.Current price is: $392.86.

Sale!
SKU: 117281 Category:
Share
  • Product Type: Three Phase
  • HP: 1
  • RPM: 3450
  • Volts: 230/460
  • Amps: 2.6/1.3
  • Hz: 60
  • Phase: 3
  • Frame: 56C
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Enclosure Material: Stainless Steel
  • Mounting: Round
  • Shaft Diameter: 0.625″
  • Shaft Length: 1.88″
  • Motor Shell Length: 7.00″
  • Overall Length: 12.22″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.15
  • Bearings: Ball
  • Efficiency: 85.5%
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Inverter Duty: Yes – Constant 6:1
  • Ship Weight: 43 lbs.
