Home » Shop » hot sale » Leeson 119482.00 Three Phase General Purpose White Duck™ Washdown Duty Pump Motor

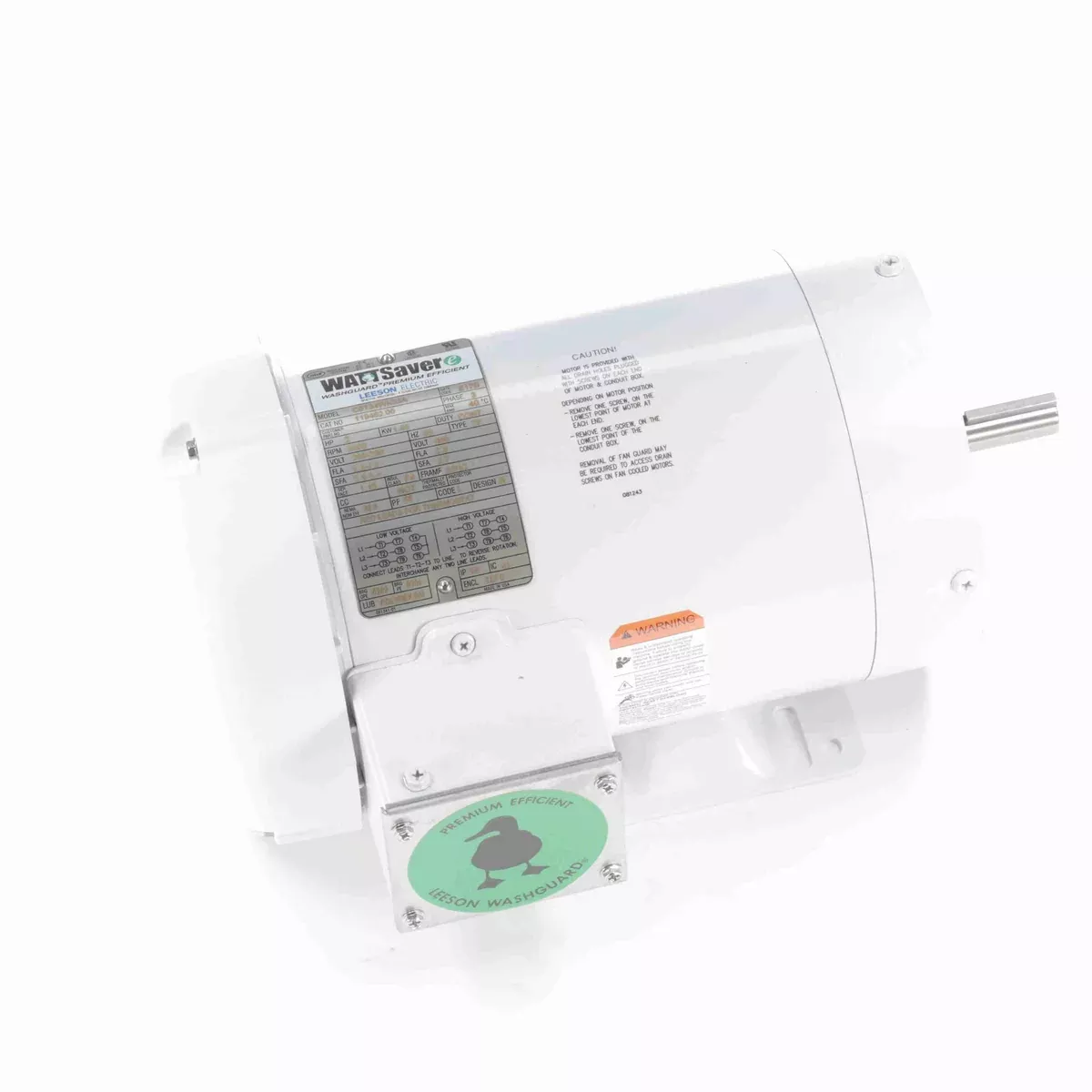

Leeson 119482.00 Three Phase General Purpose White Duck™ Washdown Duty Pump Motor

Original price was: $552.66.Current price is: $327.73.

Sale!
SKU: 119482 Category:
Share
  • Product Type: Three Phase
  • HP: 2
  • RPM: 3490
  • Volts: 208-230/460
  • Amps: 5.2-4.8/2.4
  • Hz: 60
  • Phase: 3
  • Frame: 56HC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Rolled Steel
  • Mounting: Rigid Base
  • Shaft Diameter: 0.625″
  • Shaft Length: 2.06″
  • Motor Shell Length: 7.50″
  • Overall Length: 13.37″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.15
  • Bearings: Ball
  • Efficiency: 85.5%
  • Thermal Protection: Thermostat
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Ship Weight: 44 lbs.
