Home » Shop » hot sale » Leeson A099261.00 PSC (Permanent Split Capacitor) General Purpose Farm Duty Motor

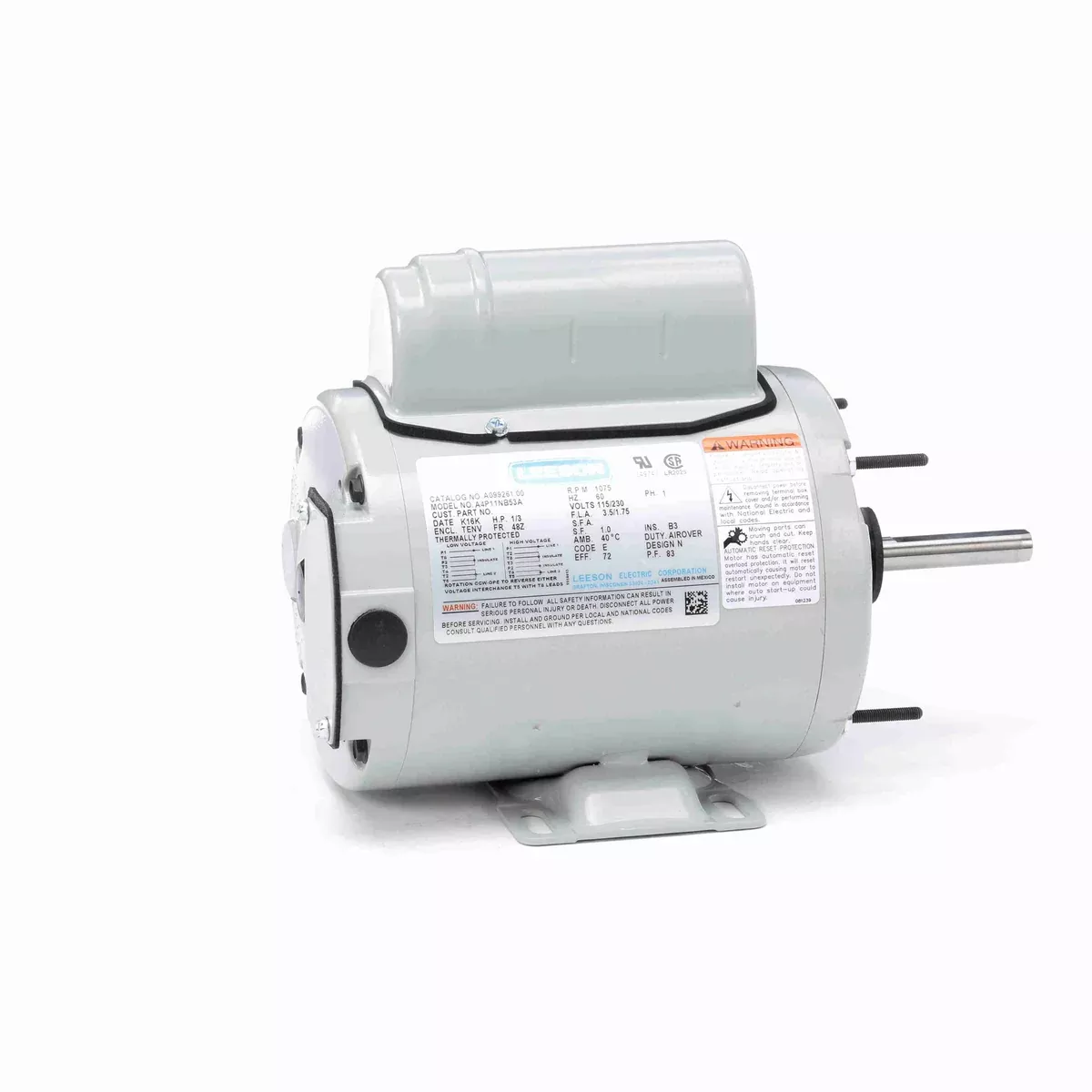

Leeson A099261.00 PSC (Permanent Split Capacitor) General Purpose Farm Duty Motor

Original price was: $271.91.Current price is: $158.01.

Sale!
SKU: A099261 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/3
  • RPM: 1075
  • Volts: 115/230
  • Amps: 3.5/1.8
  • Hz: 60
  • Phase: 1
  • Frame: 48Z
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Enclosure Material: Rolled Steel
  • Mounting: Rigid/Stud
  • Shaft Diameter: 0.500″
  • Shaft Length: 2.24″
  • Motor Shell Length: 5.75″
  • Overall Length: 10.90″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.0
  • Bearings: Ball
  • Efficiency: 72.0%
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Ship Weight: 22 lbs.
