- Amps: 23.6/11.8
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.902
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 215TC
- HP: 10
- Hz: 60
- Insulation Class: F
- Manufacturer Model : 215TTFWD16010
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 9.65″
- Mounting Orientation: Horizontal
- Mounting: Face
- Number of Speeds: 1
- Overall Length: 19.46″
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3525
- Service Factor: 1.15
- Shaft Diameter: 1-3/8″
- Shaft Length: 3.12″
- Volts: 230
- Volts: 460
- Ship Weight: 110 lbs.

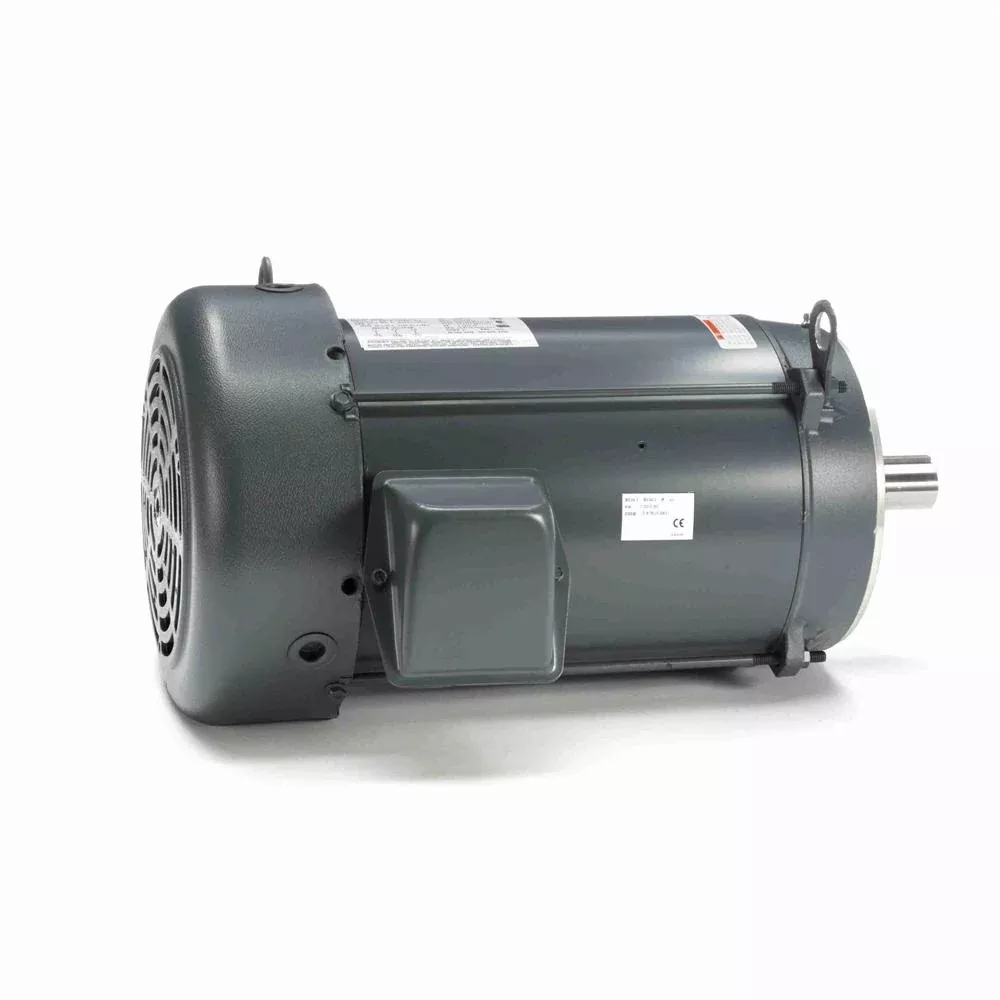

Marathon C206BGeneral Purpose Motor – C206B
Original price was: $770.63.$592.96Current price is: $592.96.
