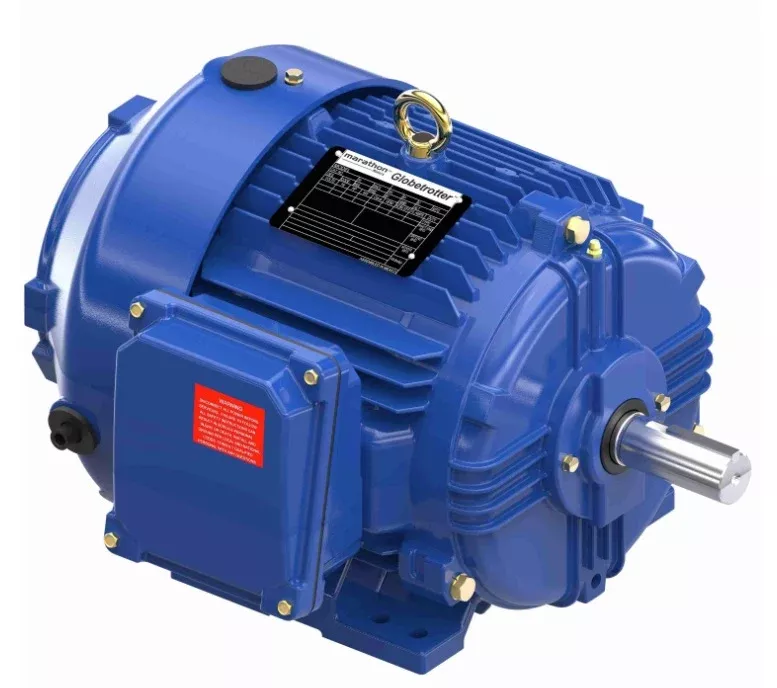

Marathon E617A 5 HP 3-Phase 1800 RPM 184T Severe Duty Motor – E617A

Original price was: $429.19.Current price is: $275.17.

Sale!
SKU: E617A Category:
Share
  • 5 HP
  • 3 Phase
  • 1755 RPM
  • 460 Volt
  • 6.5 Amps
  • 1.15 Service Factor
  • 60 Hz
  • 184T Frame
  • Severe Duty, Division 2 T2B
  • Blue Chip Series XRI
  • Totally Enclosed Fan Cooled (TEFC)
  • No Thermal Protector
  • 89.5% Efficiency
  • Insulation Class H
  • 40C Ambient
  • Ball Bearing
  • Frame Material: Cast Iron
  • Rotation: Reversible
  • Mounting: Rigid Base
  • Assembly/Box Mounting: F1 (F2 Capable)
  • Inverter Load: Constant 20:1 / Variable 10:1
  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • 100% cast iron construction for rigidity and reduced vibration
  • Meets IEEE45 USCG Marine Duty,Meets Ford EM1 Automotive Duty Specification
  • MAX GUARD® Class H insulation system
  • IP55 protection
  • Constant Torque for inverter duty
  • Sintered bronze breather with brass drain & breather
  • Bearing caps, Precision balanced to .08”/sec
  • Internal and External Epoxy Finish
  • Continuous Duty
  • Replaces Marathon cat E617
  • Ship Weight: 130 lbs.
