- Amps: 2.7-2.8/1.4
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.77
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 56
- HP: 3/4
- Hz: 60
- Insulation Class: F
- Manufacturer Model : 056T17W5340
- Maximum Ambient Temperature: 40° C
- Motor Diameter: 6-1/2″
- Motor Shell Length: 5.5″
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 10.78″
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1725
- Service Factor: 1.15
- Shaft Diameter: 5/8″
- Shaft Length: 1.94″
- Volts: 208
- Volts: 230
- Volts: 460
- Ship Weight: 25 lbs.

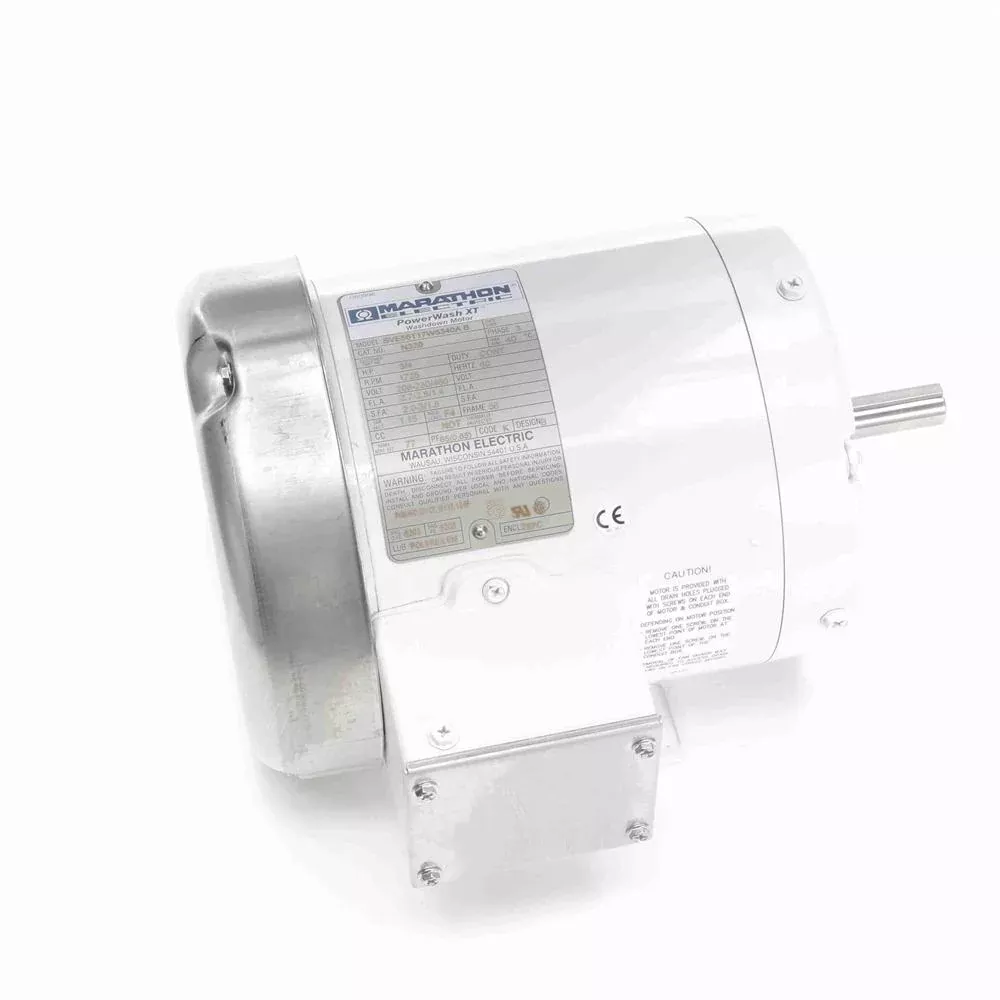

Marathon N3206-1/2″ Diameter Washdown Duty Motor – N320
Original price was: $249.82.$145.95Current price is: $145.95.
